D-500 MK2 User Manual Firmware V-6.3

- 145 -

Below is a table showing the tripping delay in function of the percent load level (with TMS=36):

100% unlimited 170% 73s 240% 18s

110% 3600s 180% 56s 250% 16s

120% 900s 190% 44s 260% 14s

130% 400s 200% 36s 270% 12s

140% 225s 210% 30s 280% 11s

150% 144s 220% 25s 290% 10s

160% 100s 230% 21s 300% 9s

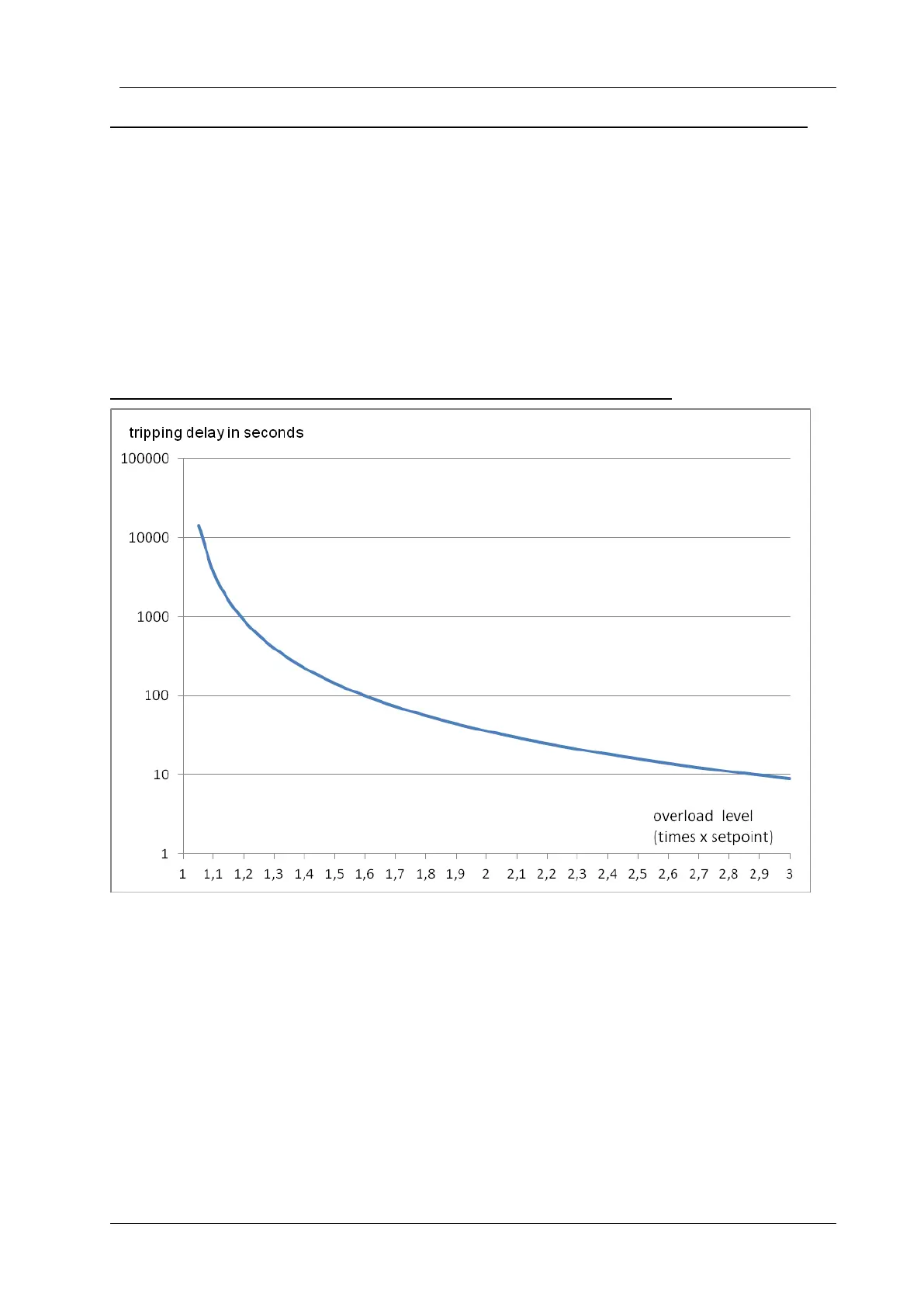

Below is the tripping delay curve in function of the load level (with TMS=36):

Table of Contents6
Installation Instructions11
Mounting12
Dimensions12
Sealing, Gasket15
Electrical Installation16
Terminal Descriptions17
Battery Voltage Input17
Ac Voltage Inputs18
Ac Current Inputs19
Digital Inputs22
Analog Sender Inputs and Sender Ground22
Charge Input Terminal23
Magnetic Pickup Input23
Digital Outputs24
Mains Contactor Output24
Generator Contactor Output24
Input/Output Extension25
J1939-Canbus Port26
Usb Device Port26
Plug-In Modules27
Modem Plug-In28
Gsm Modem Slot28
Wi-Fi SLOT29
Ethernet Slot30
Slot31
Synchronization Plug-In32
Analog Avr Control Output32
Analog Governor Control Output32
Datalink-Canbus Port33
Analog Load Share Signal34
Analog Plug-In34
Analog I/O Extension Slot34
Mains Ct Inputs Slot35
Communication Slot36
Ethernet Port36
Usb Host Port37
Port38
Topologies39
Selecting the Topology39
Phase, 4 Wire, Star40
Phase, 3 Wire, Delta40
Phase, 4 Wire, Delta41
Phase, 3 Wire, Delta, 2 Ct (L1-L2)41
Phase, 3 Wire, Delta, 2 Ct (L1-L3)42
PHASE, 3 WIRE, DELTA, 2 Cts (L1-L2)42
PHASE, 3 WIRE, DELTA, 2 Cts (L1-L3)43
Phase, 2 Wire43
Functionalities44
Ct Location Selection44
Synchronization Functionality45
Mains Synchronization Functionality46
Single Genset Parallel with Mains47
Amf Functionality48
Ats Functionality48
Remote Start Functionality49
Engine Controller Functionality50
Remote Display Unit Functionality51
400Hz Operation52
Connection Diagrams53
Genset Synchronization Functionality53
Mains Synchronization Functionality54
Amf Functionality56
Ats Functionality57
Remote Start Functionality58
Engine Control Functionality59
Remote Display Panel Functionality60
Terminal Description61
Technical Specifications66
Description of Controls67
Front Panel Functionality67
Pushbutton Functions68
Display Screen Organization70
Automatic Display Scroll71
Measured Parameters73
Led Lamps74
Waveform Display & Harmonic Analysis75
Displaying Event Logs77
Statistical Counters79
Fuel Filling Counter79
Fuel Consumption Monitoring80
Operation of the Unit81
Quick Start Guide81
Stop Mode81
Auto Mode82
Run Mode, Manual Control83
Test Mode84
Protections and Alarms85
Disabling All Protections86
Service Request Alarm86
Shutdown Alarms87
Loaddump Alarms88
Warnings90
Non-Visual Warnings92
Programming93
Resetting to Factory Defaults93
Entering the Programming Mode94
Navigating between Menus95
Modifying Parameter Value96
Programming Mode Exit97
Program Parameter List98
Controller Configuration Group98
Electrical Parameters Group104
Engine Parameters Group111
Adjust Date and Time119
Weekly Operation Schedule120
Exerciser Schedule121
Sender Configuration122
Digital Input Configuration124
Output Configuration126
Site ID String128
Engine Serial Number128
Modem1-2/Sms1-2-3-4 Telephone Numbers128
Gsm Modem Parameters129
Ethernet Parameters131
Sntp Parameters132
Wi-Fi PARAMETERS132
Synchronization Parameters133
Ethernet Configuration140
Wi-Fi CONFIGURATION141
Gsm Configuration142
Crank Cutting143
Overcurrent Protection (Idmt)144
Motorized Circuit Breaker Control146
Auto Learning148
Speed & Voltage Up/Down Relay Outputs151
Speed Up/Down Control151
Voltage Up/Down Control151
J1939 Canbus Engine Support152
Gps Support156
Sms Commands158
Load Transfer Modes160
Transfer with Interruption160
Uninterrupted Transfer161
Soft Transfer162
Load Sharing163
Digital Load Sharing (Datalink)164
Analog Load Sharing165
Droop Mode Operation166
Peak Lopping167
Power Export to Mains168
Distributed Power Export to Mains169
Peak Lopping with Genset Priority170
Protection Functions Paralleling with Mains171
ROCOF FUNCTION (Rate of Change of Frequency)171
Vector Shift Function171
Over/Under Frequency Function172
Over/Under Voltage Function172
Mains Reverse Power Function172
Frequency Function172
Data Recording173
Data Recording Media173
Directory Structure174
Understanding the Csv Format174
Recorded Data List, Record Period175
Software Features176
Load Shedding / Dummy Load176
Load Add / Substract177
Five Step Load Management178
Remote Start Operation179
Disable Auto Start, Simulate Mains179
Battery Charging Operation, Delayed Simulate Mains180
Dual Genset Mutual Standby Operation181
Multiple Voltage and Frequency182
Single Phase Operation182
External Control of the Unit182
Automatic Exerciser183
Weekly Operation Scheduler183
Engine Heating Operation184
Engine Idle Speed Operati̇on184
Engine Block Heater184
Fuel Pump Control185
Gas Engine Fuel Solenoid Control185
Pre-Transfer Signal185
Charging the Engine Battery186
Externally Controlled Digital Outputs186
Combat Mode186
Resetting the Controller187
Automatic Connection Topology Determination187
Zero Power at Rest188
Modbus Communications189
Parameters Required for Rs-485 Modbus Operation190
Parameters Required for Modbus-Tcp/Ip Via Ethernet190
Data Formats190
Snmp Communications193
Parameters Required for Snmp Via Ethernet194
Snmp Trap Messages194
Declaration of Conformity195
Maintenance195
Disposal of the Unit195
Rohs Compliance195
Troubleshooting Guide196
