Structure:
Non-isolated analog input & output, 0-10 VDC
Reference:
Battery negative
Output Impedance:
1000 ohms
Precision:
12 bits
Rest point:
Adjustable through program parameter
Sweep Range:
Adjustable through program parameter
Analog I/O extension plug-in module with 3 analog inputs. Each analog input can be switched by DIP
switches for:
-Resistive,
-4 to 20 mA
-0 to 10 Vdc
The main configuration of the inputs is done
with DIP switches located on slot.
SND 8 cannot be switched to resistive input. The
configuration can be 4-20 mA or 0-10 VDC.
Analog outputs will be functional with further
firmware version.

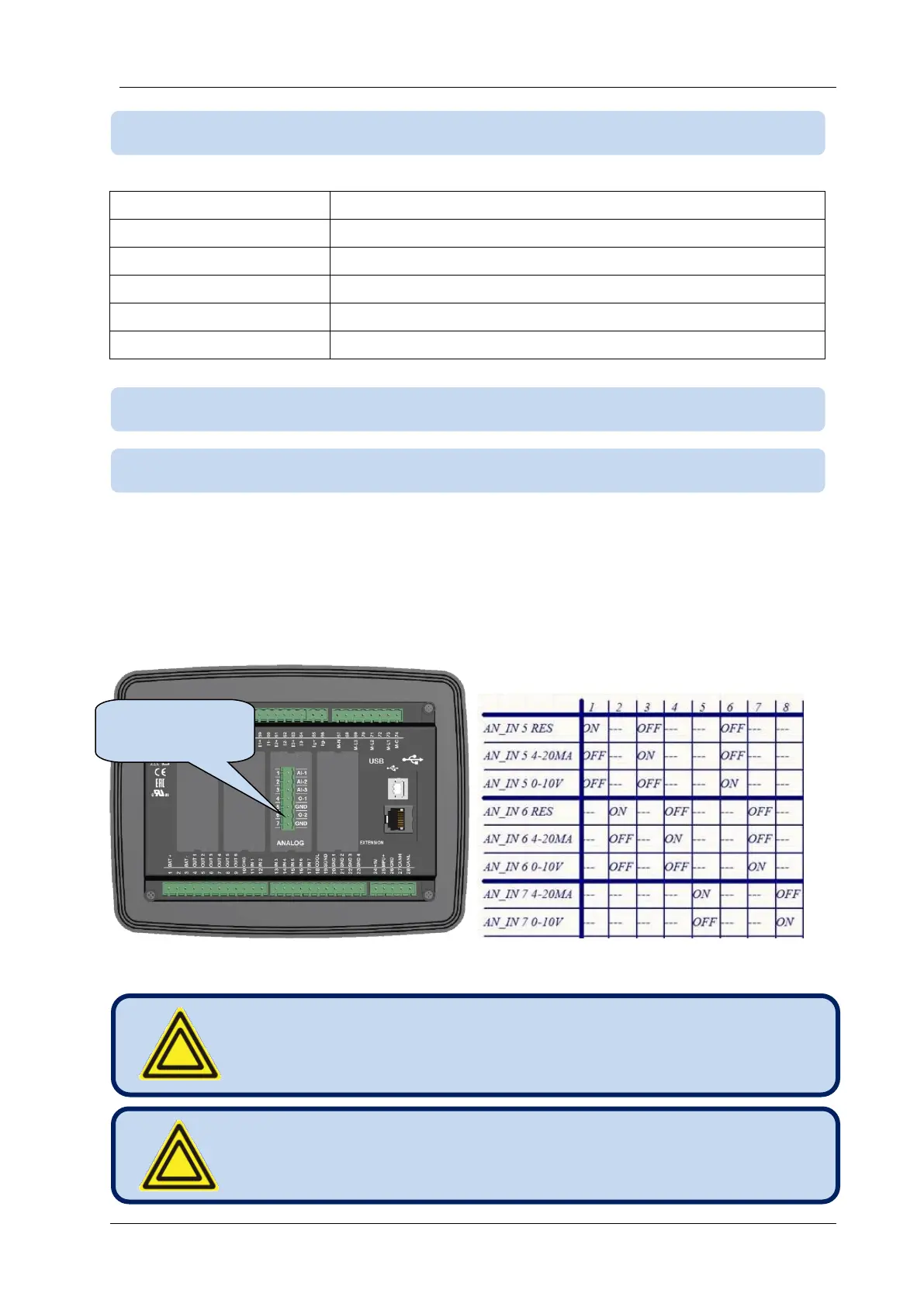

4.3.1. ANALOG I/O EXTENSION SLOT
4.3. ANALOG PLUG-IN
4.2.4. ANALOG LOAD SHARE SIGNAL
Analog I/O
Extension slot
