D-500 MK3 User Manual Firmware V-14.2

- 157 -

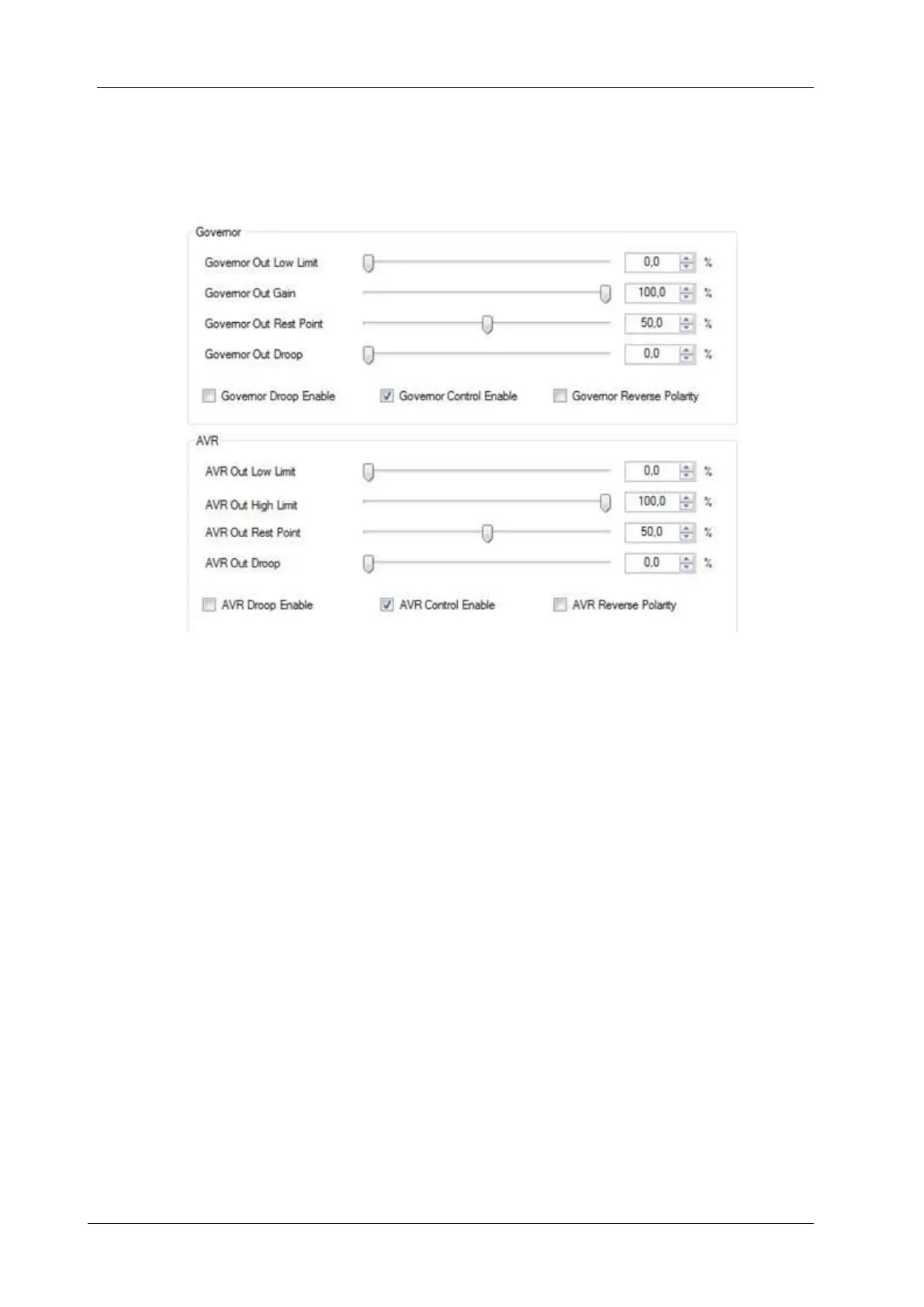

Stop the generator and enter programming > synchronization parameters.

▪ Enable Gov control enable parameter.

▪ Enable AVR control enable parameter.

Next step will be auto learning.
