Datakom D-500 MK3 - Synchronization Plug-In; Analog Avr Control Output; Analog Governor Control Output

D-500 MK3 User Manual Firmware V-14.2
- 33 -
Structure:
Isolated analog output, ±3 VDC
Connection:
2 wires
Output Impedance:
270 ohms
Isolation Voltage:
1000 VAC, 1 minute
Precision:
12 bits
Rest point:
Adjustable through program parameter
Sweep Range:
Adjustable through program parameter
Structure:
Isolated analog output, 0-10 VDC
Reference:
Battery negative
Output Impedance:
1000 ohms
Precision:
12 bits
Rest point:
Adjustable through program parameter
Sweep Range:
Adjustable through program parameter
4.2.2. ANALOG GOVERNOR CONTROL OUTPUT
4.2.1. ANALOG AVR CONTROL OUTPUT
4.2. SYNCHRONIZATION PLUG-IN

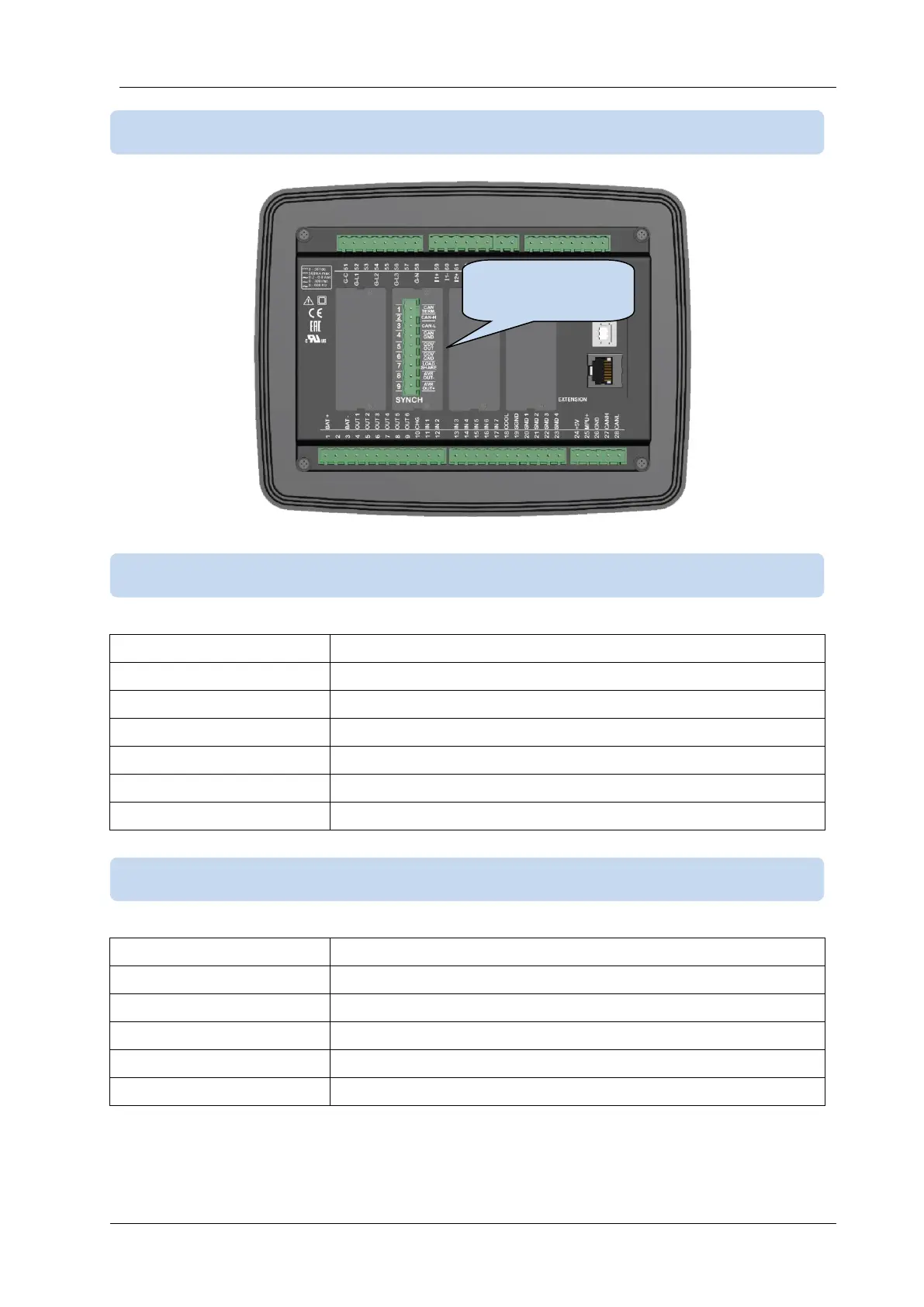

Synchronization
Slot
