Voltage inputs:
Measurement method:
Isolated DC voltage measurement
Sampling rate:
100K s/s
Input voltage range:
0 to 70 VDC
Measurement range:
0 to 70 VDC
Input impedance:
215 K-ohms
Display resolution:
0.1VDC
Isolation:
500VAC, 1minute
Accuracy:
0.5% + 1 digit (±0.35V@50VDC)
Current input:
Measurement method:
Isolated DC voltage measurement
Sampling rate:
100K s/s
Input voltage range:
0 to 100 mVDC
Measurement range:
0 to 100 mVDC
Input impedance:
1000 ohms
Isolation:
500VAC, 1minute
Accuracy:
0.5% + 1 digit (±0.6A@100ADC)
Current shunt range:
1A/60mV to 5000A/60mV
Display resolution:
0.1ADC (shunt < 250A/60mV)
1ADC (shunt > 250A/60mV)

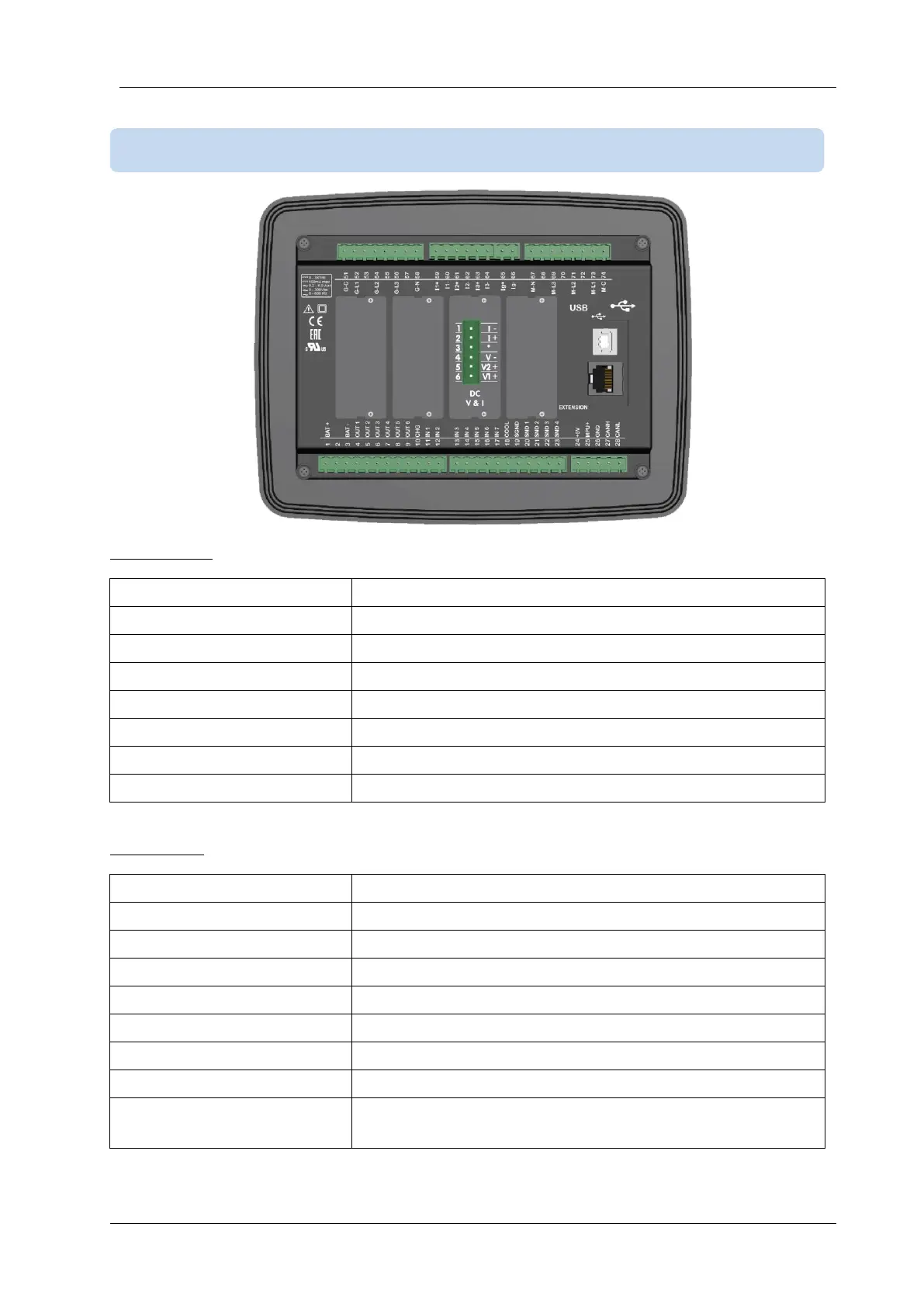

4.3.3. DC VOLTAGE & CURRENT SLOT
