D-500 MK3 User Manual Firmware V-14.2

- 13 -

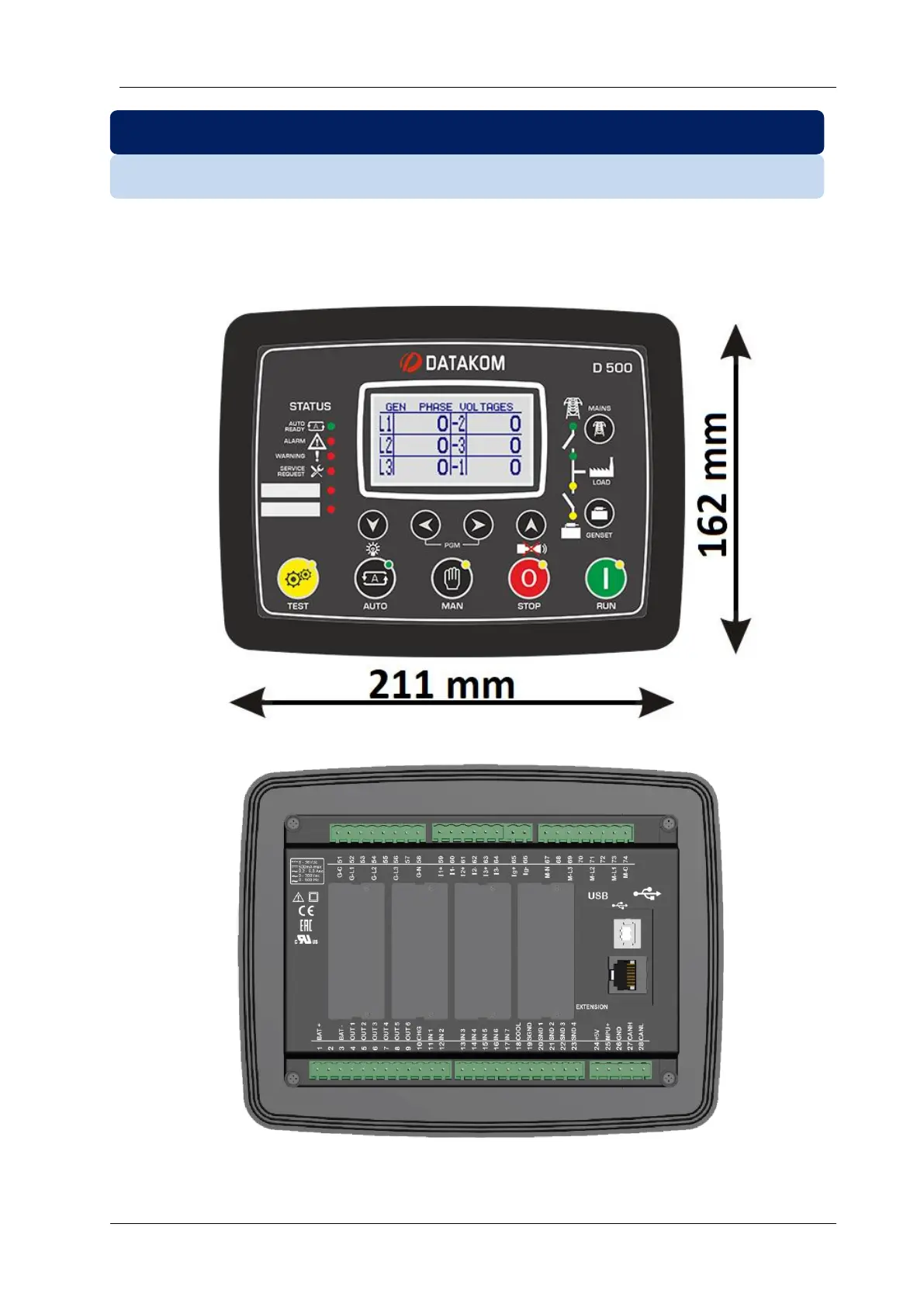

Dimensions: 211x162x42mm

Panel Cutout: 176x121mm minimum

Weight: 500g (approx..)

2.1. DIMENSIONS

2. MOUNTING
