Datalogic DS2400 User Manual

DS2400
6
2
2.2 MECHANICAL INSTALLATION
DS2400 can be installed to operate in different positions. The four screw holes (M4 x
5) on the body of the reader are for mechanical fixture (Figure A, 8). The diagrams
below give the overall dimensions of the scanner and mounting bracket and may be
used for installation.
Refer to par. 2.5 for correct positioning.
A
B
bottom view
MOUNTING BRACKET
DS2400
mm
in

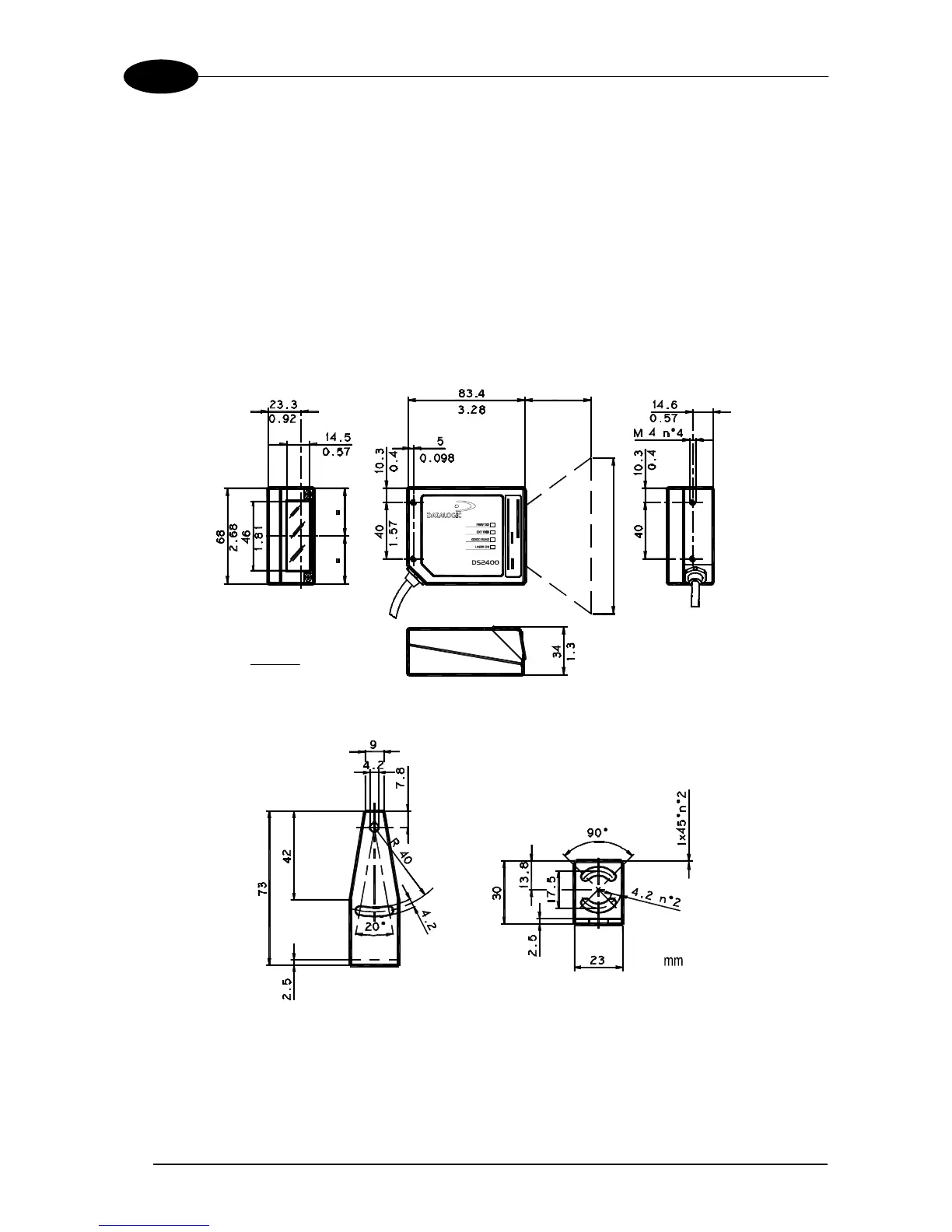

Figure 3 - DS2400 Overall dimensions
