2.3 JUNCTION BOX INSTALLATION
The Junction Box provides a passive connection between your scanner and the
outside world in a fast and practical way. It represents an alternative to the 25-pin
connectors. Figure 4 shows the basic layout of a scanner using the junction box.
LASER ON
PWR/TXD
EXT TRI G
GOOD READ
DS2400
Figure 4 - Scanner using Junction Box
For Junction Box connections, the scanner has a cable that terminates in a 24-pin
connector that plugs into the junction box. The system cables pass through 6 glands
in the side of the Junction Box and the individual wires connect to spring clamp
terminal blocks inside which provide access to all scanner signals.
2.3.1 Junction Box Mounting

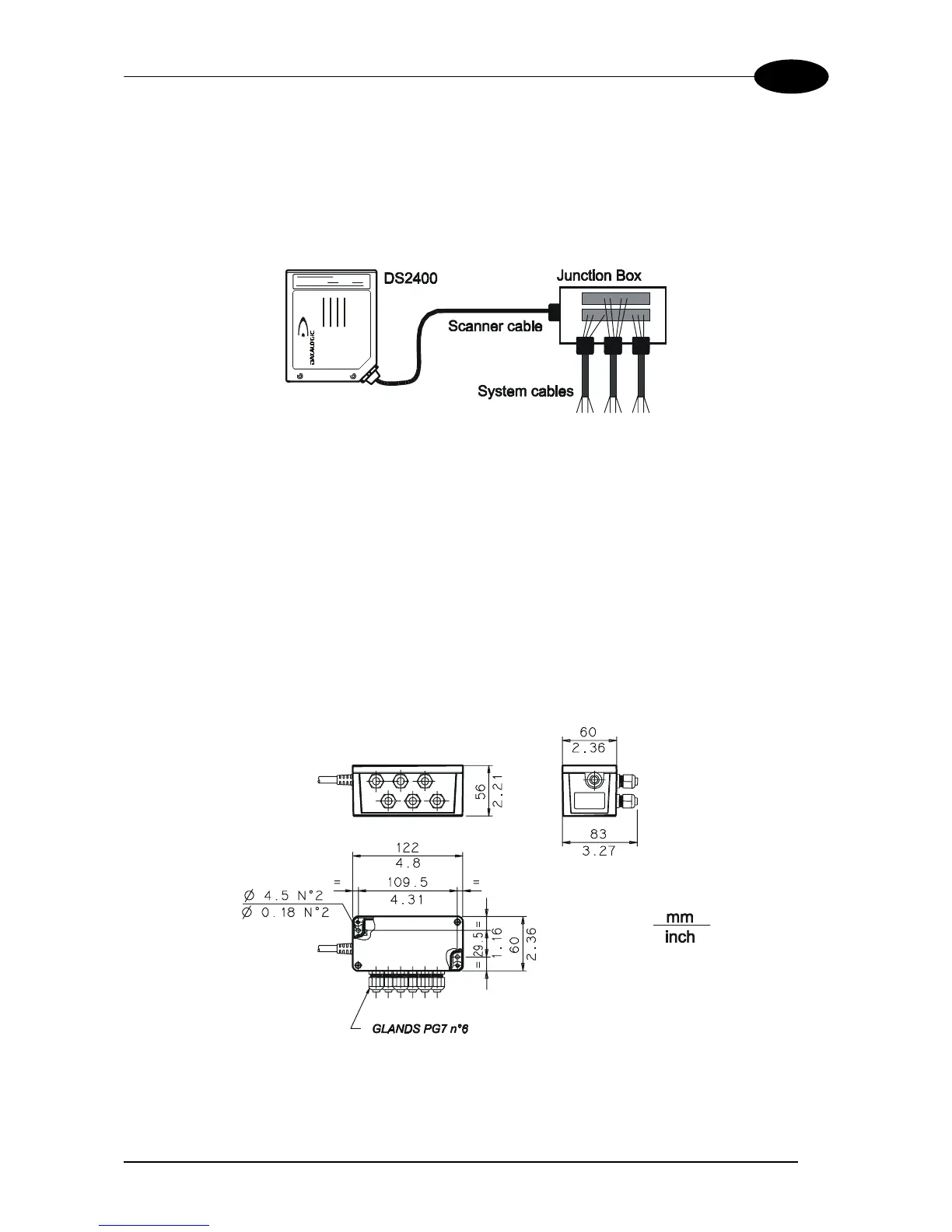

The diagram below shows the dimensions of the Junction Box and its relative
mounting holes.
Figure 5 - Junction Box Overall dimensions
