The Junction Box is designed to be mounted to a panel of metal, plastic or other
appropriate material using the mounting screws provided in the package. To do this:
1) Open the junction box by unscrewing the 4 cover screws. If necessary, using the
two mounting holes inside the junction box as a pattern, mark the panel with an
appropriate object and then drill two small pilot holes in the panel.

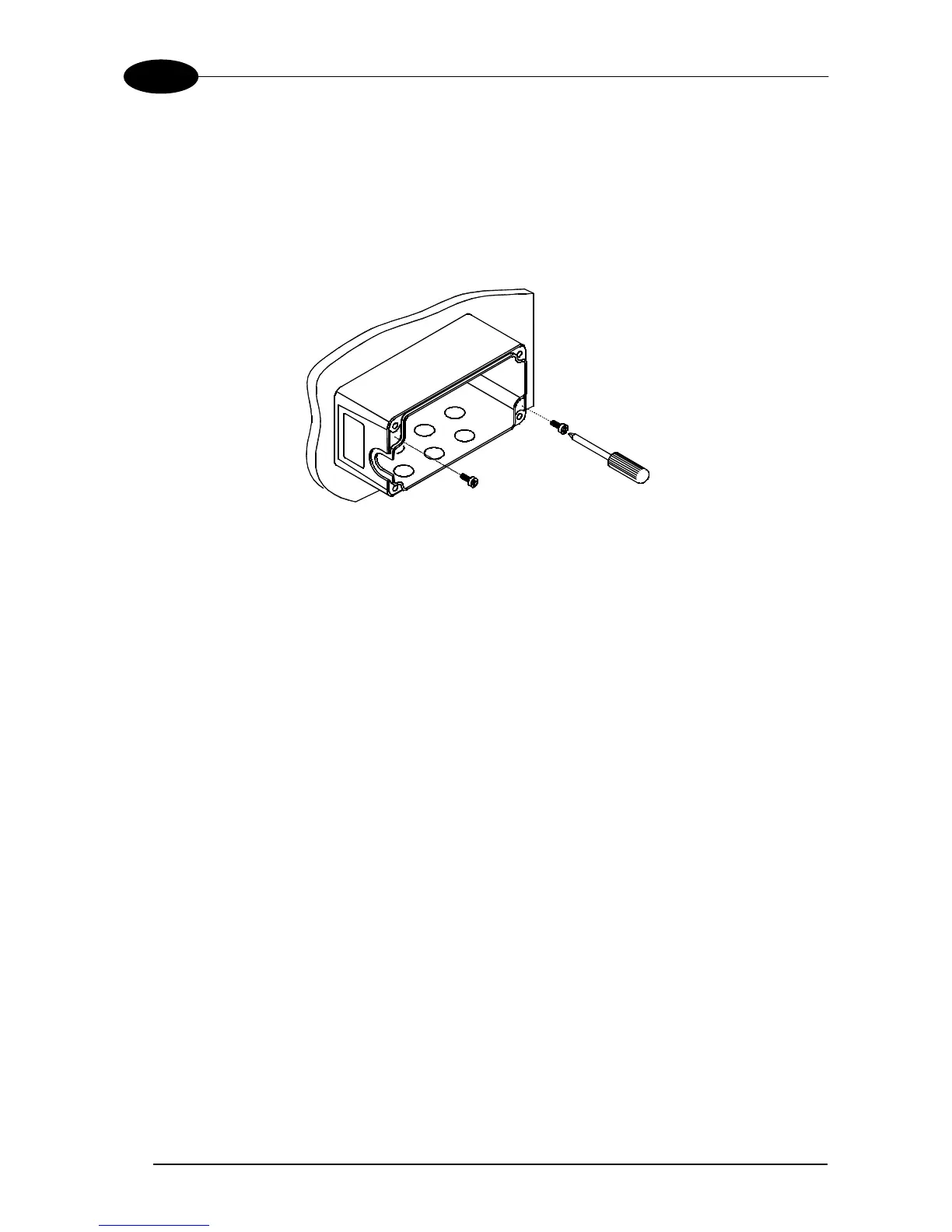

Figure 6 - Mounting Junction Box
2) Align the junction box and insert the two self-threading screws with their washers
and screw them into the panel until tight (see Figure 6).
