Datalogic DS2400 User Manual

DS2400
32
3

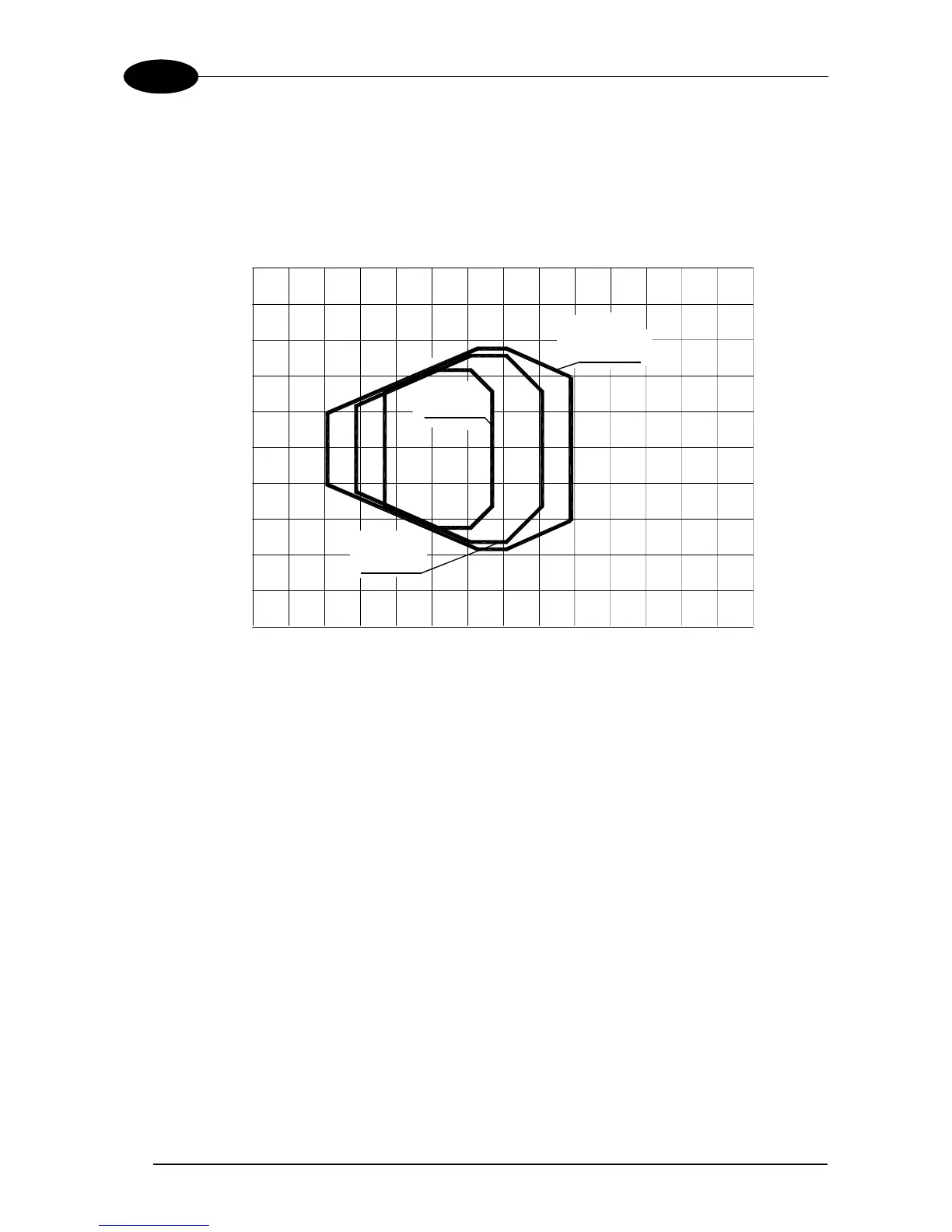

3.4 READING DIAGRAMS
DS2400-1XXX
(Medium Reading Range)
0
20
cm
15
10
5
15
5
10
20
10 20 30
40 50 60 70 cm
6
8
in
2
4
0
2
4
6
8
4
12
8
2416
20
28 in
≥0.50 mm
(20 mils)
0.25 mm
(10 mils)
0.35 mm
(14 mils)
Note: (0,0) is the center of the laser beam output window.
CONDITIONS
Code = Interleaved 2/5 or Code 39
PCS = 0.90
"Pitch" angle =
0°
"Skew" angle =
10°
"Tilt" angle =
0°
Code Resolution* = High – for 0.25 mm (10 mils) codes and
0.35 mm, (14 mils) codes
Standard – for 0.50 mm (20 mils) codes and
greater
Code Reading Condition* = Standard
Scanning Speed* = Speed_3 (800 scans/sec)
* Parameters selectable in WinHost.
