This input is optocoupled and can be driven by both an NPN or PNP type command.

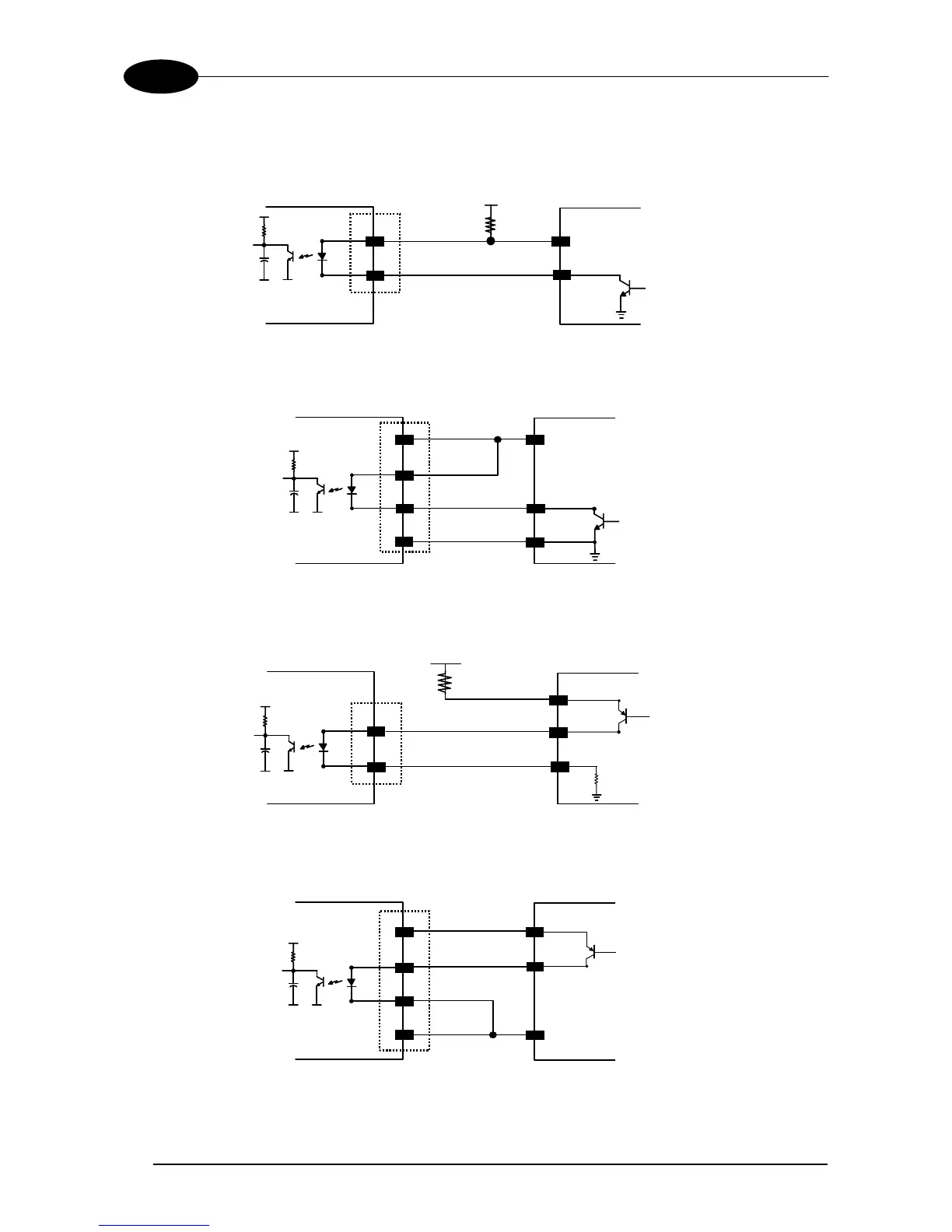

The connections are indicated in the following diagrams:
EXT TRIG+
18
19
+ 5V
DS2400
EXTERNAL TRIGGER
Signal
V
30 Vdc max.
Vext
EXT TRIG-
Figure 20 - Input NPN command using external power
EXTERNAL TRIGGER
DS2400
Signal
18
19
+ 5V
VS
9
25
GND
Ground
V
EXT TRIG+
EXT TRIG-
Figure 21 - Input NPN command using DS2400 power
18
19
+ 5V
DS2400 EXTERNAL TRIGGER
30 Vdc max.
Vext
V
Signal
Ground
EXT TRIG+
EXT TRIG-
Figure 22 - Input PNP command using external power
EXTERNAL TRIGGER
DS2400
18
19
+ 5V
VS
9
25
GND
Ground
V
Signal
EXT TRIG+
EXT TRIG-
Figure 23 - Input PNP command using DS2400 power
