Product Reference Guide A-3
Good Read
Indication
a
Scanner (Green) LED - bright flash
Indicates a bar code has been read and decoded.
Program Mode
Indication
Scanner (Green) LED - Continuous
flashing
Indicates the scanner is in Label Programming
Mode. Cycle power to exit Programming Mode.
Sleep Mode
Indication
Scanner (Green) LED flashes slowly
The scanner motor and/or laser have automati-
cally switched off and the unit has entered Sleep
Mode due to extended inactivity.
Host Disabled
Scanner (Green) LED 1-second off, 1/
10-second on
Host has disabled scanning.
Field Replace-
able Unit (FRU)
Warning (Error
Mode)
Audible low tone 1 second. LED
flashes continuously.
Serves notice that a fatal FRU failure has been
detected. Call systems support for service.
FRU Indication
Scanner (Green) LED flashes a
coded sequence in concert with the
speaker.
Occurs ONLY upon Volume/Tone button push fol-
lowing a FRU warning. Enables service techni-
cians to identify FRU failures.
a. Certain functions of the LED is selectable to be enabled or disabled. Your scanner may not be pro-
grammed to display all indications.

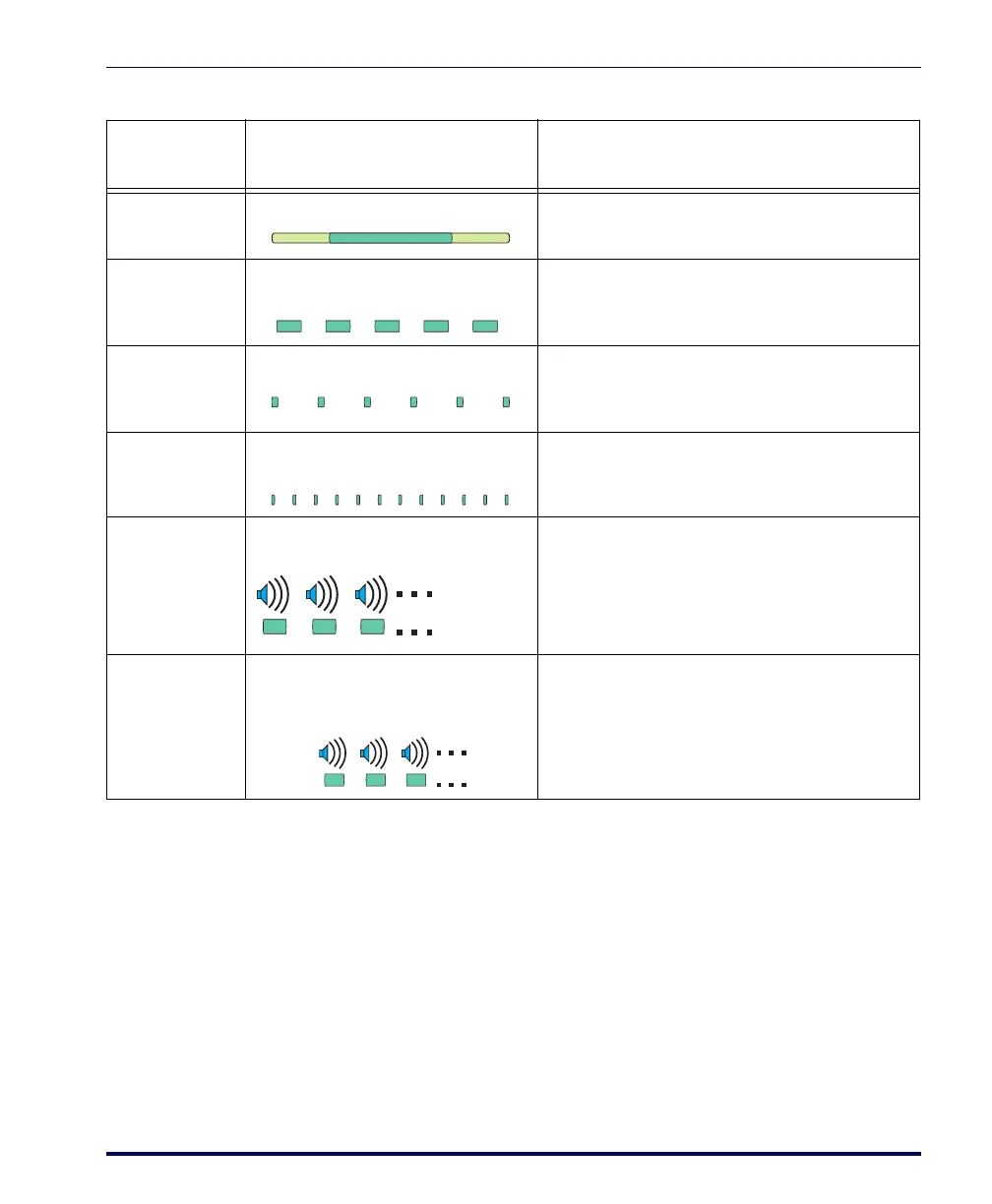

Table A-2. Green LED Indications
LED
INDICATION
DURATION COMMENT
