Datalogic PowerScan PD96 Series - MSI Set Length 1; MSI Set Length 2

ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES
188 POWERSCAN™ PD/PM96XX
MSI Set Length 1
This feature specifies one of the bar code lengths for "MSI Length Control" on page 187.
Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length
if in Fixed Length Mode. Length includes the bar code’s data characters only.
The length can be set from 1 to 50 characters. See "
Set Length 1" on page 301 for more
detailed programming instructions.
MSI Set Length 2
This feature specifies one of the bar code lengths for "MSI Length Control" on page 187.
Length 2 is the maximum label length if in Variable Length Mode, or the second fixed
length if in Fixed Length Mode. The length includes the bar code’s data characters only.
The length can be set from 1 to 50 characters. A setting of 00 specifies to ignore this
length (only one fixed length). See "
Set Length 2" on page 302 for more detailed pro-
gramming instructions.

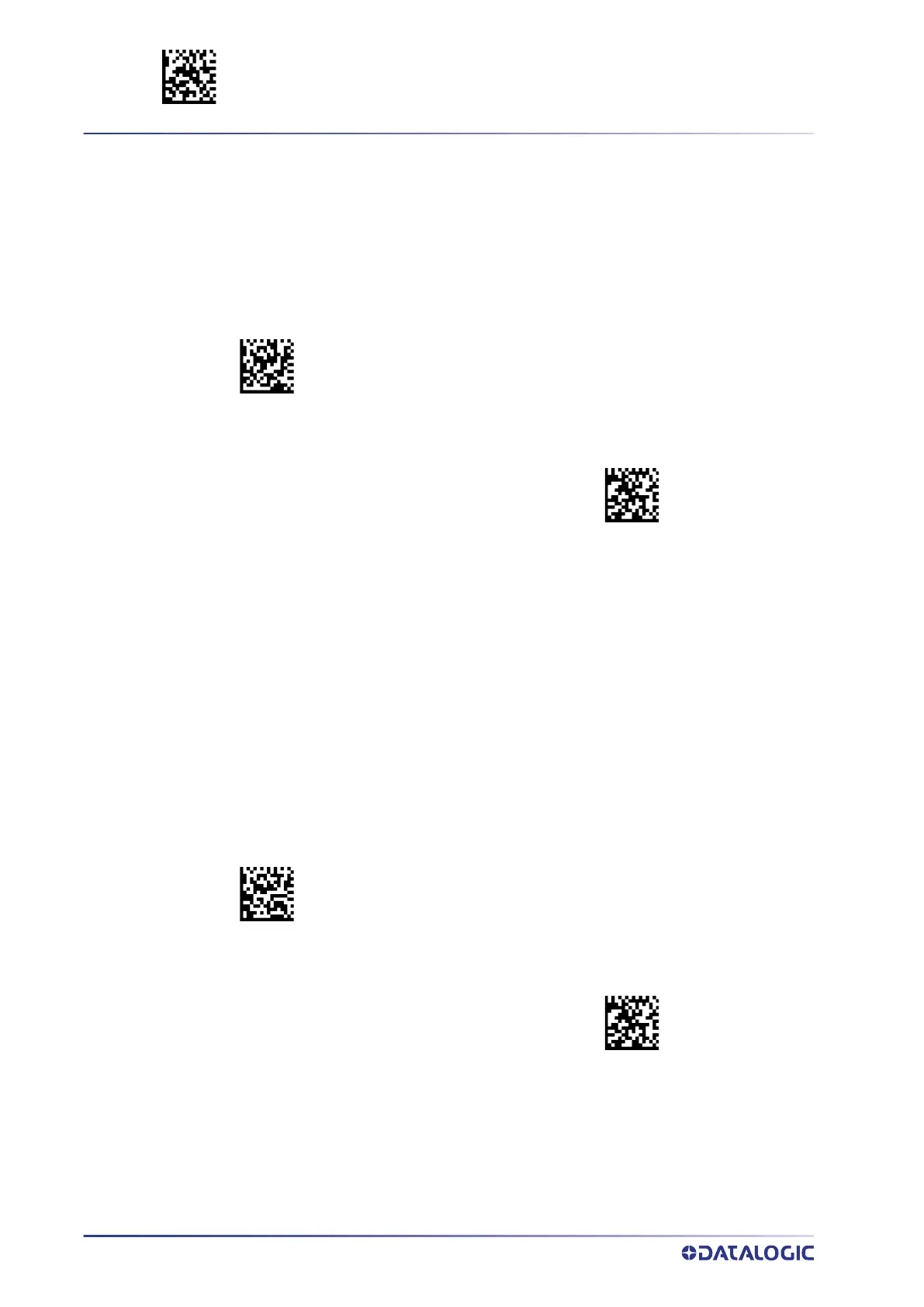

Select MSI Length 1 Setting
$CMSL1
To configure this feature, scan the ENTER/EXIT PRO-
GRAMMING MODE bar code above, then the bar
code at left followed by the digits from the Alphanu-
meric characters in Appendix D, Keypad represent-
ing your desired character(s). End by scanning the
ENTER/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code to abort
and not save the entry string. You can then start
again at the beginning.
CANCEL

Length 1 = 01 (one character)
Select MSI Length 2 Setting
$CMSL2
To configure this feature, scan the ENTER/EXIT PRO-
GRAMMING MODE bar code above, then the bar
code at left followed by the digits from the Alphanu-
meric characters in Appendix D, Keypad represent-
ing your desired character(s). End by scanning the
ENTER/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code to abort
and not save the entry string. You can then start
again at the beginning.
CANCEL

Length 2 = 50 (50 characters)
