SETUP
14
POWERSCAN™ PD/PM96XX
MOUNTING INSTRUCTIONS
The base station can be either set on or mounted to a flat surface for desktop usage, or
affixed vertically to a wall. Depending on the model, the appropriate connection mod-
ule is already installed.
Permanent Mounting
For either desktop or wall mounting, the base station can be fastened directly to a flat
surface using screws (not included).
Wall Mounting
The base station contains a reversible positioning tab for horizontal or vertical mounting.

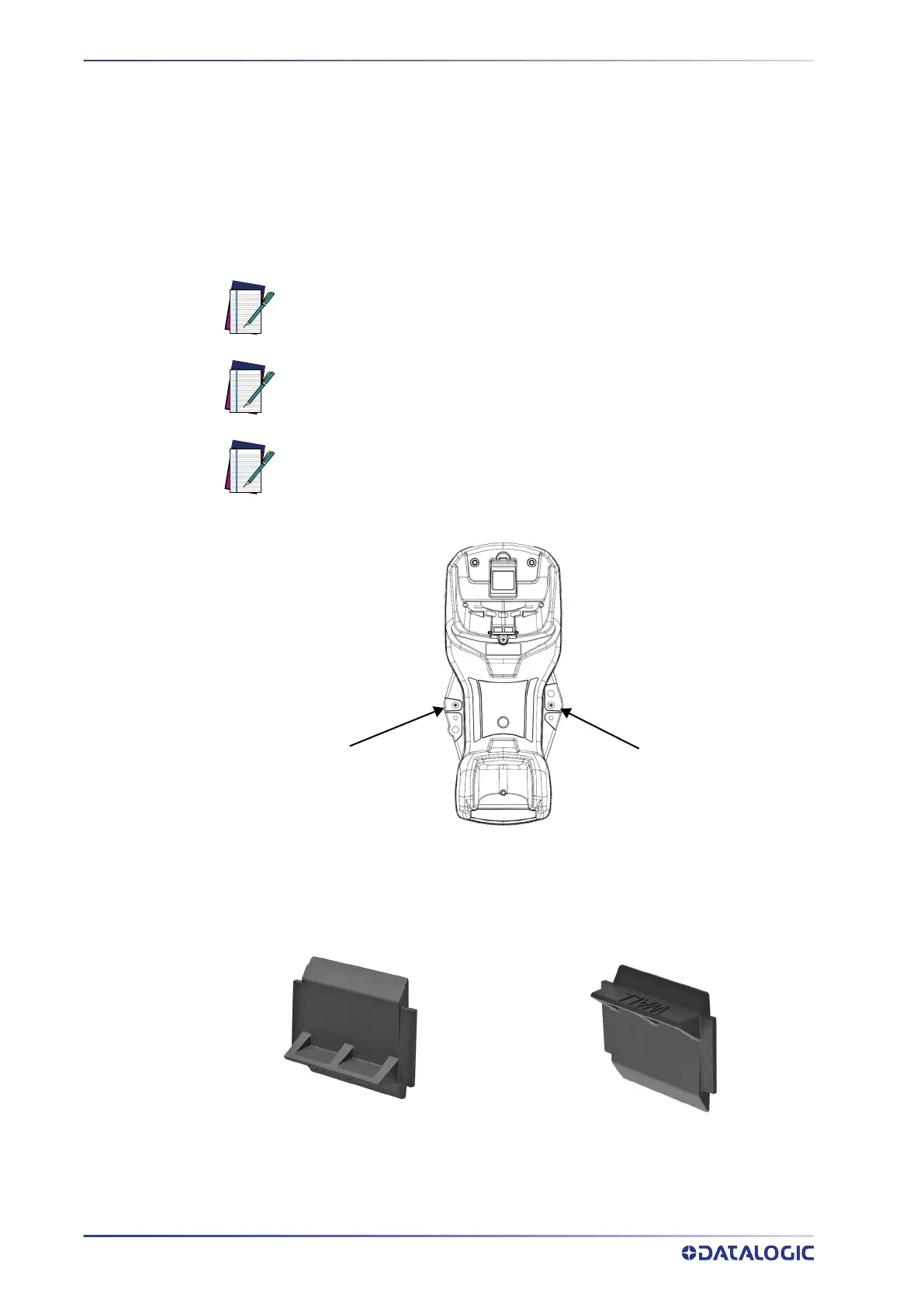

Figure 2 - Positioning Tab
When shipped, the base station has the positioning tab installed in the Desktop position
(horizontal). For vertical installation, the positioning tab must be rotated.
NOTE: When the base station is mounted on vertical surfaces, permanent
mounting is always required.
NOTE: For vertical installation, do not exceed two meters in height.
NOTE: When mounting on drywall, the base station should be screwed to a
wall stud or supporting beam for additional support.
Screw Position
Screw Position
Desktop Positioning Tab (Horizontal) Wall Positioning Tab (Vertical)
