USING THE POWERSCAN™ PD96XX
The PowerScan™ PD96XX normally functions by capturing and decoding codes. The
reader is equipped with an internal Motionix™ motion-sensing function which activates
the aiming system on device motion. The intelligent aiming system indicates the field of
view which should be positioned over the bar code:

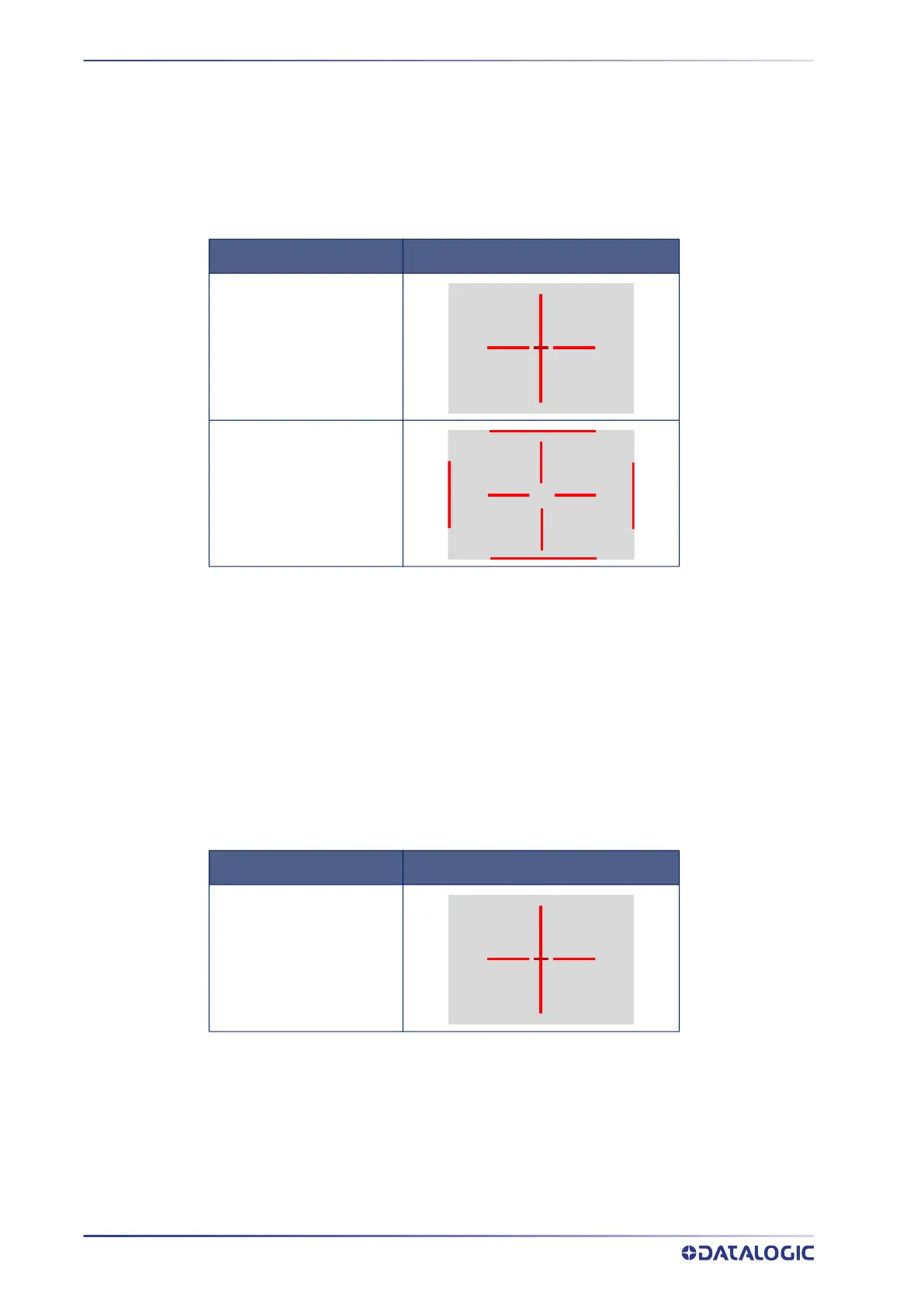

Table 1 - Aiming System
Symbologies with smaller bars or elements (mil size) should be read closer to the unit.
Symbologies with larger bars or elements (mil size) should be read farther from the unit.
Successful reading is signaled by an audible tone plus a good-read green spot LED indi-
cator and vibration. Reference the PowerScan™ 9600 Family Product Reference Guide
(PRG) for more information about this feature and other programmable settings.
USING THE POWERSCAN™ PM96XX
The PowerScan™ PM96XX normally functions by capturing and decoding codes. Turn on
the scanner by pressing the trigger for 2 seconds. When the scanner starts up, it
vibrates. After the vibration, the trigger can be released and the startup phase ends.
Table 2 - Aiming System
The field of view indicated by the aiming system will be smaller when the reader is
closer to the bar code and larger when it is farther from the code. Symbologies with
smaller elements (mil size) should be read closer to the unit. Symbologies with larger
elements (mil size) should be read farther from the unit.
Successful reading is signaled by an audible tone plus a good-read green spot LED indi-
cator and vibration. Reference the PowerScan™ 9600 Family Product Reference Guide
(PRG) for more information about this feature and other programmable settings.
MODEL P/N AIMER PATTERN
PD9630-SR
PD9630-HP
PD9630-DC
MODEL P/N AIMER PATTERN
PM96XX-SR
PM96XX-HP
