CONNECT HOST INTERFACE
PRODUCT REFERENCE GUIDE 9

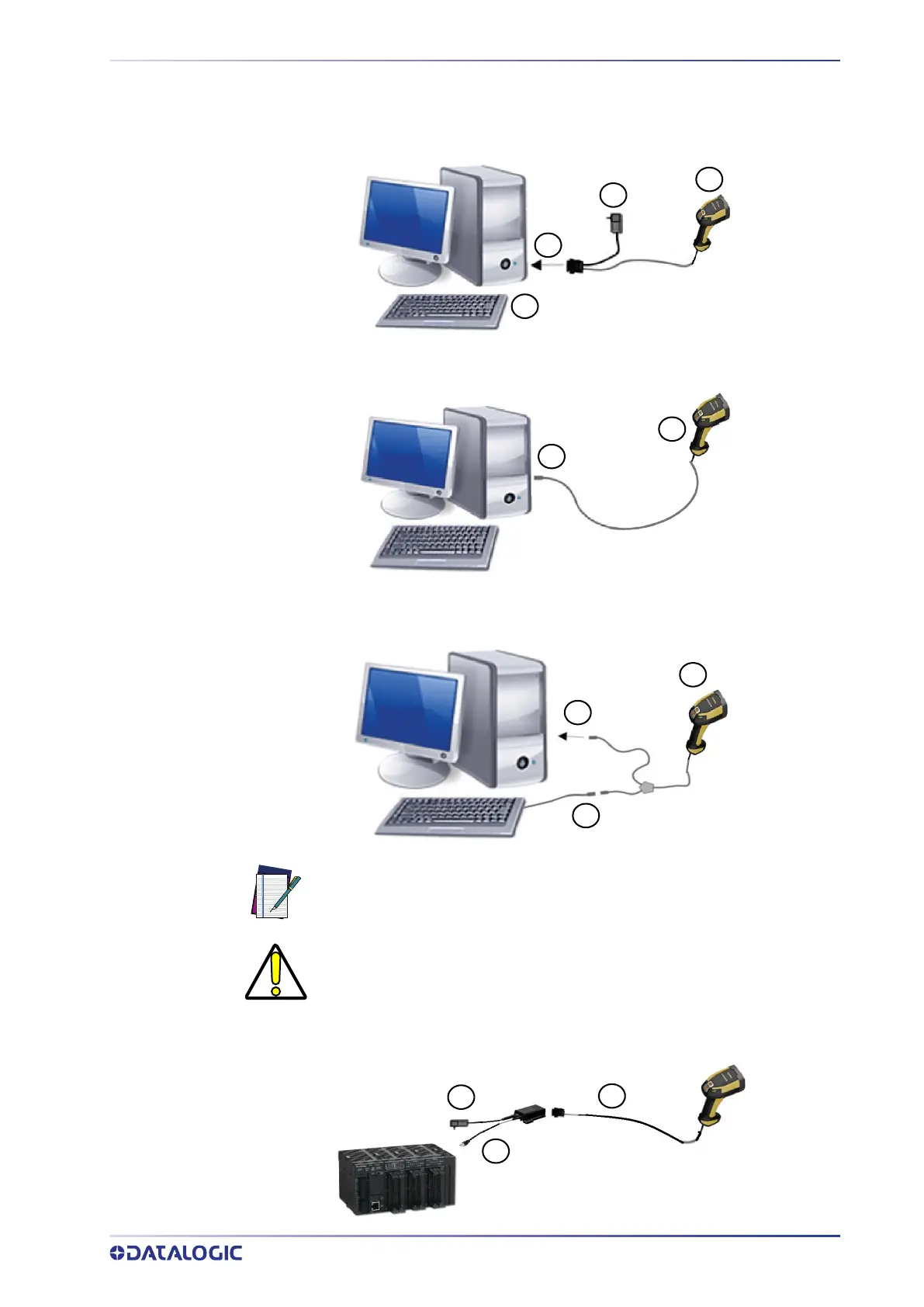

Figure 1 - Connection to the Host
RS-232
USB
WEDGE
NOTE: Use only CAB-556. Other Wedge cables are not compatible with
PD96XX readers.
CAUTION: To avoid damage to the scanner and/or to the host, first install
correctly the cable into the scanner and then connect the other end of the
cable into the host port of the PC.
ETHERNET
1
3
2
4
1
2
1
3
2
3
2
1
