CONNECTION MODULE FAST RELEASE - MOUNTING THE BRACKET
PRODUCT REFERENCE GUIDE 19

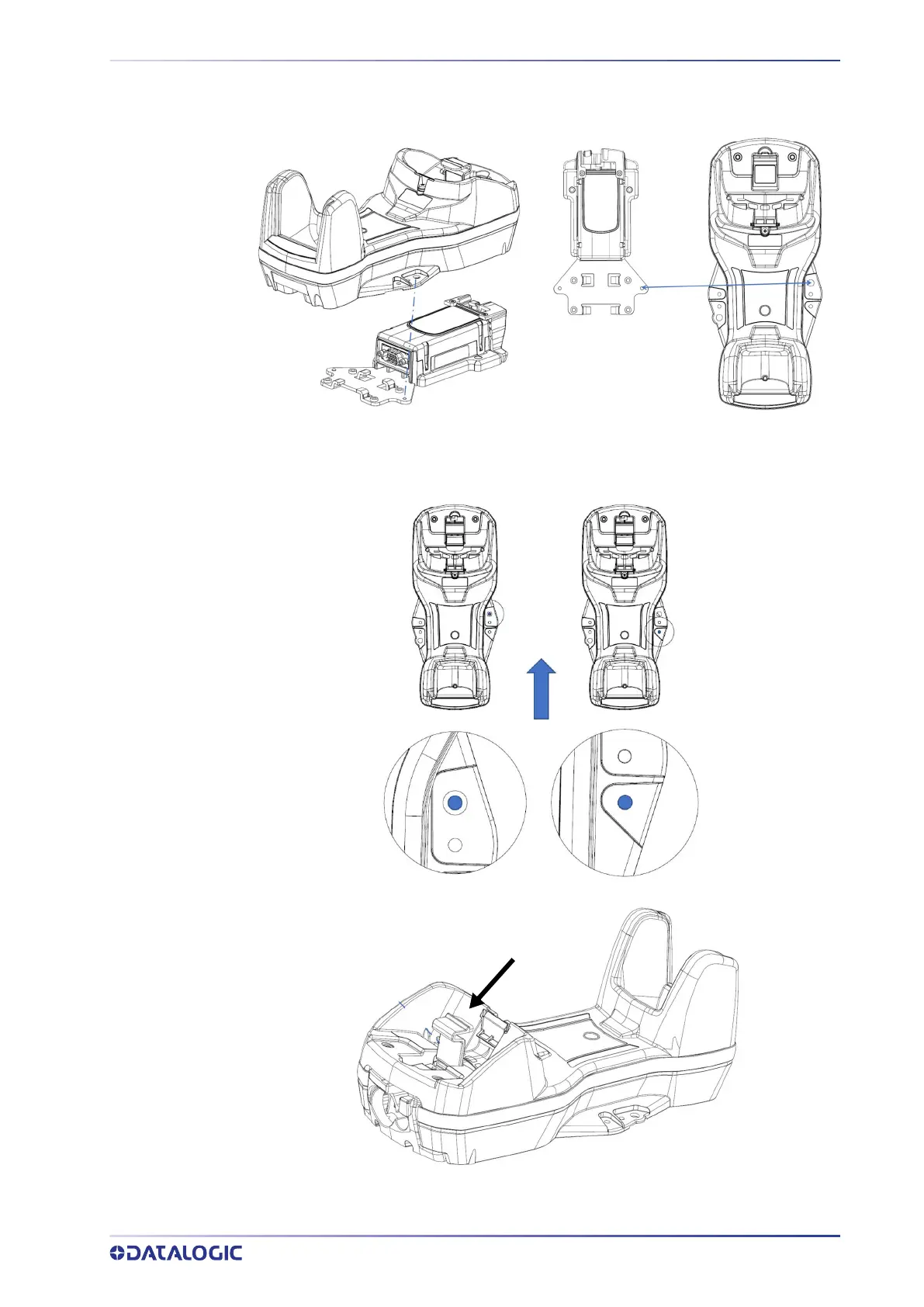

6. With the lever still unlocked, align the base station with the connection module
until you see the sphere inside the bigger hole on the right.
7. Move the base station up until the sphere is aligned with the smaller hole, then
lock the lever to secure the connection module.
Lock the lever
