Datalogic RIDA DBT6400 Quick Reference Manual

Setting Up the Reader
4RIDA™ DBT6400
Setting Up the Reader
Follow the steps below to connect and get your reader up
and communicating with its Host.
1. Configure the Base Station (if available)
2. Charge the Batteries (see Charging the Batteries on
page 6).
3. Link to a Host (see Linking to a Host on page 8) or to
the Base Station (if available - see Linking to a Base
Station on page 11).
4. Select the Interface Type for Base Station (if avail-
able - see Selecting the Base Interface Type on page
25).
5. Configure the Reader (optional, depends on settings
needed).
Configuring the BC6020 Base Station

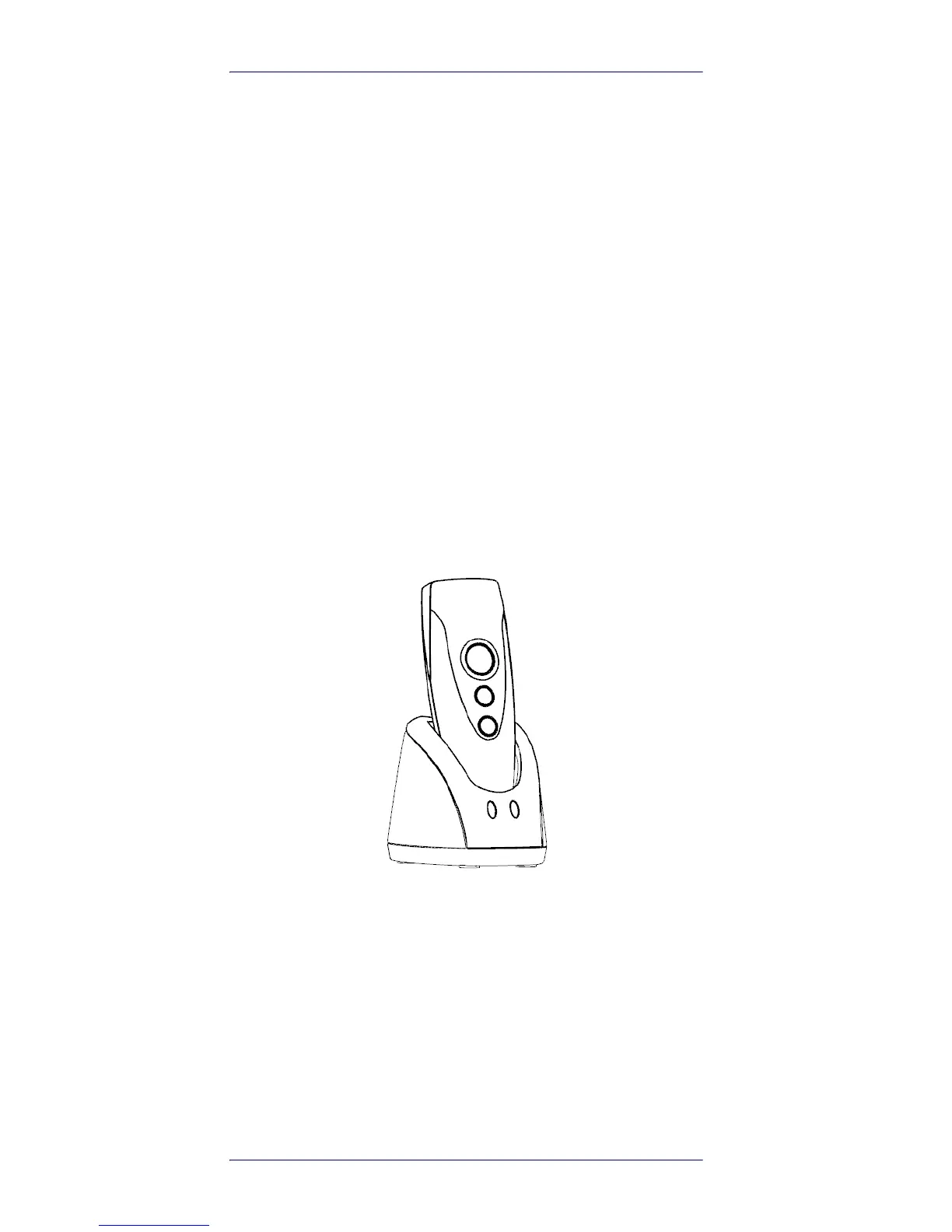

Place the RIDA scanner on the Base Station as shown in
the figure below.
The Base Station can be powered up by an external power
supply or by a Host via the micro USB Cable. Both the
power cable and the micro USB cable can be connected at
the same time on the Base; in this case, USB connection is
used for data exchange with the Host, while power is sup-
plied from external power supply.
The figure below shows how to connect the Base Station
to a terminal PC or to another Host device.

Datalogic RIDA DBT6400 Specifications

General

Scanner type	Handheld scanner
Type	Handheld bar code reader
Wavelength	650 nm
Sensor type	-
Yaw reading angle	-60 - 60 °
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Linear (1D) barcodes supported	JAN, PostBar, RM4SCC / KIX
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, QR Code
Wireless range	25 m
Bluetooth version	4.0
Operating frequency	2400 MHz
Standard interfaces	Bluetooth, USB
Connectivity technology	Wired & Wireless
Battery life	5 h
Charging time	2.5 h
Battery capacity	700 mAh
Power source type	Battery
Number of reads per charge	3000
Number of batteries supported	1
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	White
International Protection (IP) code	IP50
Sustainability certificates	RoHS
Cables included	No
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	42.3 mm
Width	112.5 mm
Height	27.5 mm
Weight	85 g
