Datamax E-Class Mark II User Manual

Chapter 2 – Printer Setup 5
2
2
2
.
.
.
3
3
3
L
L
L
o
o
o
a
a
a
d
d
d
i
i
i
n
n
n
g
g
g
M
M
M
e
e
e
d
d
d
i
i
i
a
a
a

If the printer is equipped with an Adjustable Media Sensor it may require adjustment to match your
media choice. If the printer is equipped with this type of sensor, proceed to Section 4.4.

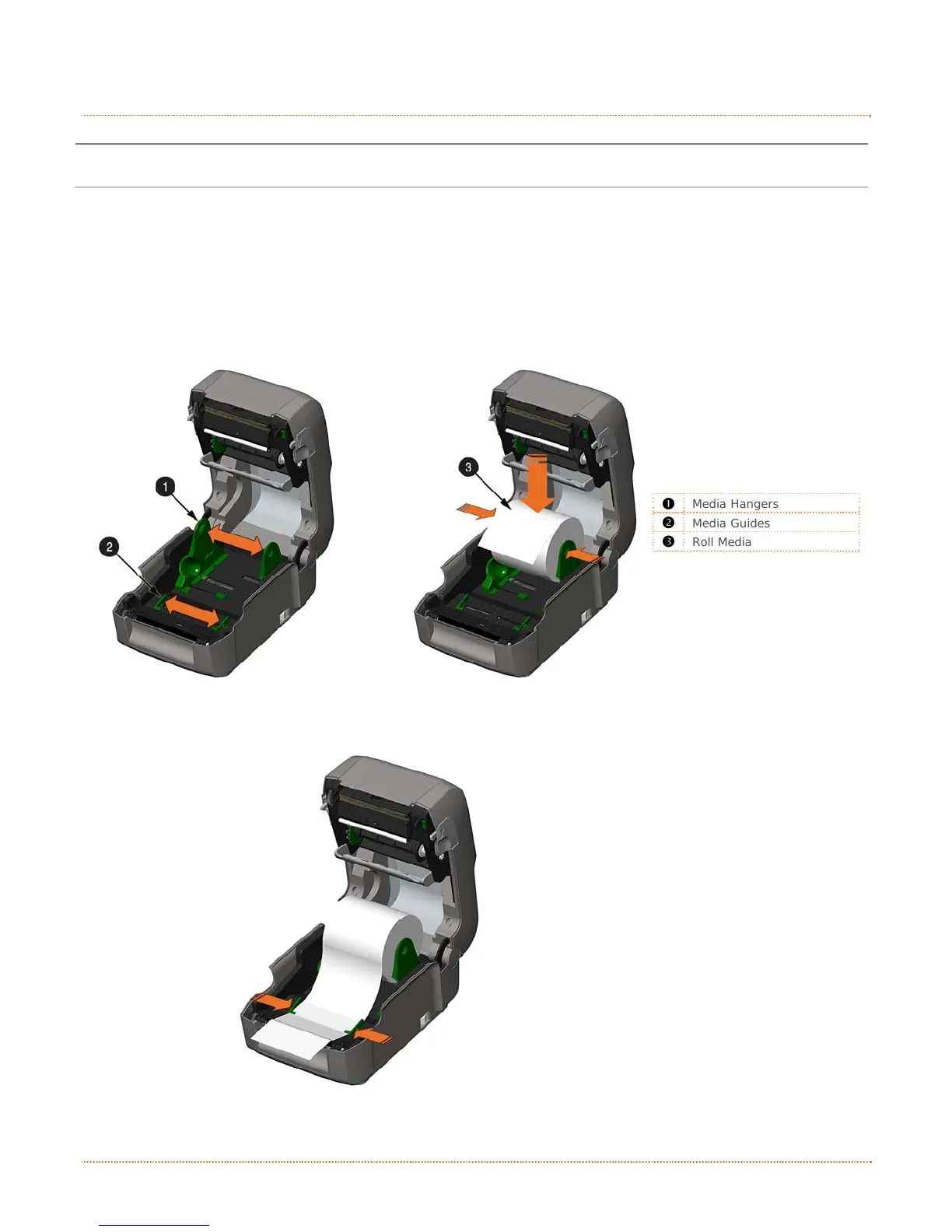

2.3.1 Loading Roll Media
Load media as follows:
1) Slide the Media Guides outward.
2) Slide the Media Hangers outward and insert the Roll Media as shown. Allow the Media Hangers to
retract and grasp the media roll.
312

Media Hangers

Media Guides

Roll Media
3) Pull out enough media to exit the front of the printer. Adjust the Media Guides so they are lightly
touching the edge of the media.
312

Datamax E-Class Mark II Specifications

General

Resolution	203 dpi (8 dots/mm) or 300 dpi (12 dots/mm)
Operating Temperature	40°F to 95°F (4°C to 35°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Print Method	Direct Thermal / Thermal Transfer
Max Print Speed	6 inches per second (ips)
Memory	8 MB DRAM
Interface	Serial, Parallel, USB
Media Type	Labels, Tags, Receipts
Media Width	0.75" (19 mm) to 4.65" (118 mm)
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Power Requirements	100-240 VAC, 50-60 Hz
