Datamax E-Class Mark II User Manual

Chapter 3 – Printer Operation 21
Important Notes:
The Windows driver functions the same as any other Windows printer. While built-in help files provide
information on all settings, there are some important setting parameters that should be observed for trouble
free printing:

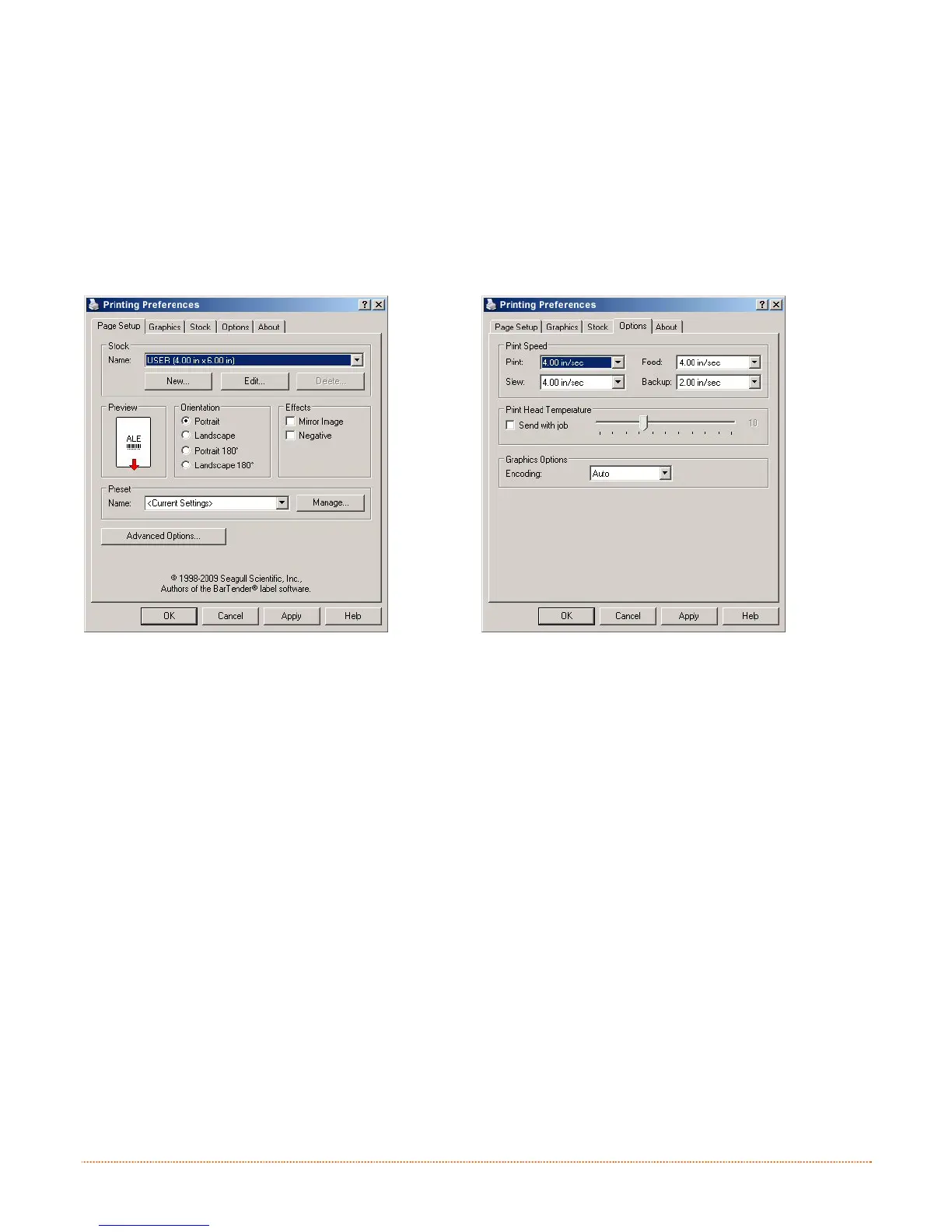

Page Setup Tab: Stock
It is important that the Stock setting matches the
size of the label you are using. If you cannot find a
match for your label click New and enter the
dimensions of your label.
Options Tab: Print Speed & Printhead Temperature
These two settings will have the greatest effect on
print quality. Some label stocks will require more
heat and slower print speeds to generate a quality
image.
The Windows application software used to create the label format will likely have a "Page Setup" screen. This
will also need to match the size of the label you are using.

Datamax E-Class Mark II Specifications

General

Resolution	203 dpi (8 dots/mm) or 300 dpi (12 dots/mm)
Operating Temperature	40°F to 95°F (4°C to 35°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Print Method	Direct Thermal / Thermal Transfer
Max Print Speed	6 inches per second (ips)
Memory	8 MB DRAM
Interface	Serial, Parallel, USB
Media Type	Labels, Tags, Receipts
Media Width	0.75" (19 mm) to 4.65" (118 mm)
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Power Requirements	100-240 VAC, 50-60 Hz
