Datamax E-Class Mark II User Manual

Chapter 4 – Maintenance and Adjustments 31
4
4
4
.
.
.
4
4
4
A
A
A
d
d
d
j
j
j
u
u
u
s
s
s
t
t
t
a
a
a
b
b
b
l
l
l
e
e
e
M
M
M
e
e
e
d
d
d
i
i
i
a
a
a
S
S
S
e
e
e
n
n
n
s
s
s
o
o
o
r
r
r

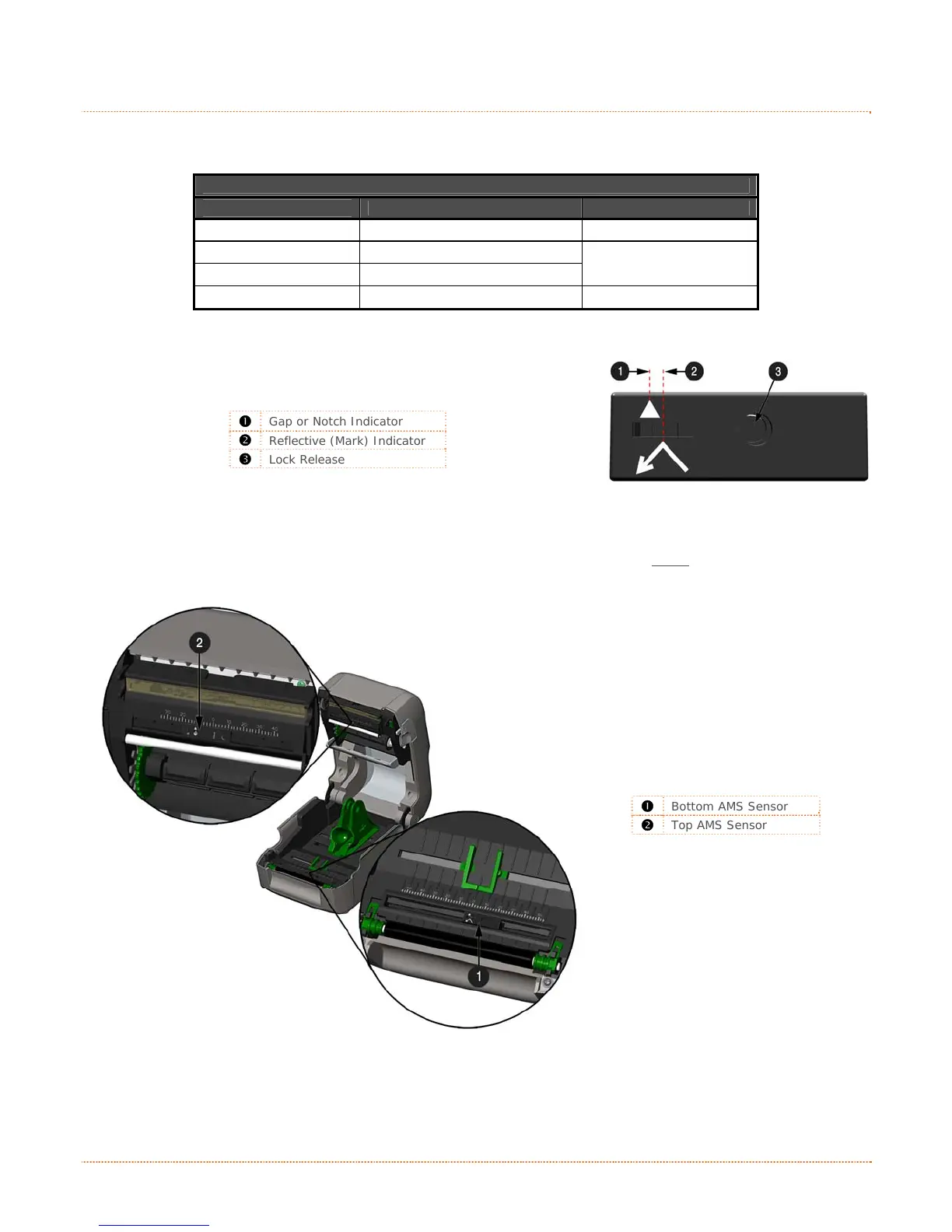

The optional Adjustable Media Sensor (AMS) allows the printer to accept a wider variety of media
configurations. The table below defines general AMS positions for various media and Top of Form (TOF) types.
AMS Positioning
Media Type
Sensor Location TOF Sensing Method
Continuous
Center of the Media Continuous
Die-Cut
Center of the Label
Gap
Notched
Center of the Notch
Reflective
Center of the Mark Reflective
Position the AMS as follows:
1) On the Bottom AMS Sensor, identify the proper Indicator
for use with your media.

Gap or Notch Indicator

Reflective (Mark) Indicator

Lock Release
2) Depress the Lock Release and slide the Bottom AMS sensor so the Indicator is in line with the
center of the notch, gap, or reflective (mark) of the installed media.
3) Depress the Lock Release and slide the Top AMS Sensor over to the same setting as the Bottom
AMS Sensor, (this is not necessary if using reflective media).
312

Bottom AMS Sensor

Top AMS Sensor
4) Load media, see Section 2.3.

Datamax E-Class Mark II Specifications

General

Resolution	203 dpi (8 dots/mm) or 300 dpi (12 dots/mm)
Operating Temperature	40°F to 95°F (4°C to 35°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Print Method	Direct Thermal / Thermal Transfer
Max Print Speed	6 inches per second (ips)
Memory	8 MB DRAM
Interface	Serial, Parallel, USB
Media Type	Labels, Tags, Receipts
Media Width	0.75" (19 mm) to 4.65" (118 mm)
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Power Requirements	100-240 VAC, 50-60 Hz
