Datamax E-Class Mark II User Manual

32 Chapter 4 – Maintenance Adjustments
4
4
4
.
.
.
5
5
5
P
P
P
r
r
r
i
i
i
n
n
n
t
t
t
h
h
h
e
e
e
a
a
a
d
d
d
R
R
R
e
e
e
p
p
p
l
l
l
a
a
a
c
c
c
e
e
e
m
m
m
e
e
e
n
n
n
t
t
t
If the Printhead becomes damaged or worn, replace it as follows:

Always follow proper Electro Static Discharge procedures when replacing the printhead.
1) Turn OFF the printer and remove the ribbon if installed.
2) Lower the Ribbon Handler Assembly.

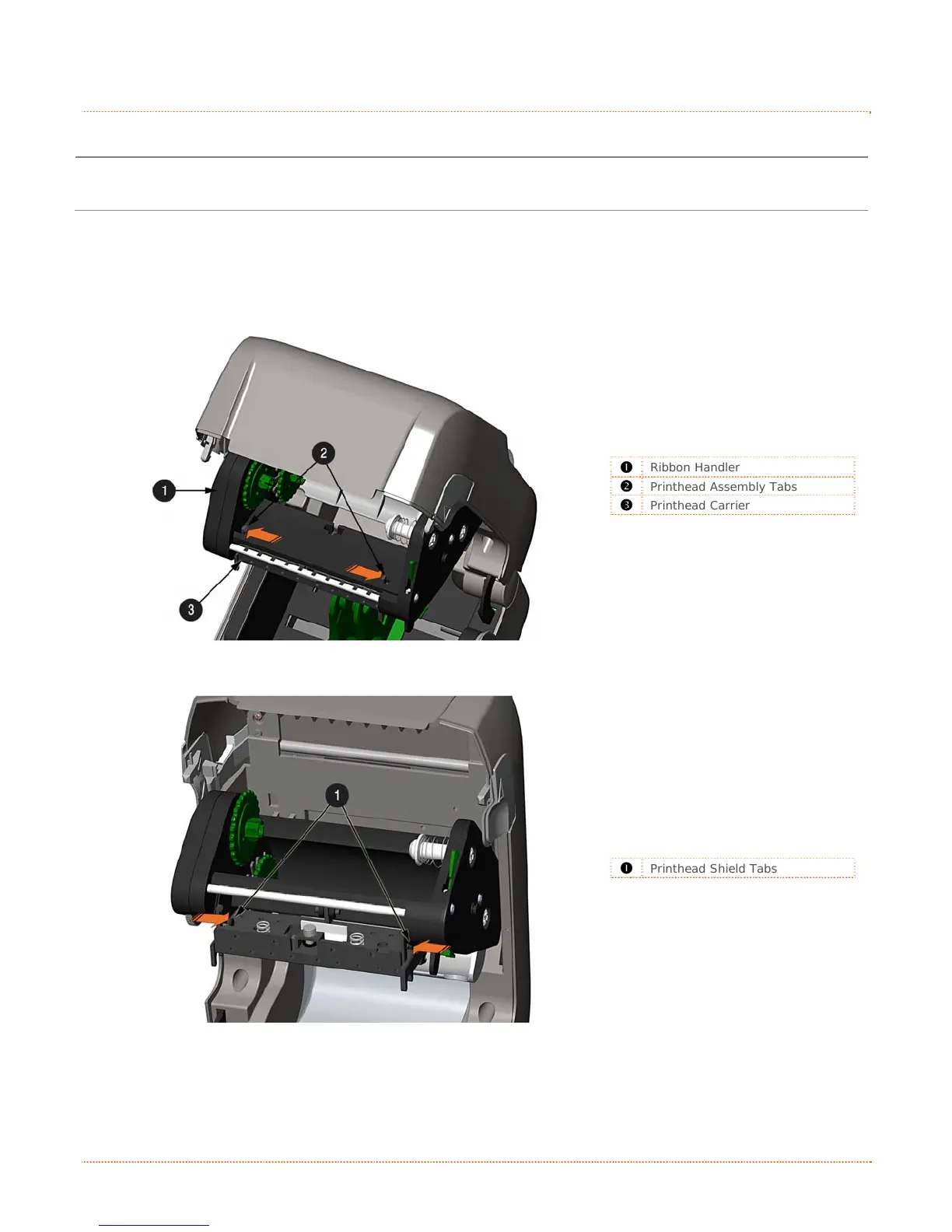

3) Press outward on the two Printhead Carrier Tabs and rotate the Printhead Carrier down.
312

Ribbon Handler

Printhead Assembly Tabs

Printhead Carrier
4) Press inward on the two Printhead Shield Tabs and rotate the Printhead Shield down.
312

Printhead Shield Tabs

Datamax E-Class Mark II Specifications

General

Resolution	203 dpi (8 dots/mm) or 300 dpi (12 dots/mm)
Operating Temperature	40°F to 95°F (4°C to 35°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Print Method	Direct Thermal / Thermal Transfer
Max Print Speed	6 inches per second (ips)
Memory	8 MB DRAM
Interface	Serial, Parallel, USB
Media Type	Labels, Tags, Receipts
Media Width	0.75" (19 mm) to 4.65" (118 mm)
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Power Requirements	100-240 VAC, 50-60 Hz
