12 Chapter 2 – Printer Setup

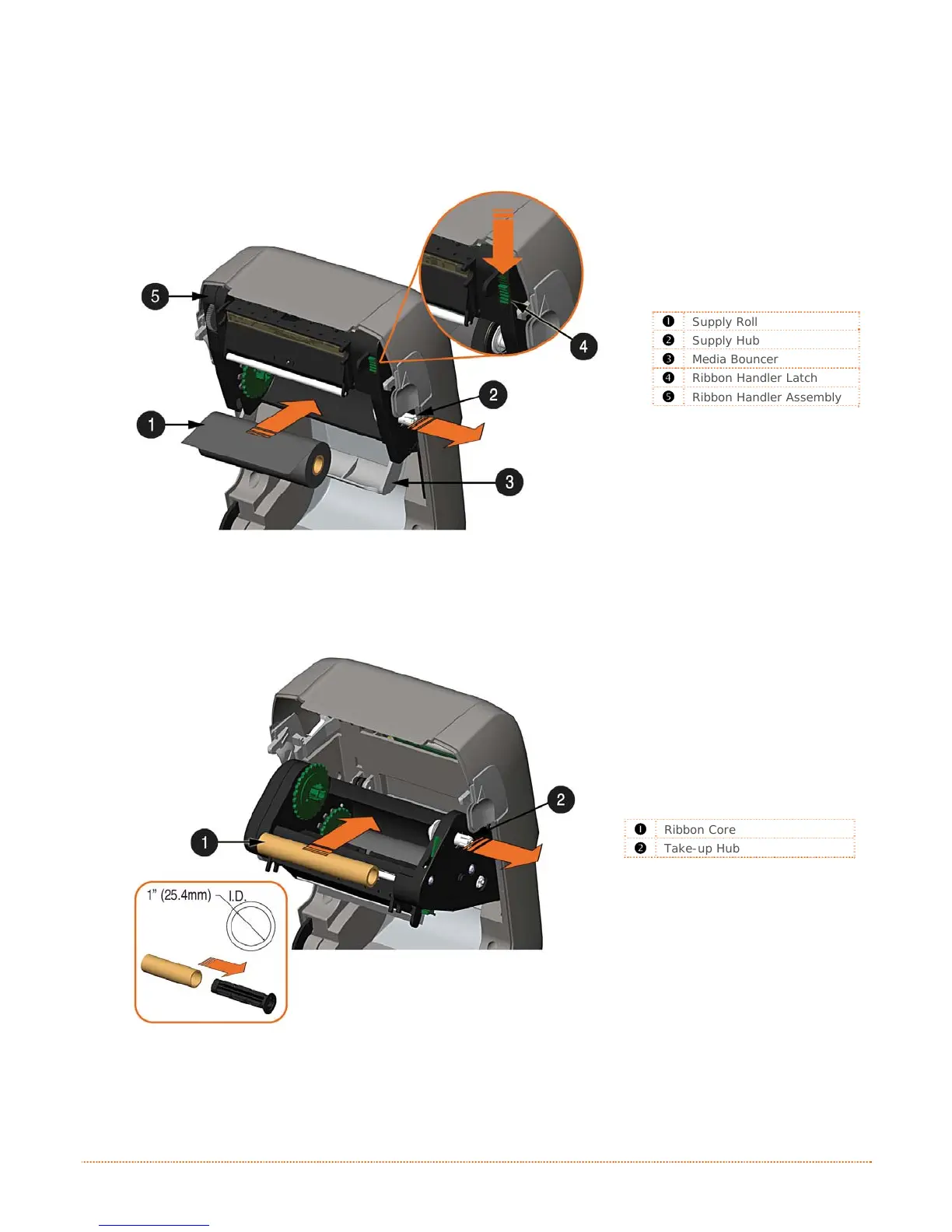

2) Push out the Supply Hub and load the Supply Roll into the printer as shown. Depending on the
size of the Supply Roll, the Media Bouncer may need to be pushed out of the way.
3) Once the Supply Roll is loaded, slide the Ribbon Handler Latch downward to unlatch the Ribbon
Handler Assembly.
312
Supply Roll
Supply Hub
Media Bouncer
Ribbon Handler Latch
Ribbon Handler Assembly
4) Push out the Take-up Hub and load an empty Ribbon Core into the printer as shown.
312
Ribbon Core
Take-up Hub
