Chapter 2 – Printer Setup 13

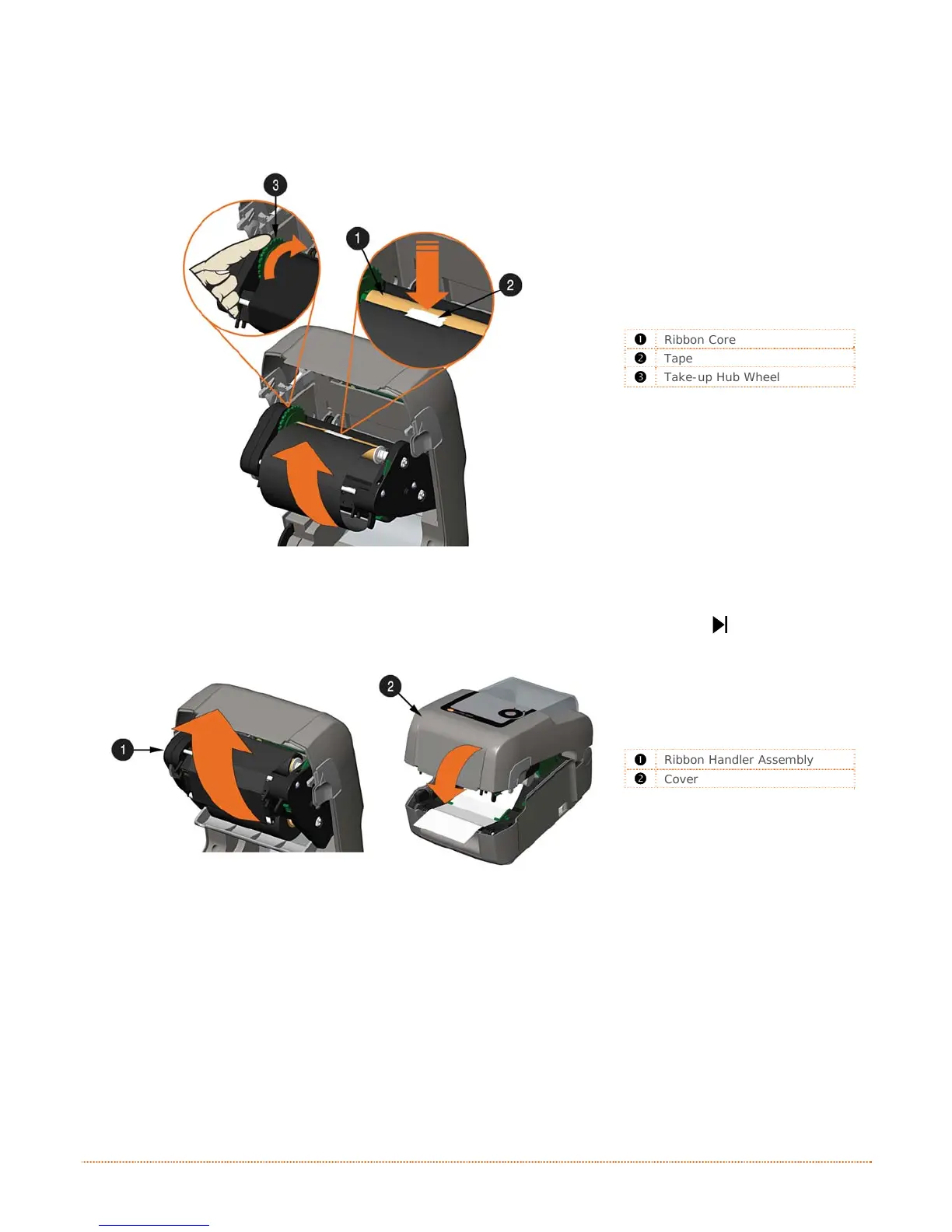

5) Route the ribbon from the supply roll to the Ribbon Core, as shown below.

6) If not already attached, affix the leader of the ribbon to the Ribbon Core using Tape. Rotate the

Take-up Hub Wheel several times to secure the ribbon.

312



Ribbon Core



Tape



Take-up Hub Wheel

7) Raise and latch the Ribbon Handler Assembly. Close the cover and press the

button several

times to advance the media (if the Fault Light is on, see Section 3.7.)

312



Ribbon Handler Assembly



Cover

Other manuals for Datamax E-Class Mark III

Need help?

Do you have a question about the Datamax E-Class Mark III and is the answer not in the manual?

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi (8 dots/mm)
Print Speed	Up to 6 ips
Max Print Width	4.25 inches
Media Sensor	Reflective and Transmissive
Interfaces	USB, Serial
Media Types	Labels, Tags, Wristbands
Media Width	0.75 in to 4.65 in
Media Thickness	0.0025 in to 0.0100 in
