Datamax M-Class Mark II Series User Manual

Appendix A – Specifications 71
Approved Media
To achieve optimum print quality and maximum printhead life, Datamax-O’Neil specifies the use of
Datamax-O’Neil brand media and ribbons. These supplies are specially formulated for use in our
printers; use of non-Datamax-O’Neil supplies may affect the print quality, performance, and life of
the printer or its components.
For a current list of approved media and ribbons for use in direct thermal and thermal transfer
applications, please contact a Media Representative at (407) 523-5650.
E
J
I
C
K
A
B
D
H
F
G

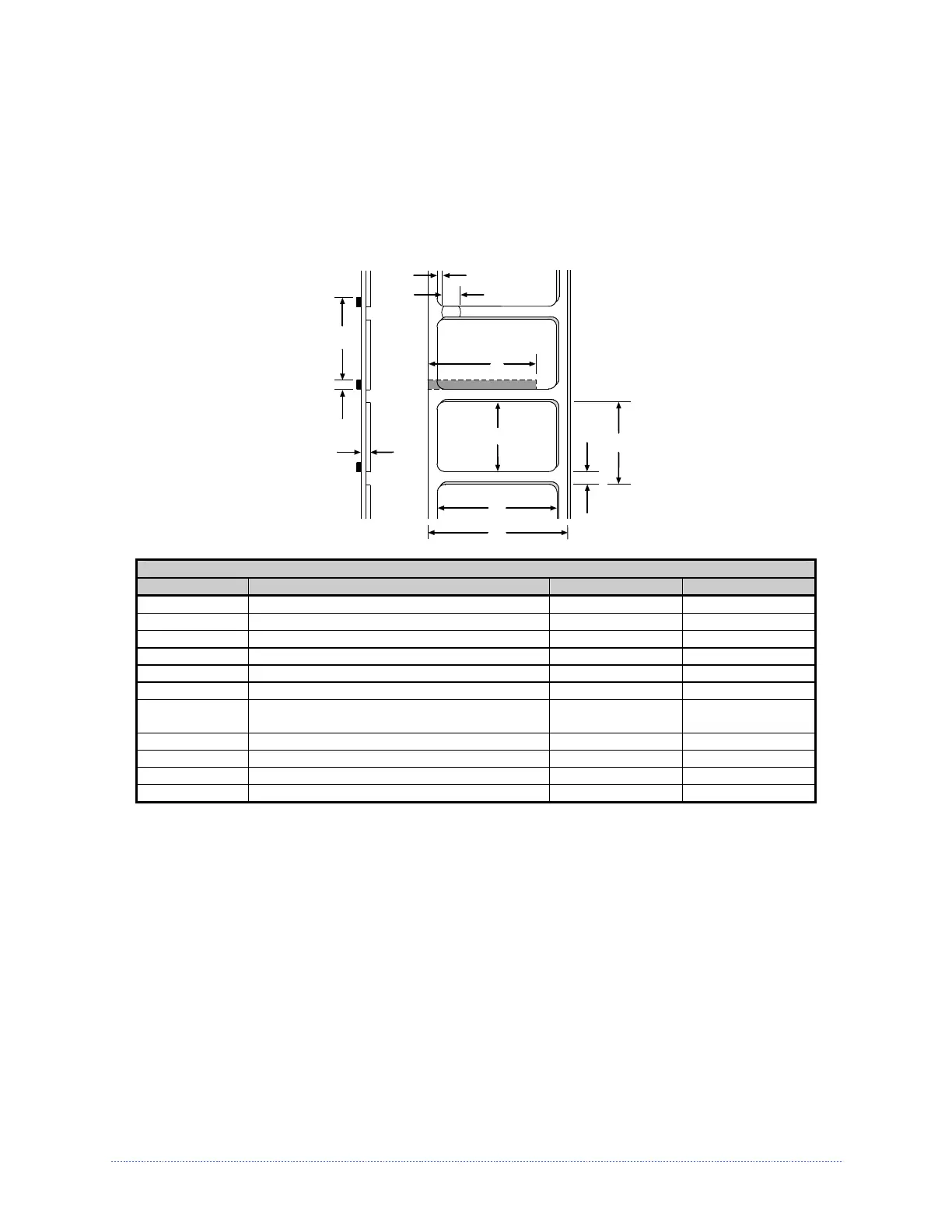

Side View
Top View
Media Dimensions
Designator Description Maximum
[1]
Minimum
[1]
A label width 4.65 .75
B liner width 4.65 .75
C gap (or notch) between labels
[3]
.25 .100
D label length
[3]
– .250
E media thickness .0100 .0025
F notch opening width .500 .200
G distance from the media’s edge to the
media sensor aperture (left justified)
2.250 .200
H reflective (black) mark width
[2]
4.65 .500
I distance between reflective marks
[3]
– .500
J reflective mark length
[3]
– .100
K label repeat distance
[3]
– .350
[1]
Units of measure given in inches.
[2]
The reflective (black) mark must be carbon based, placed on the backside of the stock, and
the reflectance shall be less than 10% at wavelengths of 950 and 640 nm.
[3]
The maximum allowable length of the combined label and gap (or mark) measurement cannot
exceed 99.99 inches.

Datamax M-Class Mark II Series Specifications

General

Memory	16 MB DRAM, 8 MB Flash
Operating Temperature	40°F to 95°F (4°C to 35°C)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi, 300 dpi
Print Speed	152 mm per second
Interfaces	USB, Serial
Optional Interfaces	Wireless 802.11b/g
Media Sensor	Reflective and Transmissive
Media Type	Labels, Tags, Tickets
Media Width	19 to 118 mm
Media Thickness	0.0025 to 0.0100 inches (0.0635 to 0.254 mm)
Ribbon Width	1.0" (25.4 mm) to 4.09 inches (27 to 104 mm)
Ribbon Length	1968' (600 m)
Storage Temperature	-4°F to 122°F (-20°C to 50°C)
Max Print Length	99 inches (2514 mm)
