Datamax M-Class Mark II Series User Manual

Appendix D – Changing the Language 90

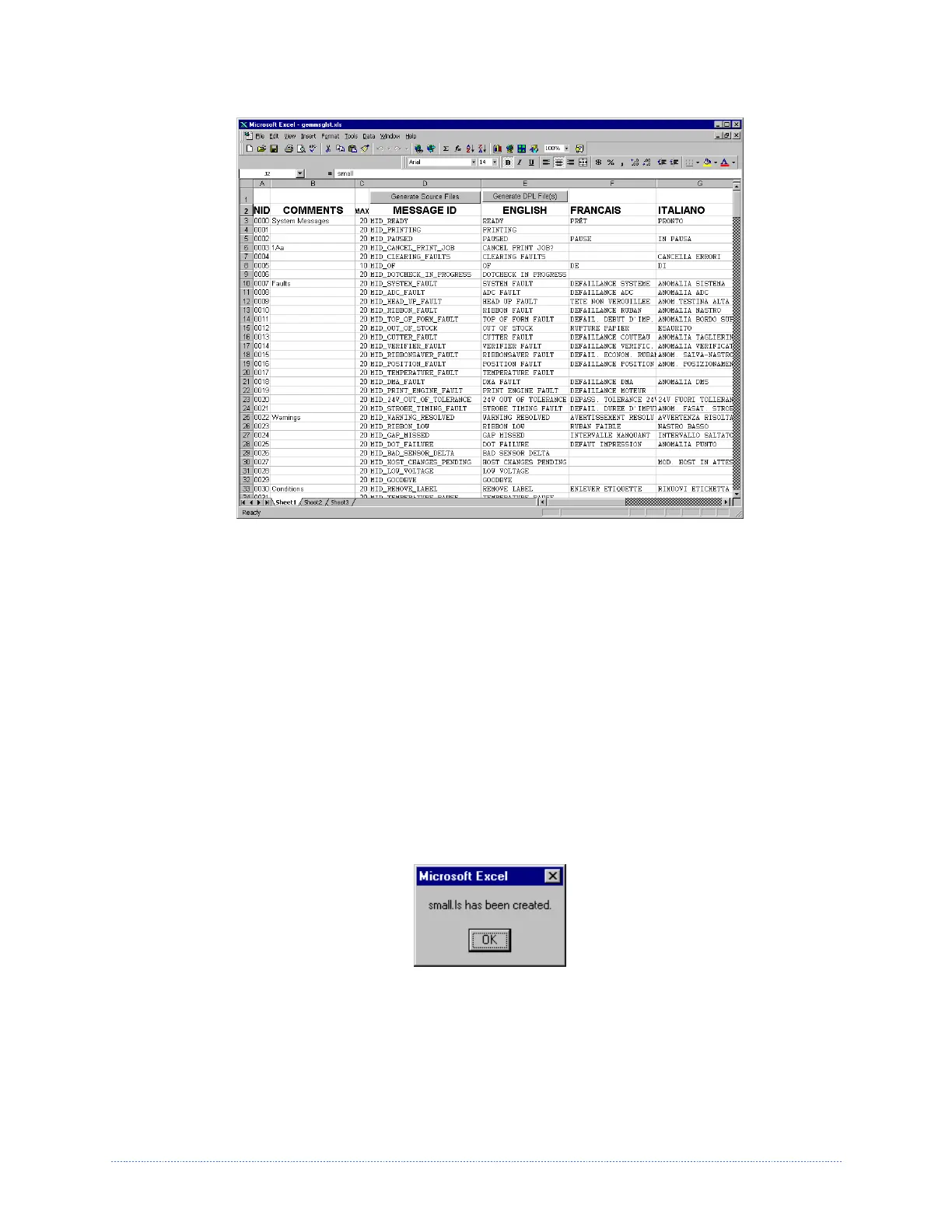

B. Click the “Enable Macro” box. The following screen appears:
C. Click on Column J and enter the new language, or modify an existing one. Some tips on this
process:
• Message Size – When entering new messages, reference the “MAX” column: this is the
maximum number of characters allowed for this field. (Warnings are displayed when the
number of characters is exceeded, or when trying to modify the MAX value; however, if
“cutting and pasting” fields, this warning system may be defeated.)
• Two Line Messages – Some of the message are displayed as two lines. These are indicated
in the comment fields.
• Comments – This field can be modified with no effect.
D. After editing is complete, highlight all of the columns to be created by pressing the letter
above the column (more than one column can be selected).
E. Press the Generate DPL File(s) radio button. A file will be generated for each of the selected
columns and Excel will provide confirmation (for example, as shown below, small.ls).

Datamax M-Class Mark II Series Specifications

General

Memory	16 MB DRAM, 8 MB Flash
Operating Temperature	40°F to 95°F (4°C to 35°C)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi, 300 dpi
Print Speed	152 mm per second
Interfaces	USB, Serial
Optional Interfaces	Wireless 802.11b/g
Media Sensor	Reflective and Transmissive
Media Type	Labels, Tags, Tickets
Media Width	19 to 118 mm
Media Thickness	0.0025 to 0.0100 inches (0.0635 to 0.254 mm)
Ribbon Width	1.0" (25.4 mm) to 4.09 inches (27 to 104 mm)
Ribbon Length	1968' (600 m)
Storage Temperature	-4°F to 122°F (-20°C to 50°C)
Max Print Length	99 inches (2514 mm)
