AP25 Installation and Operating Guide Version 1.00

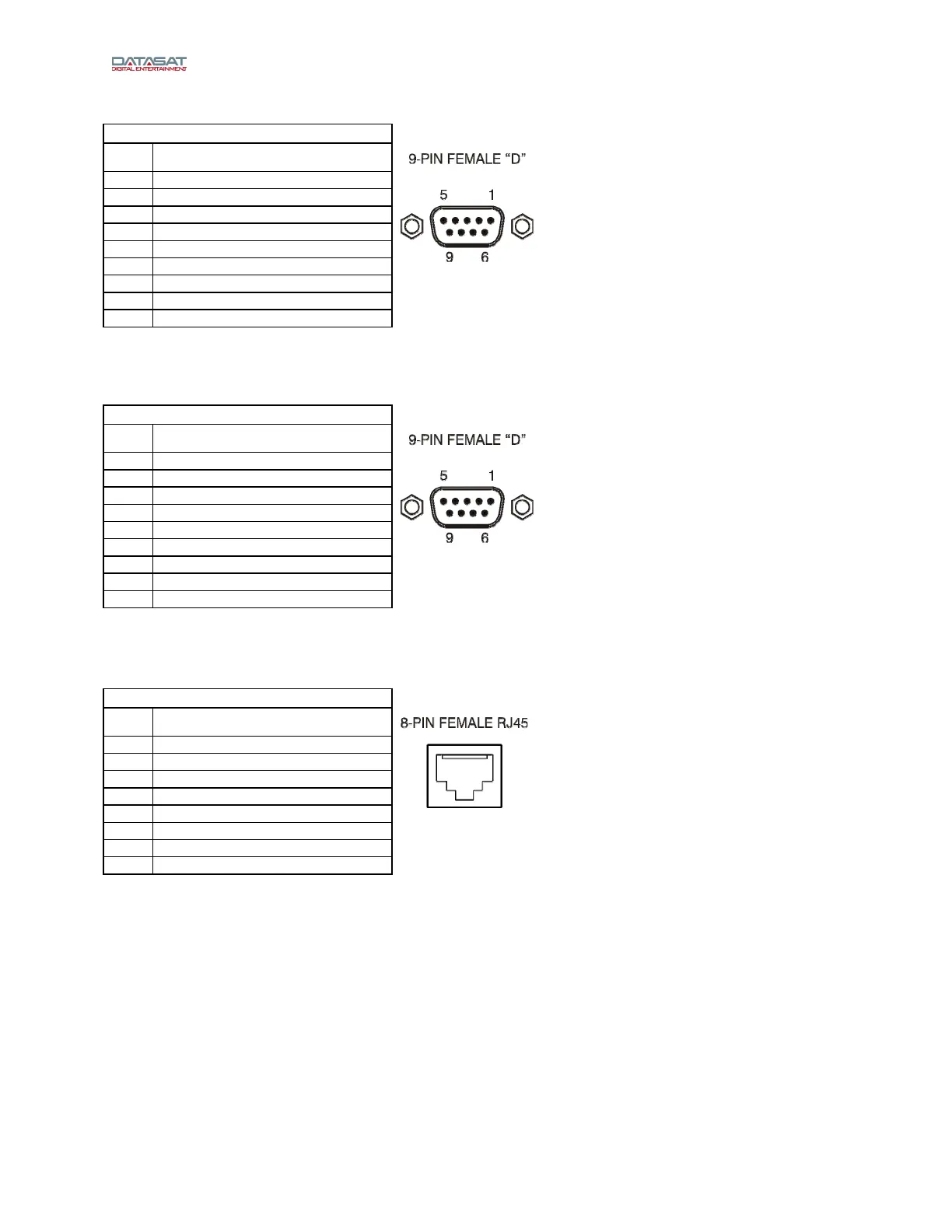

Appendix A. Connector Pin-outs A-2 Document #: 9301H79500 Ver. 1.00
CONTROL (RS232)– DB9F
Pin Description
1 N/C
2 Data out - TXD
3 Data in - RXD
4 Connected to pin 6
5 Chassis GND
6 Connected to pin 4
7 Connected to pin 8
8 Connected to pin 7
9 N/C
N/C = No connection
SERVICE PORT (RS232)– DB9F
Pin Description
1 N/C
2 Data out - TXD
3 Data in - RXD
4 Connected to pin 6
5 Chassis GND
6 Connected to pin 4
7 Connected to pin 8
8 Connected to pin 7
9 N/C
N/C = No connection
ETHERNET – RJ45F
Pin Description
1 TX D1 (+)
2 TX_D1 (-)
3 RX_D2 (+)
4 Not used
5 Not used
6 RX_D2 (-)
7 Not used
8 Not used
