AP25 Installation and Operating Guide Version 1.00
Appendix A. Connector Pin-outs A-3 Document #: 9301H79500 Ver. 1.00

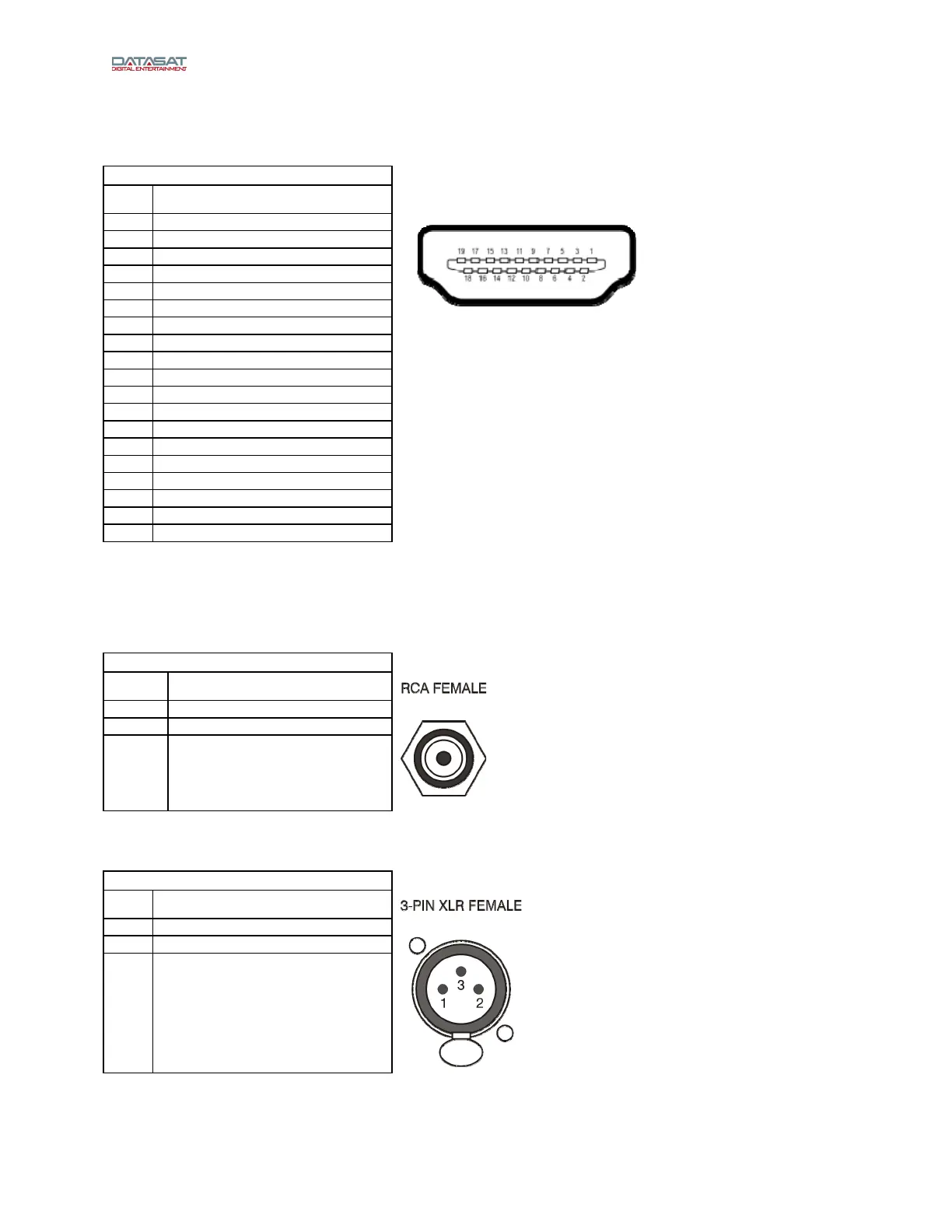

HDMI IN 1-4, OUT – HDMI
Pin Description
1 TMDS Data 2 (+)
2 TMDS Data 2 (Shield)
3 TMDS Data 2 (-)
4 TMDS Data 1 (+)
5 TMDS Data 1 (Shield)
6 TMDS Data 1 (-)
7 TMDS Data 0 (+)
8 TMDS Data 0 (Shield)
9 TMDS Data 0 (-)
HDMI
10 TMDS Clock (+)
11 TMDS Clock (Shield)
12 TMDS Clock (-)
13 CEC
14 N/C
15 DDC Clock
16 DDC Data
17 Ground
18 +5 V
19 Hot Plug Direct
N/C = No connection
Hearing Impaired, Monitor Out, Stereo Inputs 1&2, S/PDIF In – RCA
RCA FEMALE
Pin Description
Center Signal
Outer Ground
MICROPHONE IN – XLR F
Pin Description
1 Microphone Ground
2 Microphone In (+)
3 Microphone In (-)
