AP25 Installation and Operating Guide Version 1.00
Appendix F. H338 Optical Film Card Option F-6 Document #: 9301H79500 Ver. 1.00

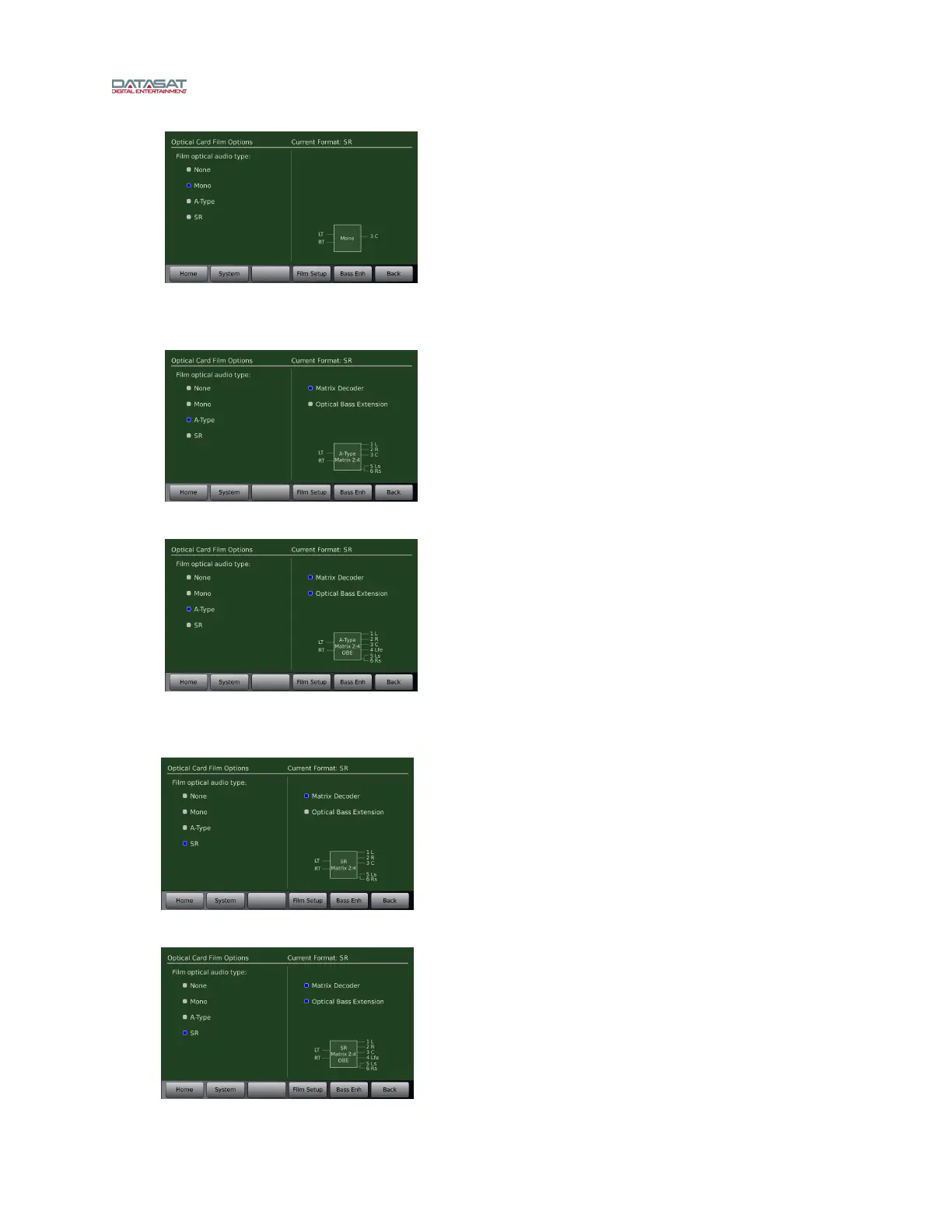

When A-Type is selected:
When SR is selected:
In this example, left total (LT) and right total (RT) are the
inputs. Output is: 3C = channel 3 is center (your only audio
out which is the sum of left total and right total). Notice Matrix
and OBE are not available for Mono. The Academy curve is
applied.
In this example, left total (LT) and right total (RT) are the inputs.
Outputs are: 1L = channel 1 is left, 2R = channel 2 is right, 3C =
channel 3 is center, 5Ls = channel 5 is left surround, and 6Rs =
channel 6 is right surround.
In this example, left total (LT) and right total (RT) are the inputs.
Outputs are: 1L = channel 1 is left, 2R = channel 2 is right, 3C =
channel 3 is center, 4Lfe = channel 4 is bass, 5Ls = channel 5 is
left surround, and 6Rs = channel 6 is right surround.
In this example, left total (LT) and right total (RT) are the inputs.
Outputs are: 1L = channel 1 is left, 2R = channel 2 is right, 3C =
channel 3 is center, 5Ls = channel 5 is left surround, and 6Rs =
channel 6 is right surround.
In this example, left total (LT) and right total (RT) are the inputs.
Outputs are: 1L = channel 1 is left, 2R = channel 2 is right, 3C =
channel 3 is center, 4Lfe = channel 4 is bass, 5Ls = channel 5 is left
surround, and 6Rs = channel 6 is right surround.
