2: Installation
2-2 PRC1099A-MSOP
Manpack Installation
Installing the
Battery
1. Place the PRC1099A on a level surface with the front panel facing down.
2. Release the two clamps by pushing down.
3. Remove the battery box.
4. Check the battery connector. If it is damaged, the transceiver must be
repaired. Make sure the pressure-test screw and relief valve are tight.
5. Position the battery so that the connectors are aligned and then mate the
connectors.
6. Install the battery case and tighten the clamps.
CAUTION: Remove the battery when the transceiver is not in use
for more than one day.

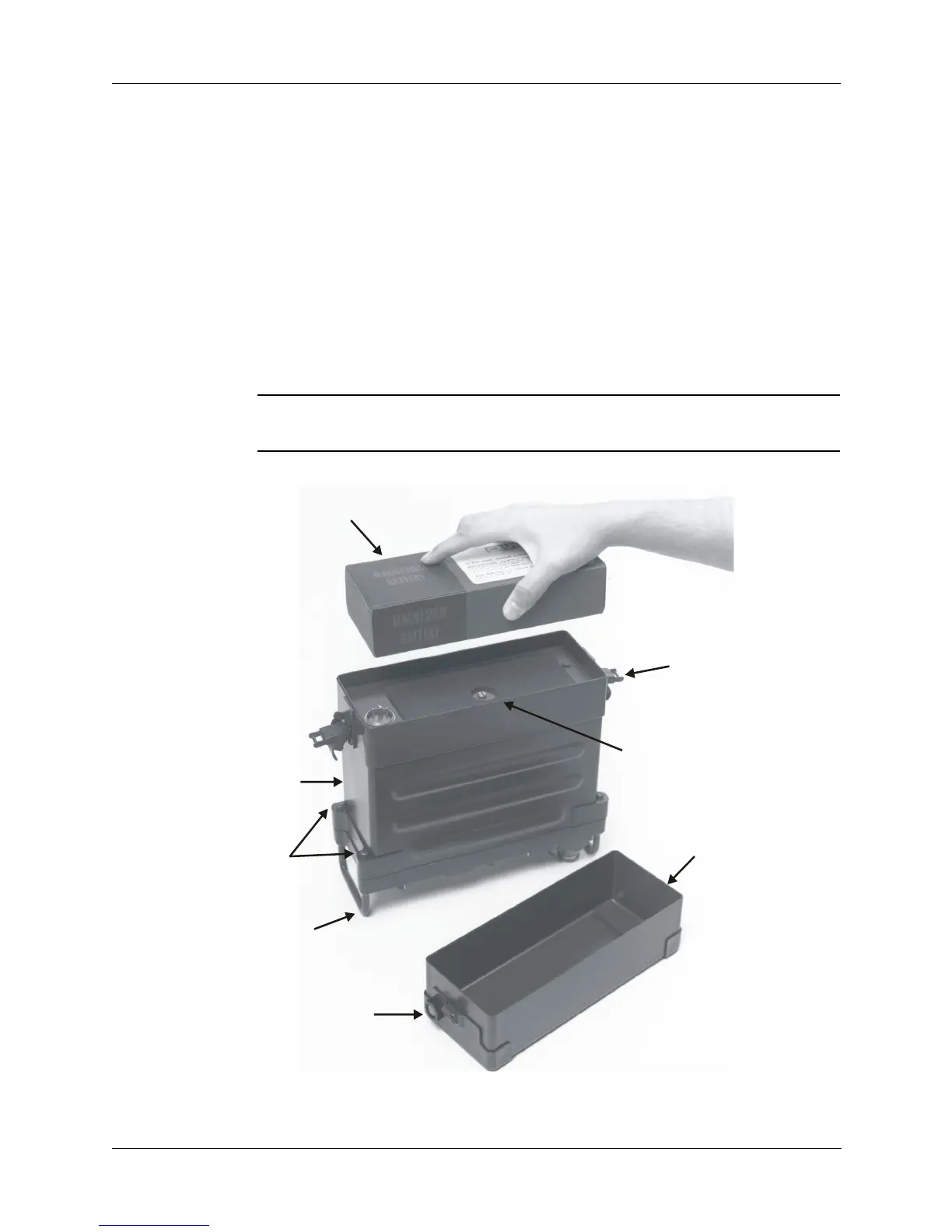

Figure 2-1. Installation of Battery in Transceiver
Clamp
Pressure
Te st S c r ew
Battery Bo
Radio
Connector
Transceiver
Case
Captive
Screws
Front Panel
Guard
Pressure
Relief
Valve
Battery
To Next Page
