6: Antenna Systems
6-4 PRC1099A-MSOP

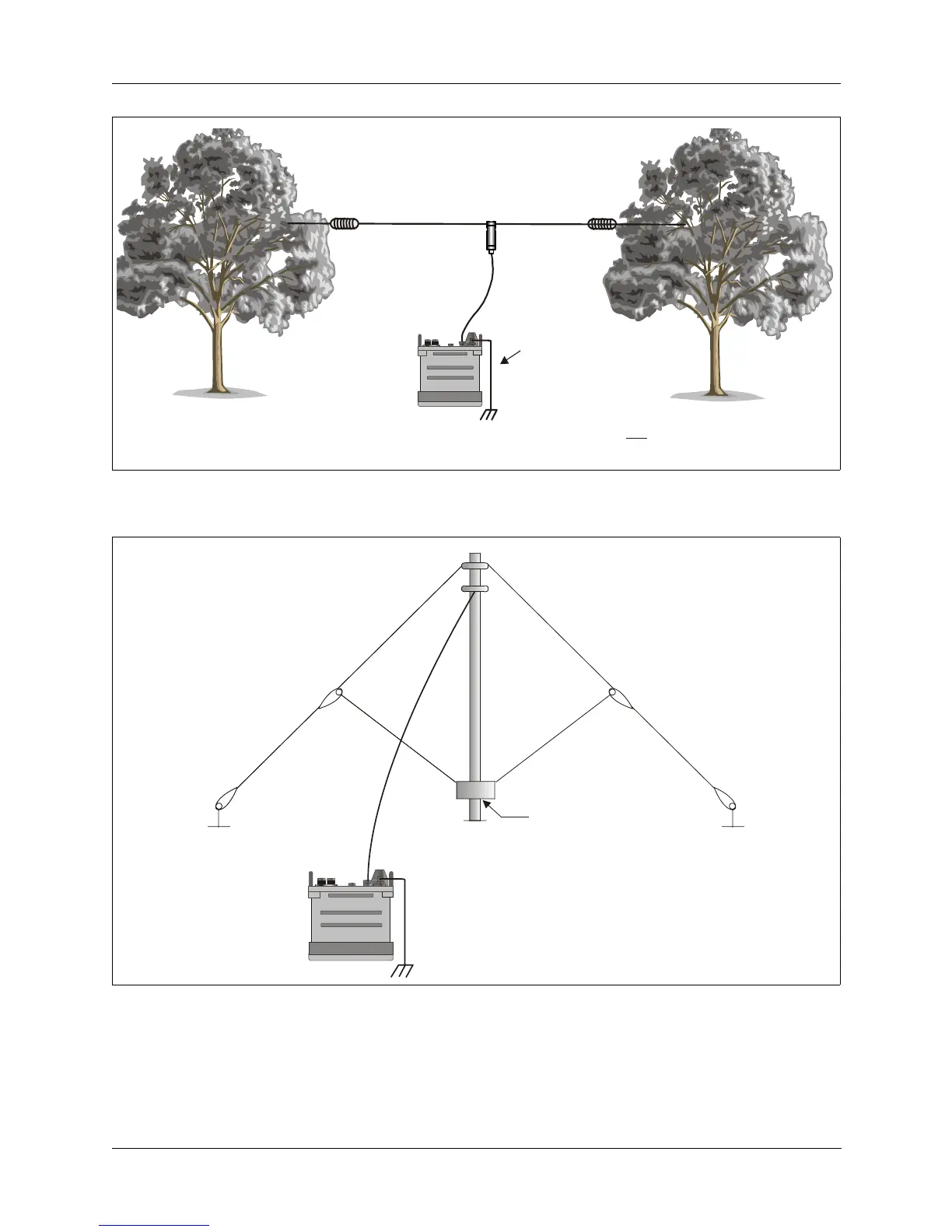

Figure 6-3. Resonant Dipole Antenna Configuration
PRC1099A
Ground
Optional
Dipole length cut to frequency of operation.
Length in feet =
F(MHz)
468
Figure 6-4. Broadband Antenna Configuration
PRC1099A
UG-255/U
“UHF to BNC”
Coax Adapter
Required
Diamond Configuration
Feed
RG213
Coax
Cable
Termination
Network
