2: Installation
PRC1099A-MSOP 2-5
Installing the
Handset
1. Remove the cover from the Audio connector on the front panel of the
transceiver.
2. Connect the handset to one of the Audio connectors.

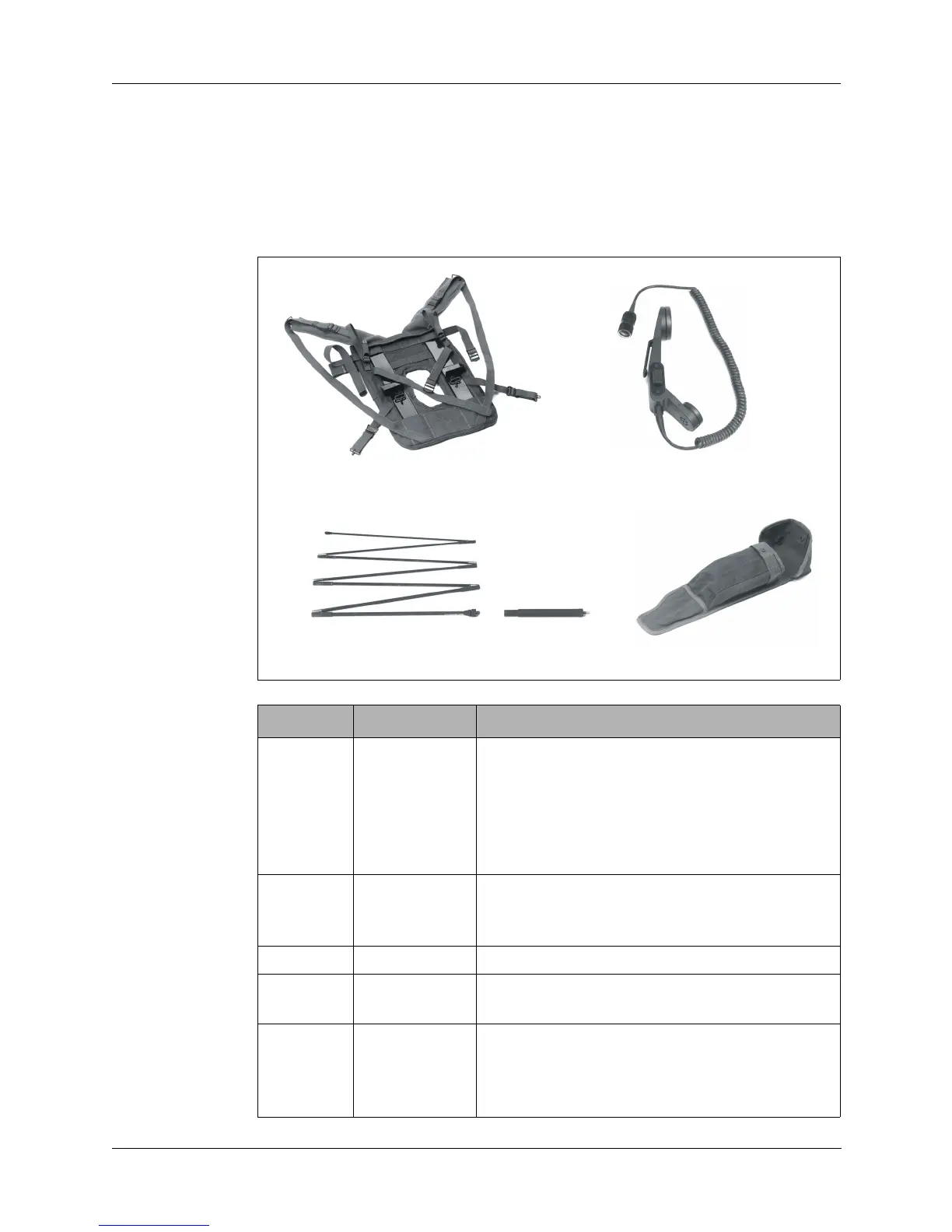

Manpack
Accessories
The following accessories are available as part of the PRC1099A manpack
configuration.
Item Part Number Description
Antenna AT-271A/U Each of six sections fits into end of wider
section. Braided plastic cord under spring
tension is threaded through sections to keep
them together during operation. When
sections are folded, the cable keeps them
together as a group.
Antenna
Support
AB-591/U Semi-flexible, tubular and main support for
AT-271A. Pin at base of support activates
internal antenna tuner.
Harness ST-138 Secures PRC1099A for carrying on back.
Cloth Bag CW-503 Storage for antennas, antenna support,
handset.
Handset H-250/U
MHS
Contains dynamic microphone and receiver
for transmitting and receiving signals. PTT
switch mounted in handle. Connecting cord
retractile, terminating in a five-pin connector.
Harness (ST-138)
Handset (H-250/U)
Cotton Duck Bag
(CW-503)
Support Antenna
AB-591/U
Antenna
(AT-271A/U)
