SETUP: INSTRUMENT CONFIGURATION
3.a.5 INPUT RANGE: RANGE KEY
Once you are in SETUP MODE, press the button labelled

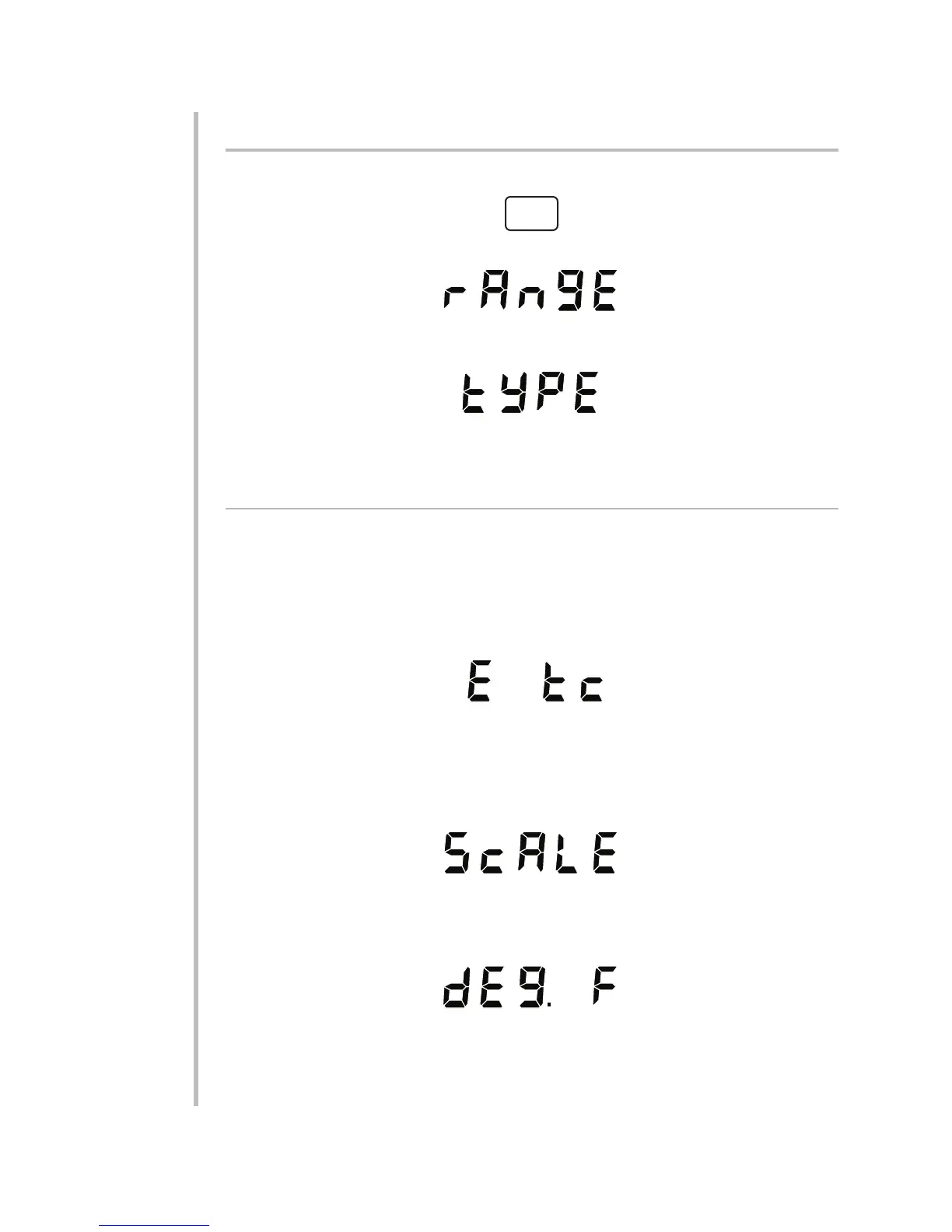

The unit will display the word "RANGE":
—unless it is a Model 3510 Thermocouple Conditioner, in which case it will dis-
play the word "TYPE":
NOW REFER TO THE SECTION BELOW THAT APPLIES TO YOUR SPECIFIC CON-
DITIONER MODEL.
3.a.5.a SETTING THE MODEL 3510’S TC TYPE AND SCALE
The Model 3510 Thermocouple Conditioner must be set to match the thermo-
couple type to which it is connected.
1. If, after pressing the RANGE button, you want to display the current TC Type
setting, press ENTER. Otherwise, press RANGE again and proceed to Step
4. If, for example, the conditioner is set for a "Type E" thermocouple, after you
press ENTER it will display
2. To change the TC Type setting, you can cycle forwards or backwards through
the allowed settings ("E," "J," "K," "R," "S," "T," and "B") by pressing the top or
bottom segment, respectively, of any digit display (even if it is blank).
3. When the desired TC Type appears, press ENTER. The unit will display the
word "SCALE":
4. If you want to display the current temperature scale setting, press ENTER.
Otherwise, press RANGE again and proceed to Step 7. If, for example, the
conditioner is set to read temperature measurements in degrees Fahrenheit,
when you press ENTER it will display
5. To change the temperature scale, you can cycle forwards or backwards
through the allowed settings ("degrees F" and "degrees C") by pressing the
top or bottom segment, respectively, of any digit display (even if it is blank).
3.a CONFIGURING THROUGH THE FRONT PANEL
RANGE
To Next Page
