A.1 GENERAL SPECIFICATIONS
(These specifications apply equally to all 3500 Series models.)
Physical: DIN package outline of extruded metal, with splash-resistant front
panel; secure rear connections via screw terminals. Instrument weight approx-
imately 3.25 lb (1.47 kg). For dimensions, see Fig. 25, below.
Power Requirements:
Input Voltage Range: 90-265 V-AC
Frequency Range: 50-400 Hz
Power In (Max): 10 W
Environmental:
ESD Immunity: Meets Class 3 Industrial Standard (8 kV) everywhere on the
case and on every line
Operating Temperature Range: 0° C to +50° C (+32° F to +122° F)
Storage Temperature Range: -40° C to +80° C (-40° F to +176° F)
Operating Humidity Range: 10 to 95% max, noncondensing
Display: 5-digit LCD reflective, non-light-emitting
A/D Conversion: 16-bit; approximately 1-kHz conversion rate; transparent auto-
calibration every 2 seconds
Digital Filtering selectable from front panel
Limits: Three limit zones ("HI," "OK," "LO") with front-panel annunciation and cor-
responding TTL-level logic outputs (outputs for HIGH and LOW limit conditions
can be latching or nonlatching). Each limit setpoint has a user-settable hys-
teresis window to prevent toggling of the limit output from signal noise.
Serial Communications: 9-pin RS-232/RS-485 Port (interface mode selectable
by node-number setting); standard baud rates up to 153.6K for both RS-232
A.1
3500 SERIES SPECIFICATIONS
A
A.1 GENERAL SPECIFICATIONS
Appendix A
3500 Series Specifications
.23
7.21
1.17
.33
.23
SET UP
PEAK
TRACK
TARE
RESET
PRINT ENTER
HI
OK
LO
COM
RANGE
CAL FILTER ANO
DEC
LIMIT
Allow 2.5 in.
(6.4 cm) in
rear for cable
bend
DIMENSIONS
IN INCHES/CM
.13 .09
2.84
14.43
5.68
16.76
6.60
.46 .09

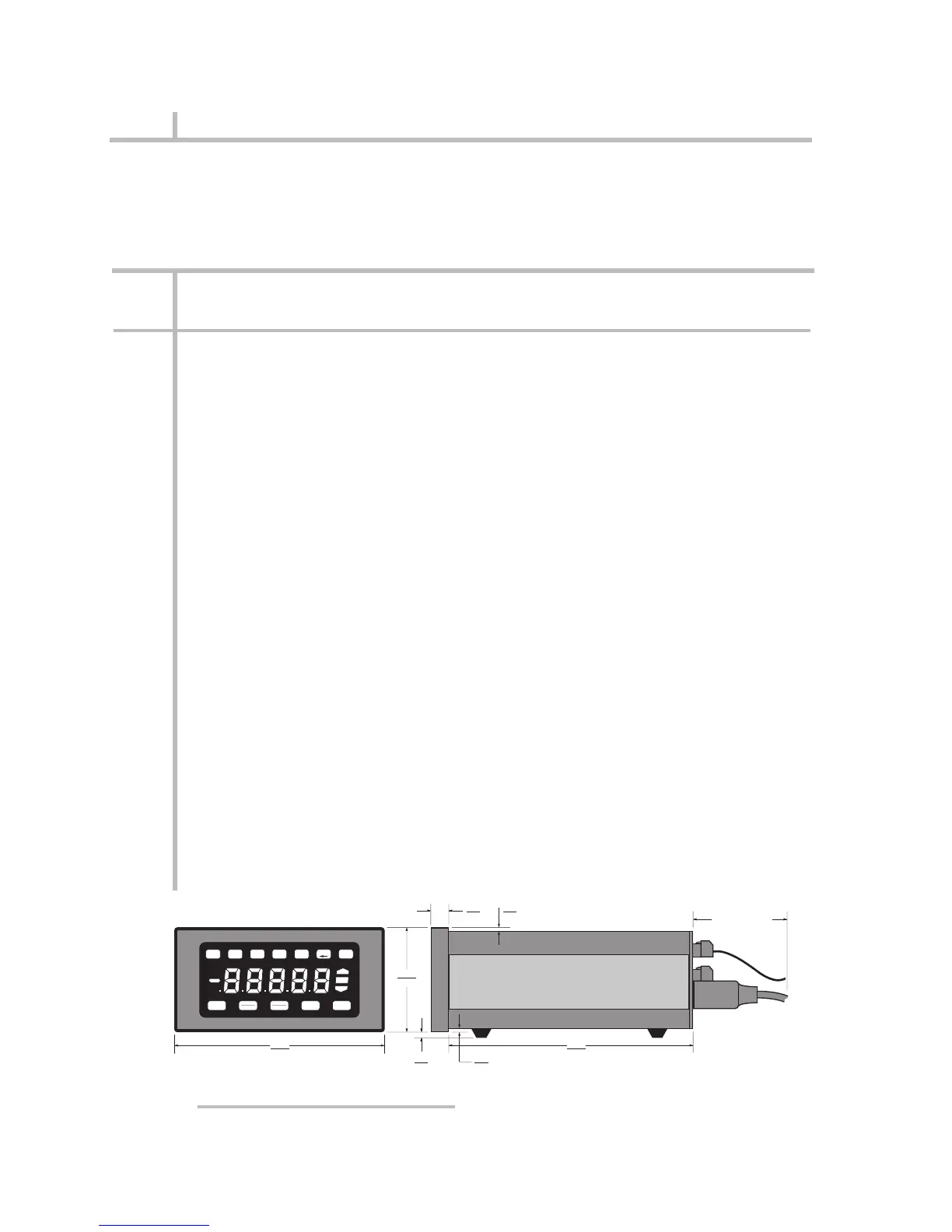

Fig. 25 3500 Physical Dimensions
