PRELIMINARY
A. To Remove The Cooktop
Cooktop removal is required for:
• Gas piping inspection
• Wiring service
• Valve replacement
• Jet holder service
• Manifold service
• Indicator light replacement
• Bezel replacement
To remove the cooktop:
1. Remove the valve knobs.
2. Remove the burner caps and main
burner head (brass).
3. Remove the brass nut using a 1-1/16″
socket or adjustable wrench and lift the
burner ring from the assembly.
4. Remove the large brass orifice tube from
the center of each burner base using a
25/32″ socket.

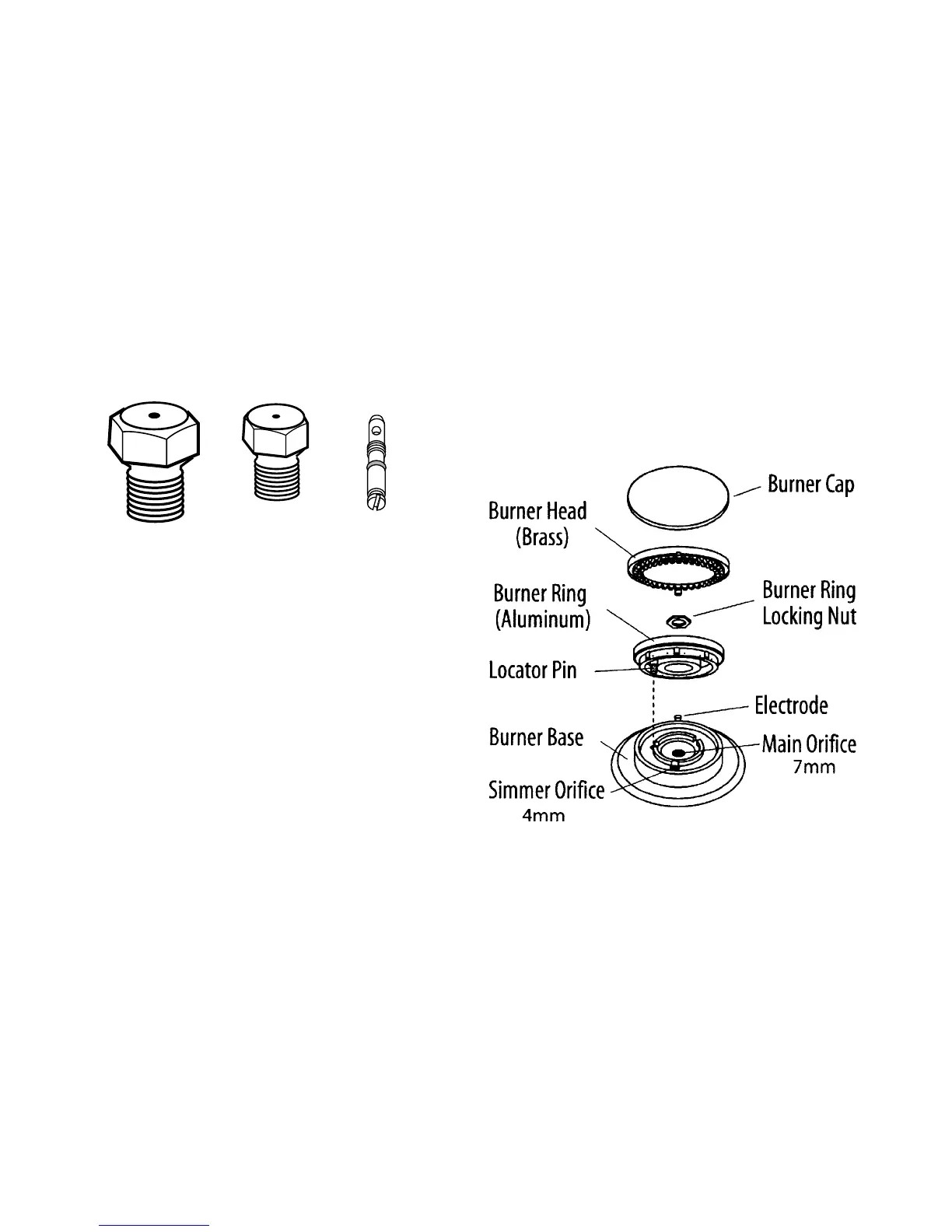

Main Jet
Simmer Jet
Valve
Bypass Jet
5. Lift each burner base and disconnect the
push-on wire terminal from the spark
electrode. Place the burner base assem-
blies in a safe place.
6. Raise the cooktop front about 6″ and
disconnect the 6 pin connector under
the cooktop adjacent to the left front
valve.
7. Push the spark electrode wire through
the holes in cooktop.
8. Pick the cooktop straight up and place
in a safe area where it will not be
scratched or accidently knocked over.
9. To reinstall the cooktop, reverse the pro-
cedure.
2. REPLACE ALL BURNER
AND VALVE ORIFICES
