G3
™
User’s & Installation Manual
7/October/2020
57

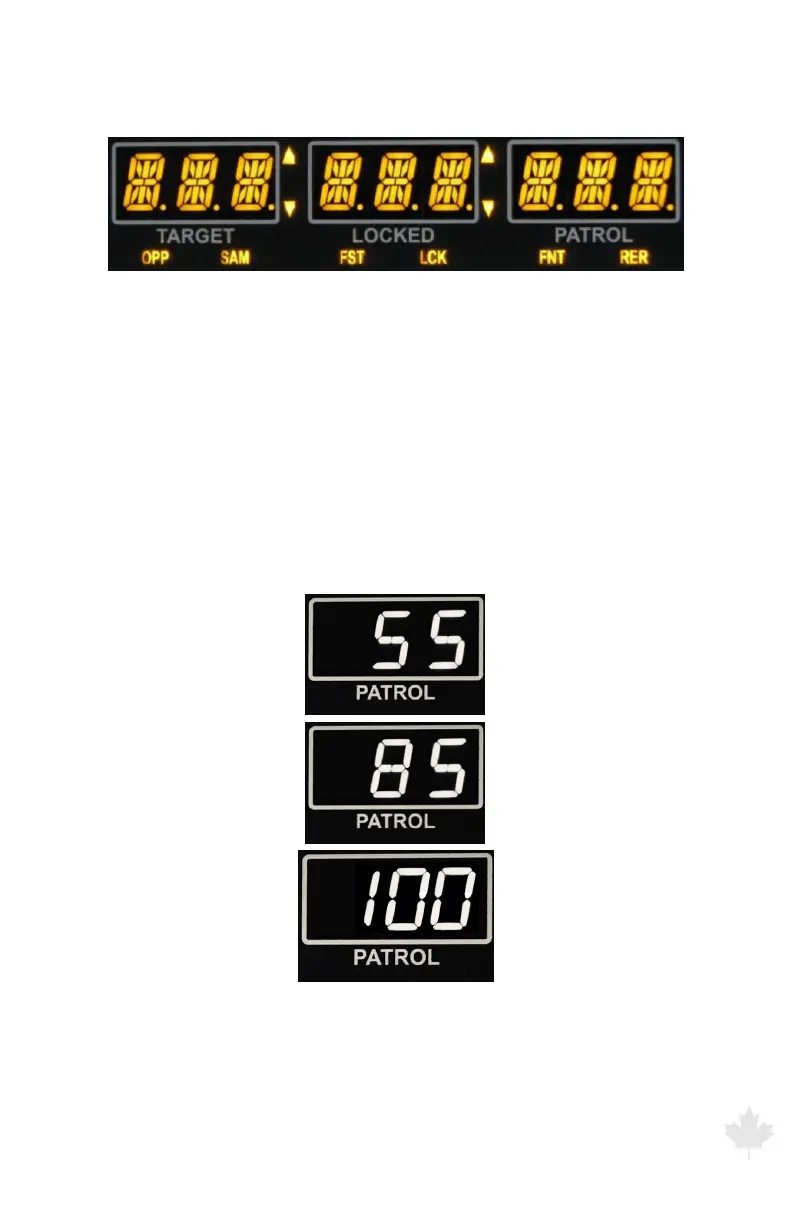

Successful LED test
Figure 9.1a
All LED segments show for sucessful LED testt
SPEED SIMULATION TEST: The G3™ veries the speed accuracy
using a series of synthesized Doppler frequencies corresponding to
simulated speeds: A patrol speed sequence of 55, 85 and 100 km/h is
processed rst followed by a target test sequence of 40, 70, 100 and
130 km/h.
Patrol speed test sequence of 55, 85 and 100.
Figure 9.1b
PATROL test sequence
