Decatur Electronics G3 - Stationary Mode Operations

G3
™
User’s & Installation Manual
7/October/2020
26
3.3 Stationary Both Mode
You can use Stationary Both Mode to monitor trac that is moving
toward or away from the parked patrol motor vehicle.

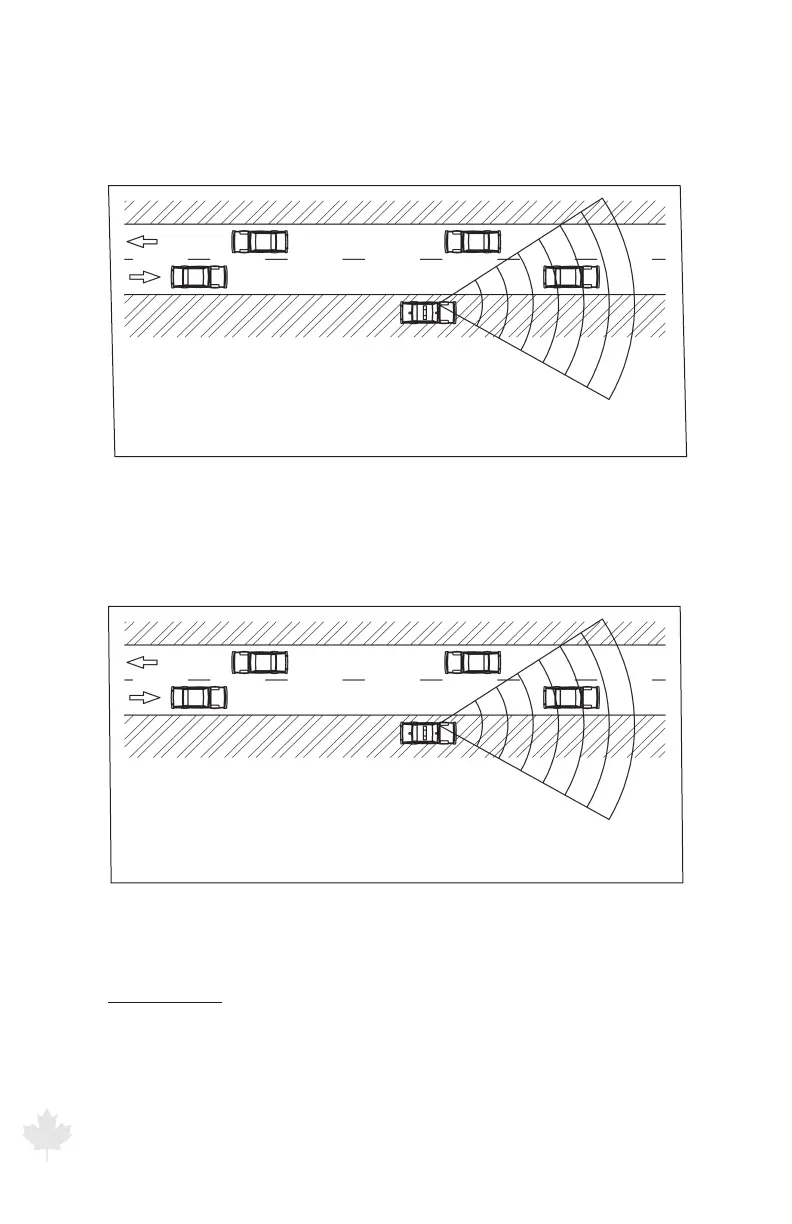

Figure 3.3a
Tracking a target motor vehicle with a parked patrol motor vehicle in Stationary
Mode.
3.3.1 Using Directional Antennas
When using the directional antenna that come standard with the
G3™, you can use Stationary Approach Only or Stationary Recede
Only Modes to isolate trac in a one direction only.
Figure 3.3.1a
Tracking a motor vehicle RECEDING away from a stationary patrol motor vehicle
with the radar in Stationary Mode using the FRONT antenna.
There are three selections for stationary mode:
Stationary All
Tracks all motor vehicles approaching or receding away from the
patrol motor vehicle.
