You can mount the computer/display unit behind and to the side of
the steering wheel or on the dashboard. The computer unit easily
withstands and remains accurate in temperature extremes. Dash-
mounting the unit promotes safety; you can read the display without
taking your eyes o the road.
To mount the unit, use the Velcro™ fastening material or the
mounting bracket. Before applying the Velcro™, use a clean cloth
to remove any foreign material from the dashboard and bracket
face. Position the Velcro™ lightly on the computer/display unit and
mounting surface.
After the unit is in the correct position, press it rmly to ax it to the
surface. For the bracket mount, simply place and tighten the screws
on the mounting bracket into the holes in the unit. Then adhere
the suction cups to a clean glass surface. For maximum adhesion,
moisten the suction cups before axing them to the surface.
There are ve locations where cables connect to the rear panel of
the computer unit. Four are quick-disconnect connectors, and a fth
is a nine pin DB-9 connector. The color coded circle around each of
the quick-disconnect connectors corresponds to a color band on the
cable that connects to them.

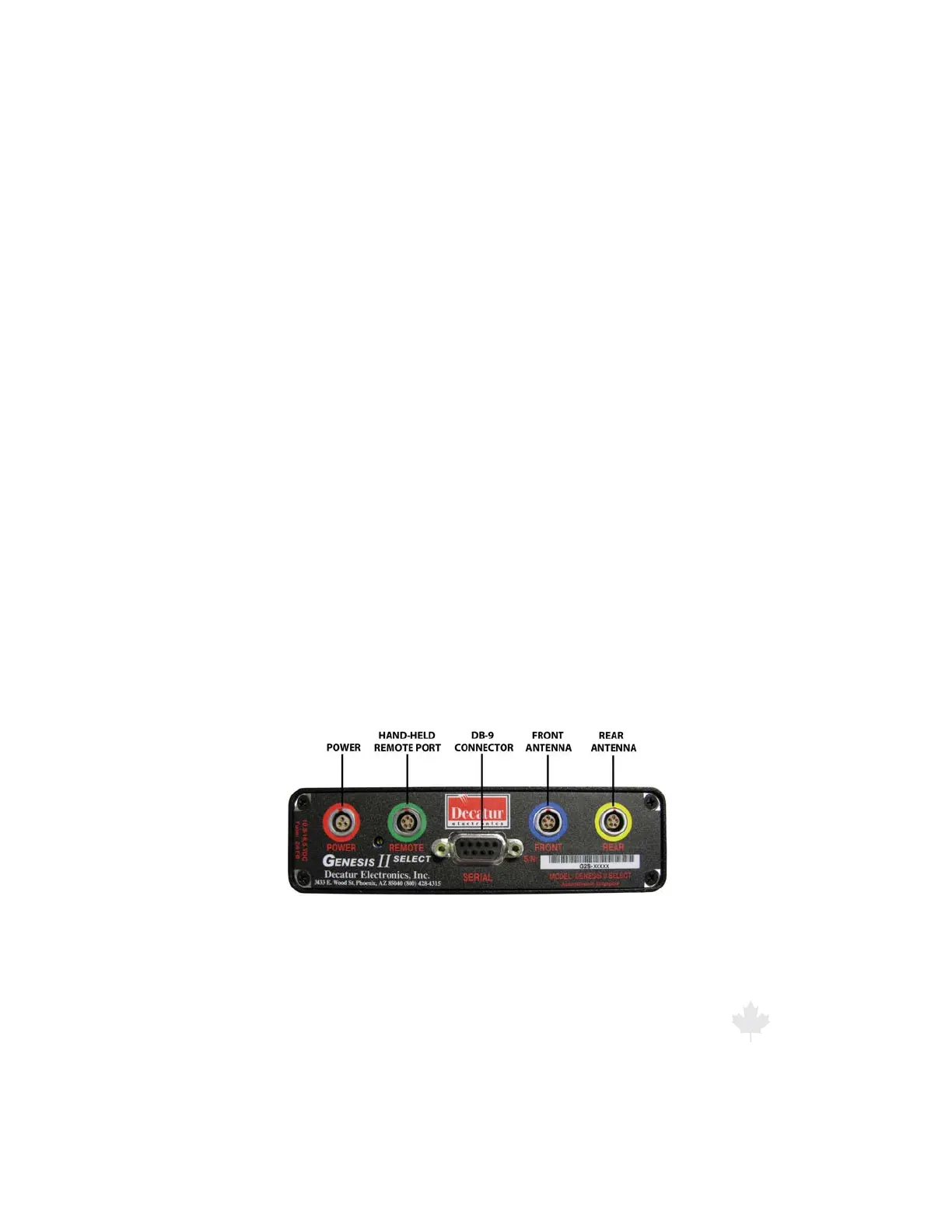

Figure 2.2a
The quick-disconnect connectors plug into
the computer unit in the above locations.
