8

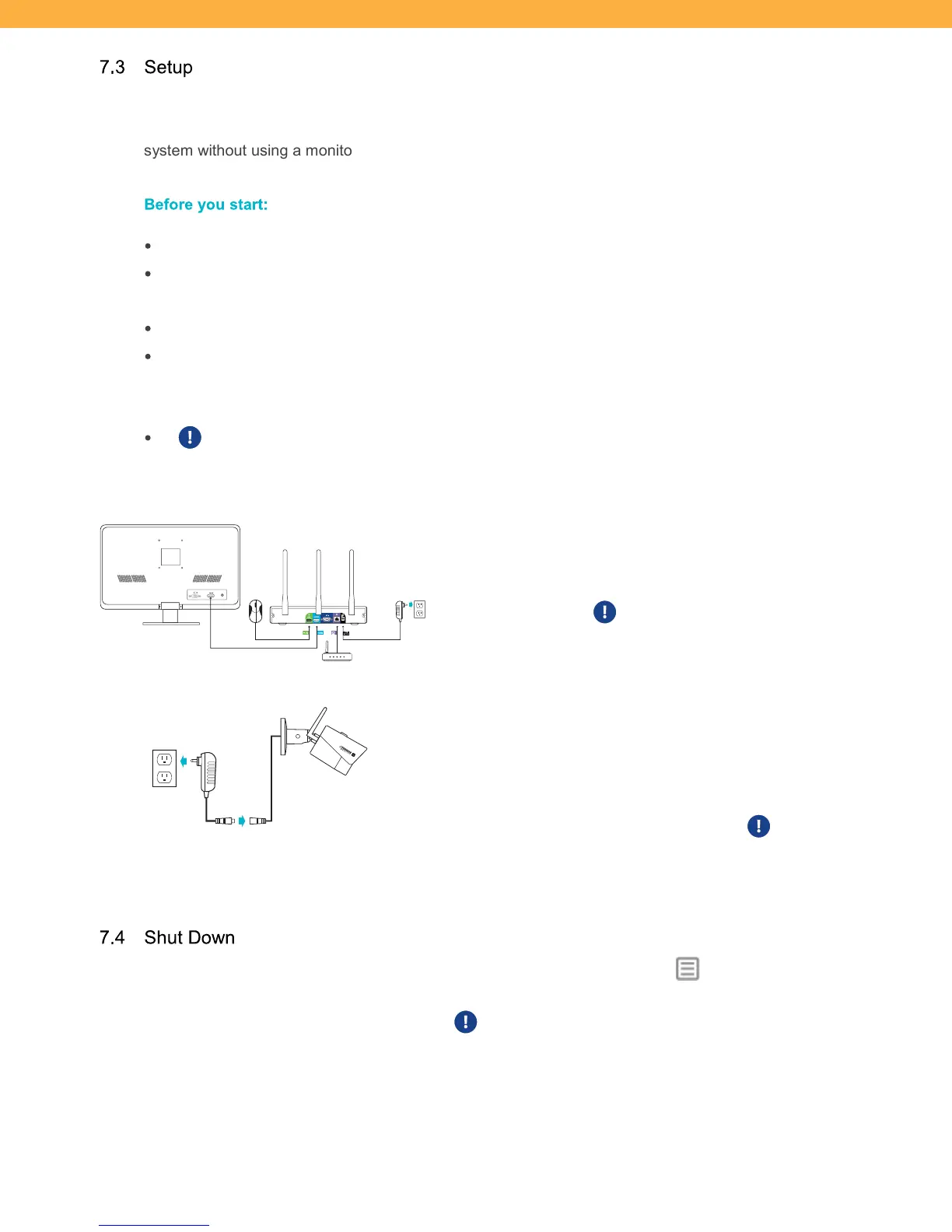

7.3 Set up
This setup method requires a monitor/TV with an HDMI or VGA connection (not included). To setup the
system without using a monitor/TV, see the SmartSignal Mobile App manual.
Be for e you start:
Ensure all components are included in your kit
You will need a monitor/TV with an HDMI or VGA connection (not included) – ensure the monitor/TV is
turned off when connecting the NVR
Before installing your cameras, test all connections during setup
Ensure that you have enough power outlets for the monitor/TV, cameras, and NVR unit. Your NVR
needs to be setup near your modem/router – you will need to connect your NVR unit to your
modem/router using the Ethernet cable (included).
Connections may vary by model
All cables and wires are labeled and colour coded to the NVR
unit to make connecting your system easy.
1. Connect the following components to your NVR:
A. Monitor/TV leave the monitor/TV powered off
until the NVR is turned on
B. Modem/Router
C. Mouse
D. NVR Power Supply
2. Plug the NVR unit into a power outlet and the unit will turn
on automatically.
3. Turn on the monitor/TV
4. Plug each camera into a power supply it is important
to test each camera bef
ore installing
5. Follow the Setup Wizard on-screen instructions
7.4 Shut Down
1. Right click the mouse anywhere on the screen to open the Quick Menu: MAIN MENU >
OPERATION > SHUT DOWN
2. Click Shut Down to turn the system off. To turn the system back on unplug the power adapter
and plug it back in, the NVR unit will power back on automatically.
