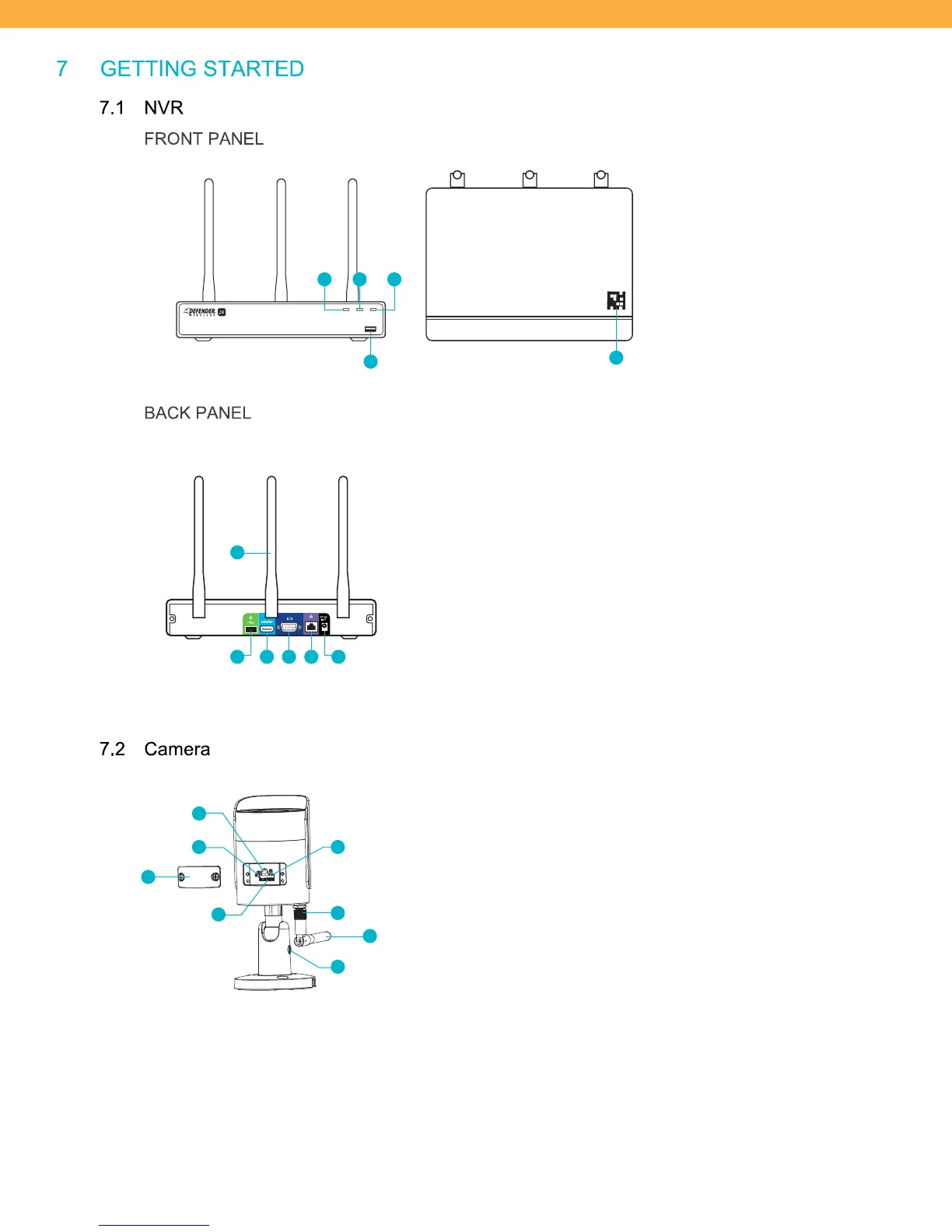

7 GETTI NG ST AR TED
7.1 NVR
FRONT PAN EL
BAC K PAN EL
7.2 Camera
Cameras have an Ethernet cable attachment that is optional. Cameras can be connected using a CAT5
(RJ45) cable (not included) from the camera to your modem/router. This changes the connection to wired.
The camera should also be plugged into a power source using the power adapter (included).
1
Antenna
2
USB Mouse Port
3
HDMI Port
4
VGA (Monitor) Port
5
Ethernet Port
6
Power Adapter
1
Reset Button
2
Indicator Light
3
Lower Cover
4
Micro SD Card Slot
5
Indicator Light
6
Waterproof Ring
7
Antenna
8
Locking Screw
3
4
21
62
1
3
4
1
2 5
6
8
7
1 Hard Drive LED
2 Network LED
3 Power LED
4 USB Port
5 QR Code
