Dell EMC PowerEdge MX740c - Installing the M.2 BOSS Card

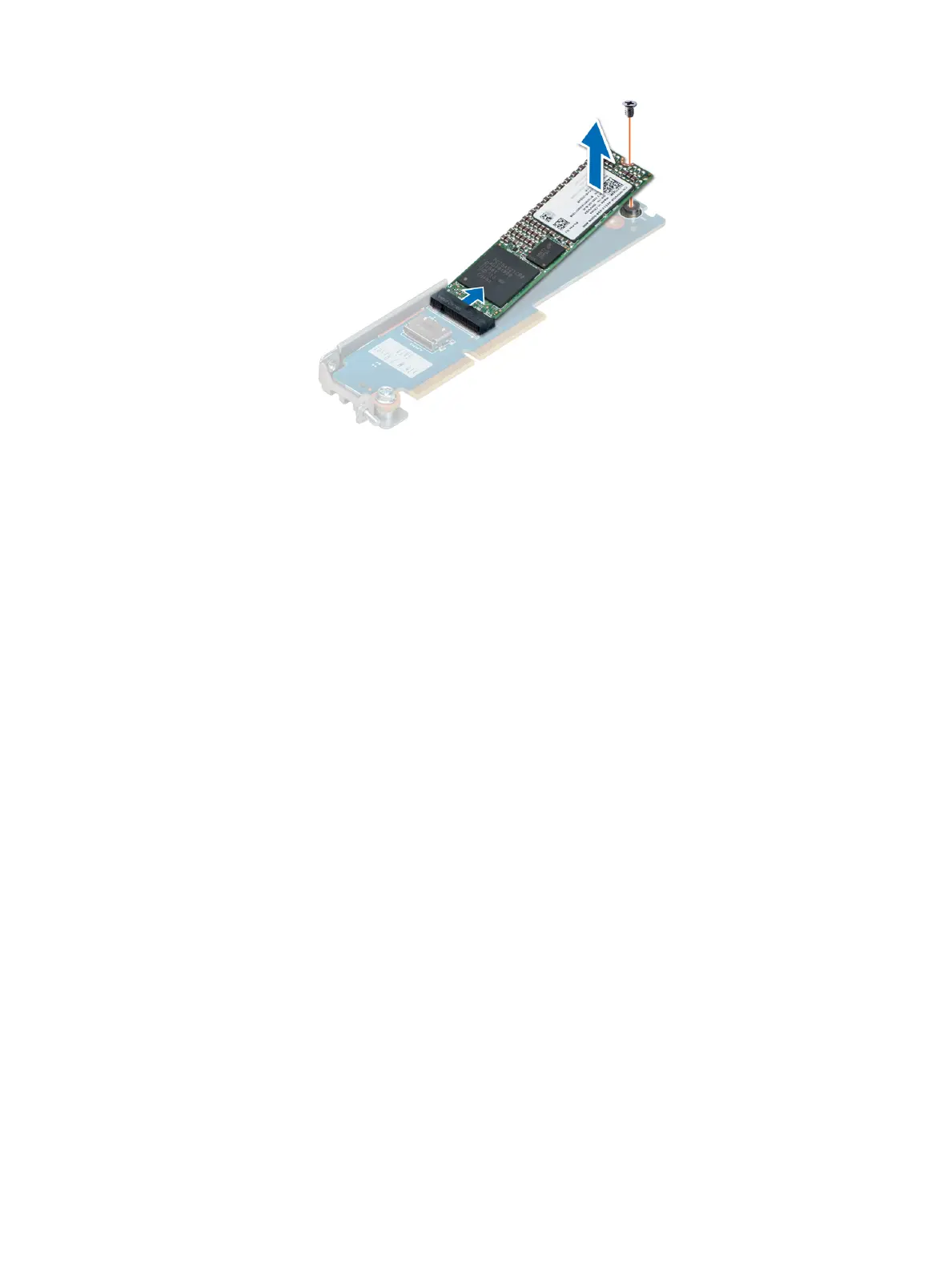

Figure 72. Removing the M.2 BOSS card
Next step
1 Install the M.2 BOSS card.
Installing the M.2 BOSS card
Prerequisites
1 Follow the safety guidelines listed in the Safety instructions.
2 Follow the procedure listed in the Before working inside your sled.
Steps
1 Align the M.2 BOSS card at angle of 45 degrees with the SATA connector on the M.2 BOSS module.
2 Press the M.2 BOSS card into the SATA connector until rmly seated in place.
3 Push down the M.2 BOSS card and using Phillips #1 screwdriver, secure the M.2 BOSS card to the module.
Installing and removing system components
99
