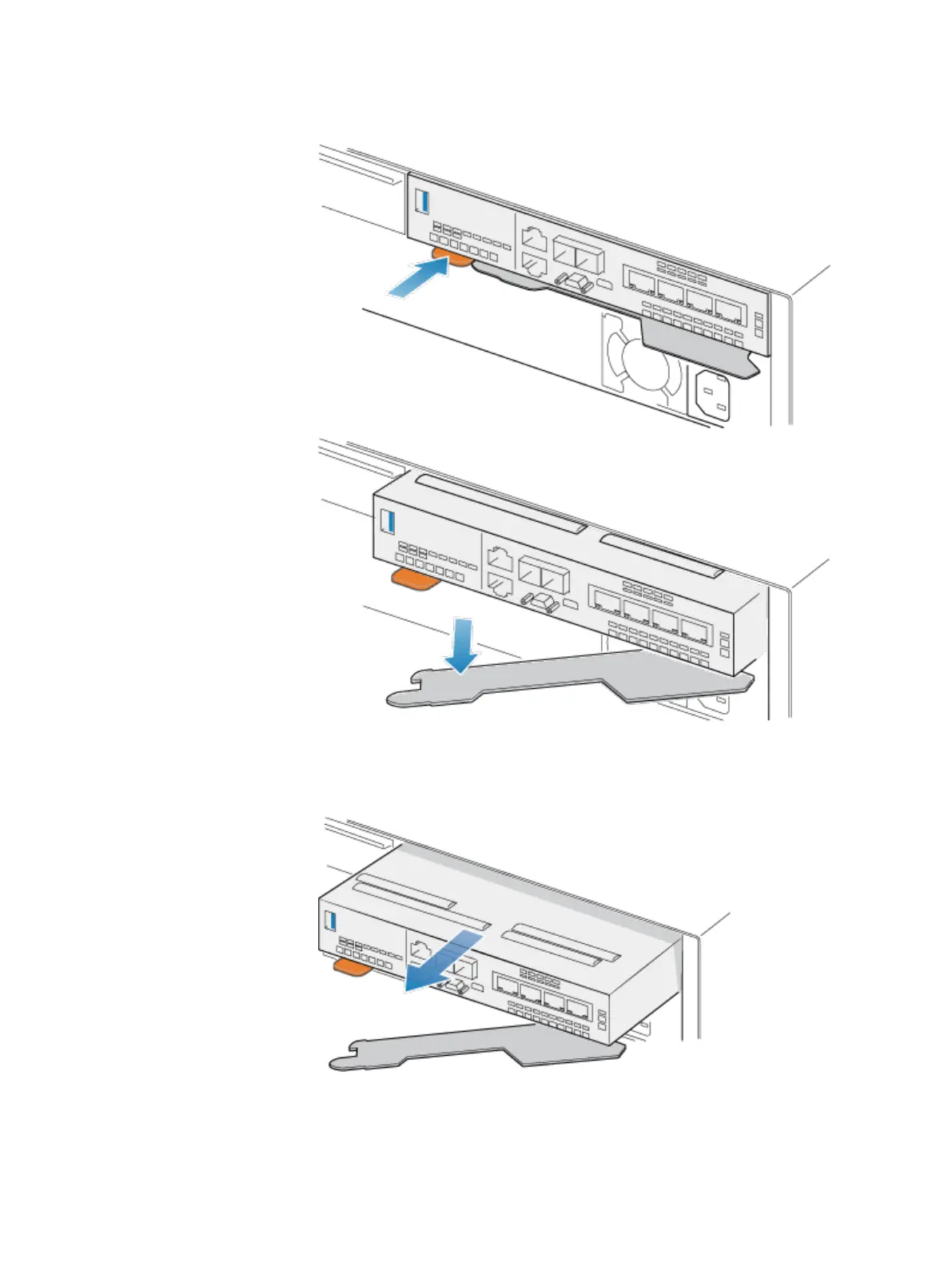

Figure 37 Releasing the lever on the embedded module
3. Pull the release lever away from the system. The embedded module releases
from the system as you pull the lever.
Figure 38
Removing the embedded module from the system
4. Remove the embedded module from the slot.
Service Procedures
52 Unity 480/F, Unity 680/F, Unity 880/F Installation and Service Guide
