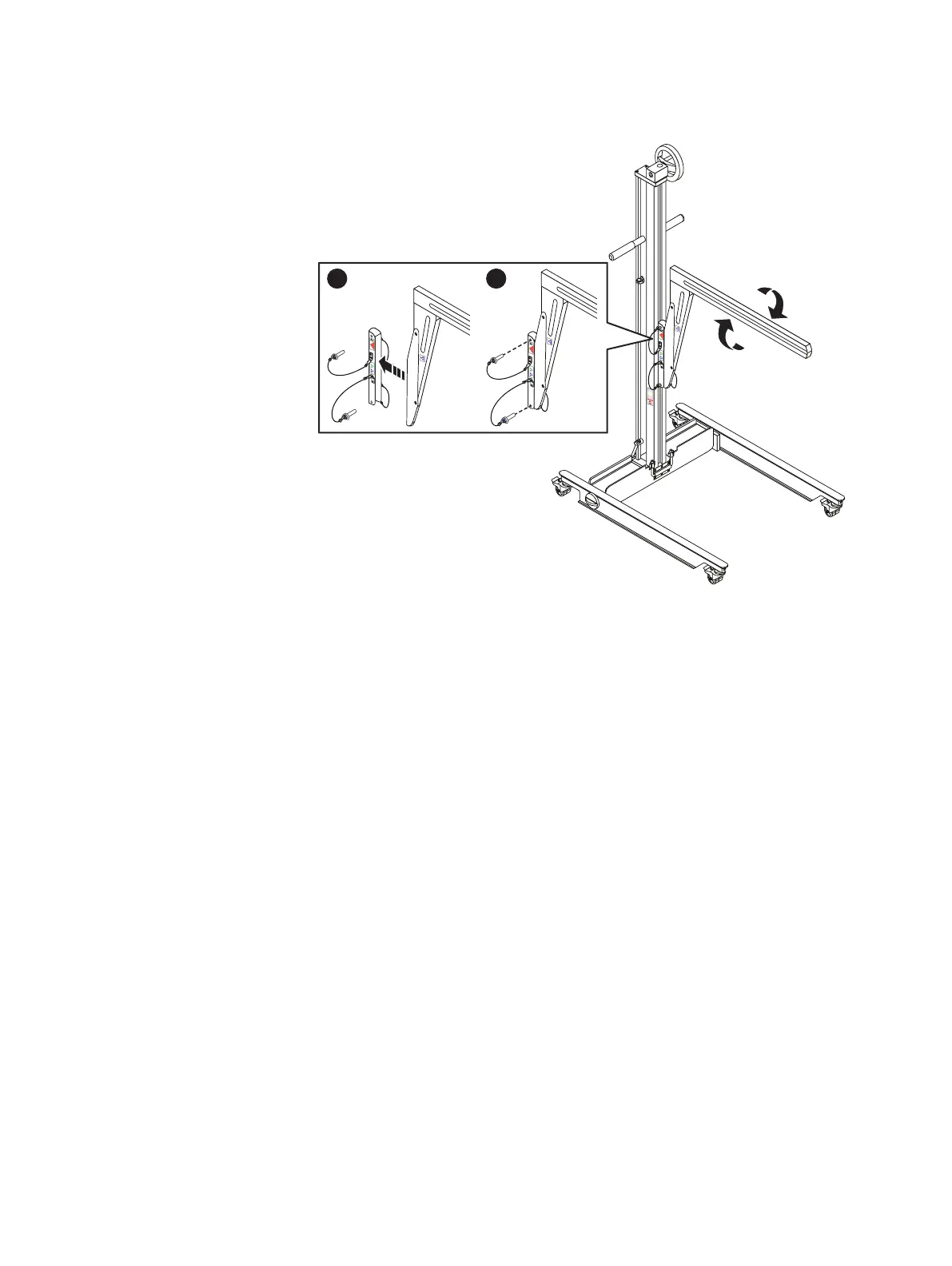

Figure 12 Adjusting the arm for a high rail position
CL5422
1 2
a. Remove the bottom ball lock pin first, by pressing the plunger on the pin and
pulling the pin out. It may be necessary to wiggle the pin with the plunger
pressed to free it from its mounting hole.
b. Hold the arm with one hand while pressing the plunger on the top ball lock
pin and pulling the pin out with the other hand. It may be necessary to wiggle
the pin with the plunger pressed to free it from its mounting hole.
The arm with the adaptor attached will be free of the lift chassis.
c. Remove the arm from the lift and reverse it to achieve the desired
orientation.
d. Attach the arm to the lift chassis by aligning the mounting holes, pressing
the plunger, and inserting the ball lock pins into the holes. Insert the top pin
first.
2. Remove the rotating handle (if necessary) by loosening the set screw and
pulling the handle from the hex fitting.
3. Install and configure the arm trays as required for the lift. Refer to Adjusting the
Portable Lift for more information.
4. Lock all four casters by pressing down on the locking tab so the lift will not roll
as the instrument is placed onto it. Refer to Locking the Casters
Field Upgrade Procedure
18 Unity All Flash and Unity Hybrid Field Upgrade Procedure
