Dell EMC Unity Series Field Upgrade Procedure

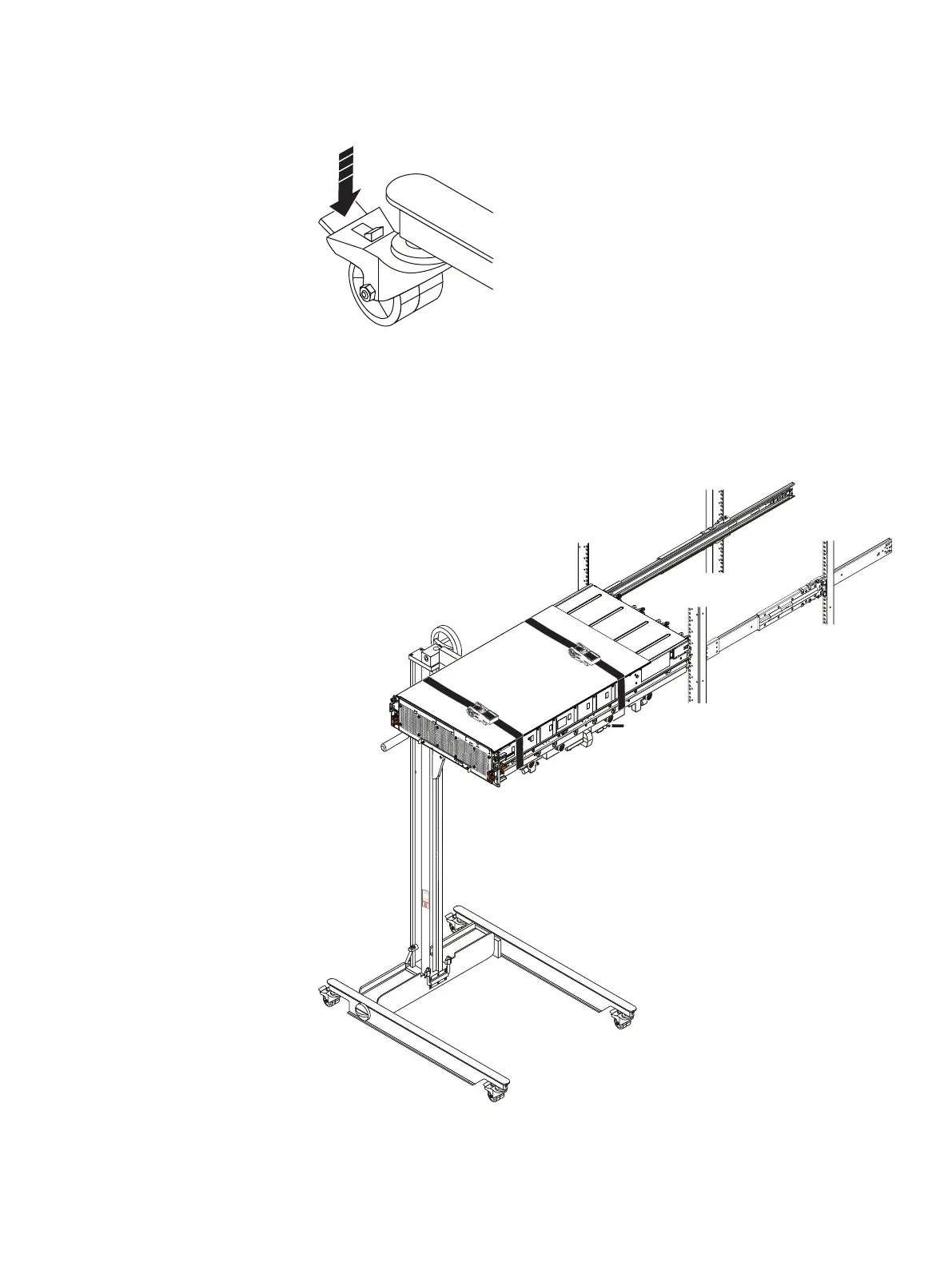

Figure 13 Locking the Casters
CL5423
5. Using the cordless drill that comes with the Voyager conversion kit, place the
cordless drill over the hex fitting and use the drill to raise or lower the arm to
the required height. With the enclosure extended from the rack on the rails, pull
the enclosure from the rails and onto the lift. Secure the enclosure to the
portable lift using the securing straps as follows:
Figure 14 Removing an enclosure from rails more than 49" above the floor
CL5431
a. Place the securing strap around the lift and the enclosure.
Adding an optional 80-drive DAE
Working with the portable lift 19

Dell EMC Unity Series Specifications

General

Snapshot Support	Yes
Storage Type	Hybrid Flash, All-Flash
Drive Support	SAS, SSD
Protocols	iSCSI, NFS, SMB
Data Services	Snapshots, Replication, Thin Provisioning, Deduplication, Compression
Management	Unisphere, REST API, CLI
Data Reduction Features	Deduplication, Compression
High Availability	Redundant components
Redundancy	power supplies, fans
RAID Levels Supported	RAID 5, RAID 6, RAID 10
Replication Support	Yes
Cloud Tiering	Yes
Security Features	Encryption at rest, secure erase, role-based access control
Model	Dell EMC Unity Series
