b. Insert the free end of the securing strap into the slot on the ratchet
mechanism. Pull the ratchet handle down to tighten the securing strap
around the lift and the enclosure. Refer to Tightening the Straps

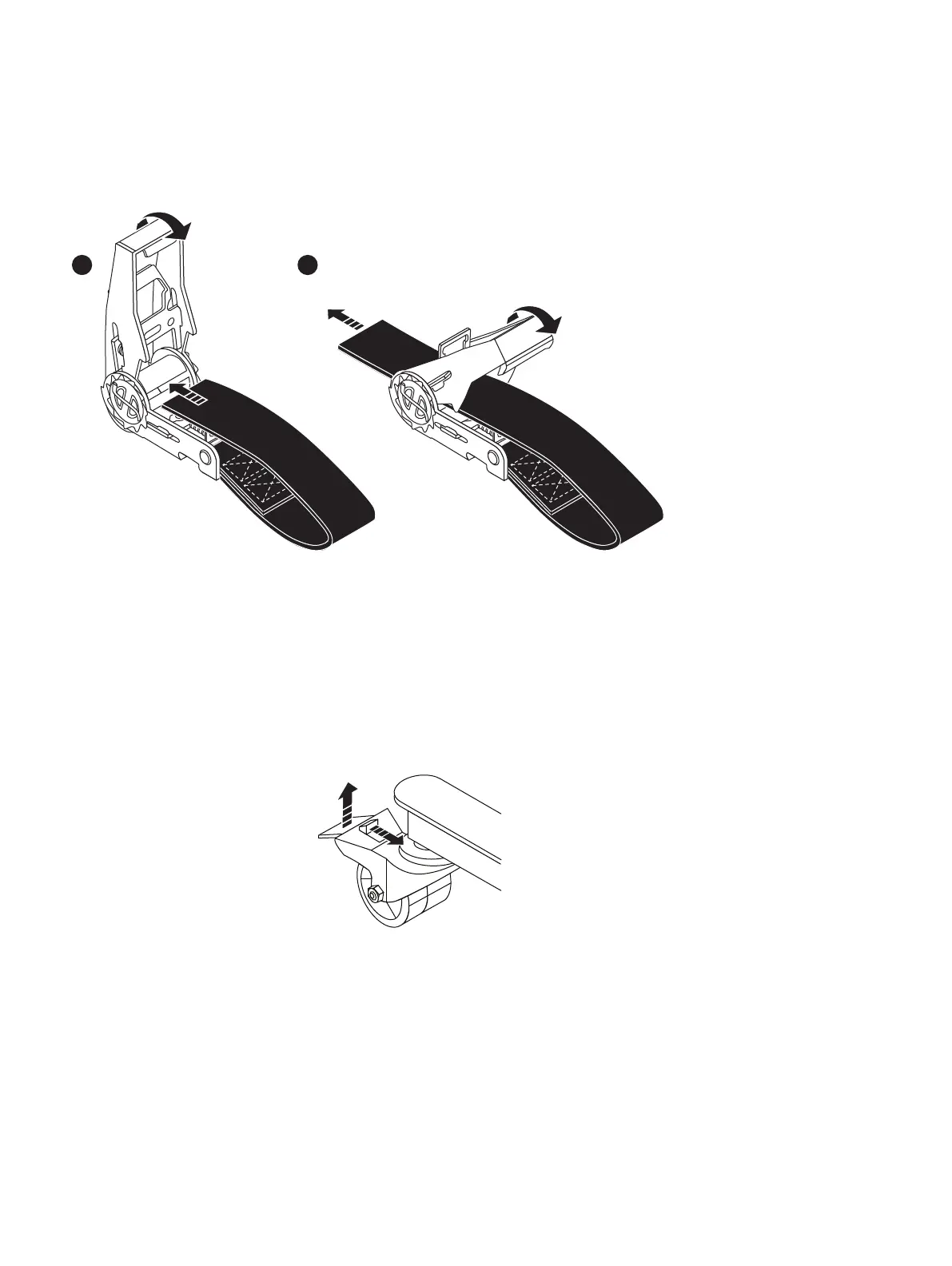

Figure 15 Tightening the Straps
c. Make sure the enclosure is securely strapped to the lift before moving. Use
the cordless drill to raise the arm to lift the enclosure from the support table.
Once the enclosure is supported by the arm, lower the arm to the lowest
point that still permits travel.
This allows the enclosure to be moved with minimal danger of tipping over.
6. Unlock the casters by lifting up on the locking tabs and move the enclosure as
required. Refer to Unlocking the casters
Figure 16
Unlocking the Casters
7. Move the enclosure to the support table. Use the drill to raise or lower the
enclosure above the support table. Move the enclosure over the support table,
and use the drill to lower the enclosure onto the table. Refer to Support Table
Field Upgrade Procedure
20 Unity All Flash and Unity Hybrid Field Upgrade Procedure
