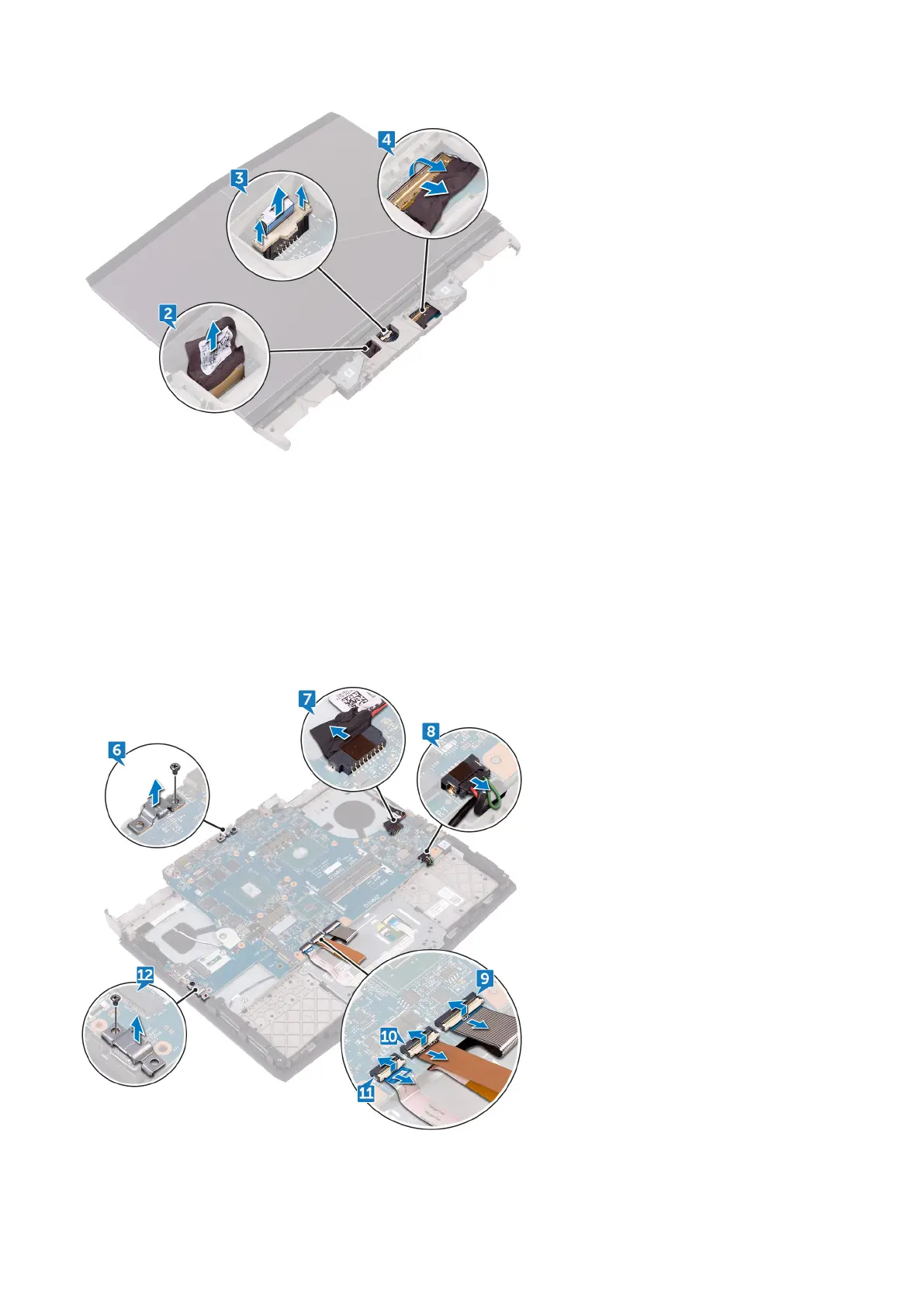

5. Turn the computer over.
6. Remove the screw (M2.5x6L) that secures the USB Type-C port bracket to the system board and lift the USB Type-C port
bracket off the system board.
7. Disconnect the power-adapter port cable from the system board.
8. Disconnect the speaker cable from the system board.
9. Open the latch and disconnect the keyboard cable from the system board.
10.Open the latch and disconnect the keyboard-backlight cable from the system board.
11. Open the latch and disconnect the touch-pad cable from the system board.
12. Remove the screw (M2.5x6L) that secures the USB Type-C port bracket to the system board and lift the USB Type-C port
bracket off the system board.
13. Remove the two screws (M2.5x6L) that secure the system board to the palm-rest assembly.
14. Lift the system board off the palm-rest assembly.
