Removing the keyboard
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps
in Before working inside your computer. After working inside your computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/regulatory_compliance.
Topics:
• Prerequisites
• Procedure
Prerequisites
1. Remove the base cover.
2. Remove the
wireless card.
3. Remove the solid-state drive.
4. Remove the memory modules.
5. Remove the rear-I/O cover.
6. Remove the computer base.
7. Remove the coin-cell battery.
8. Remove the
heat-sink assembly.
9. Remove the battery.
10.Remove the system board.
11. Remove the speakers.
12. Remove the power-button board .
Procedure

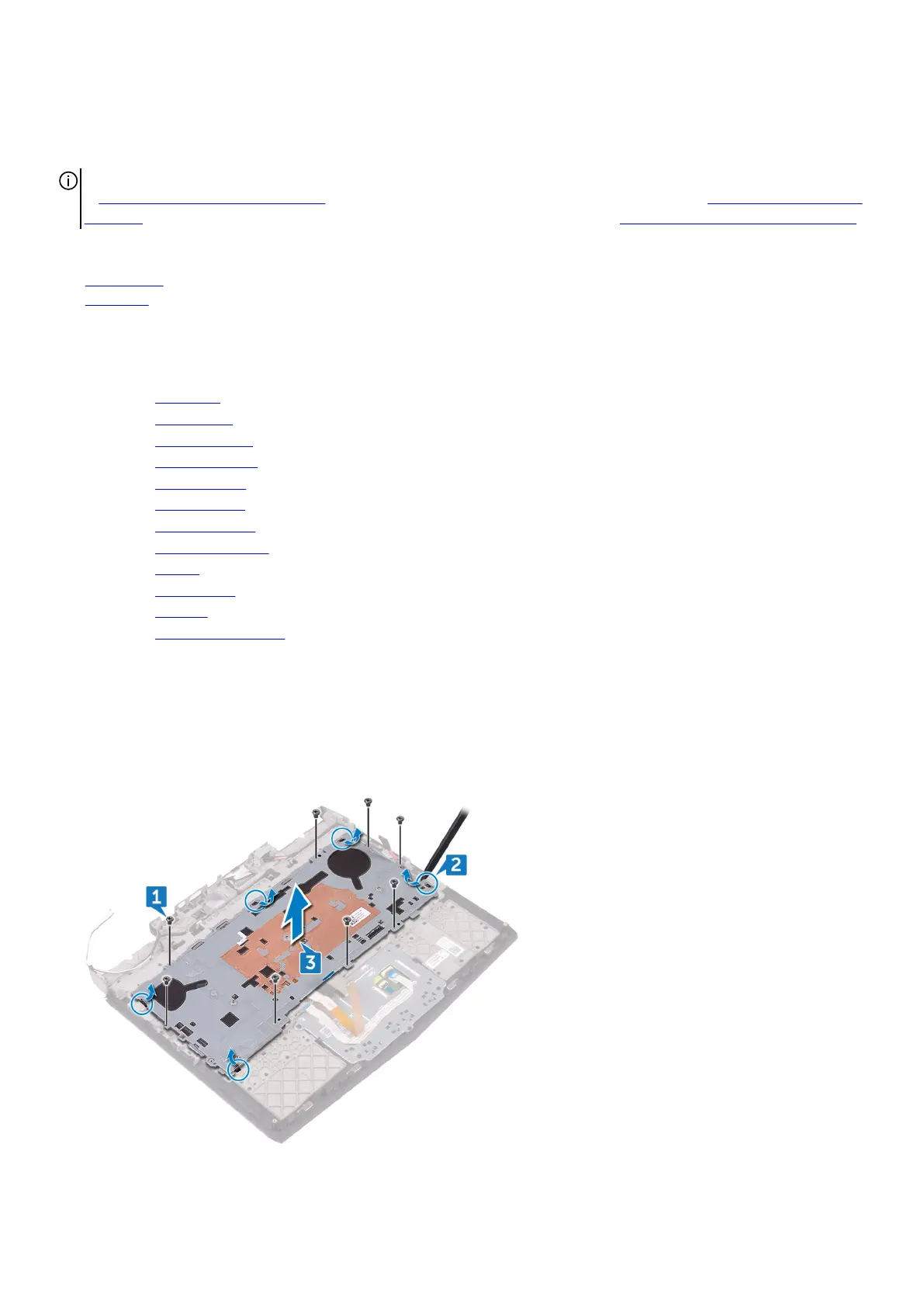

1. Remove the eight screws (M2x3) that secure the keyboard bracket to the palm-rest assembly.
2. Using a plastic scribe, pry the keyboard bracket off the palm-rest assembly.
3. Lift the keyboard bracket off the palm-rest assembly.
4. Lift the keyboard at an angle and remove it from the tabs on the palm-rest assembly.
