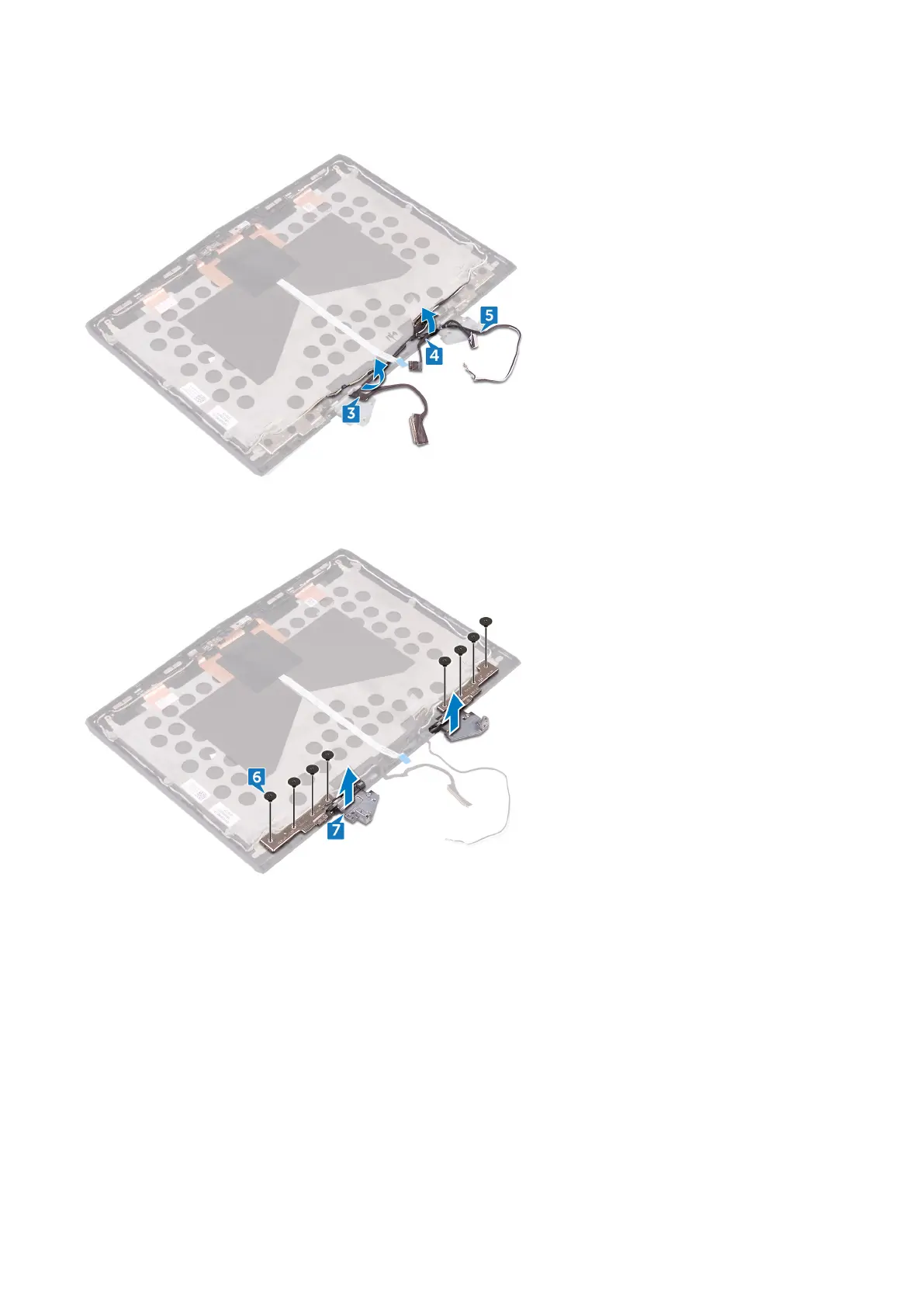

4. Remove the logo-board cable from the routing guide on the display back-cover and antenna assembly.
5. Remove the antenna cables from the routing guide on the display back-cover and antenna assembly.
6. Remove the eight screws (M2.5x2.0L) that secure the hinges to the display back-cover and antenna assembly.
7. Lift the hinges from the display back-cover and antenna assembly.
66
