CHAPTER 3: CHASSIS
1
2

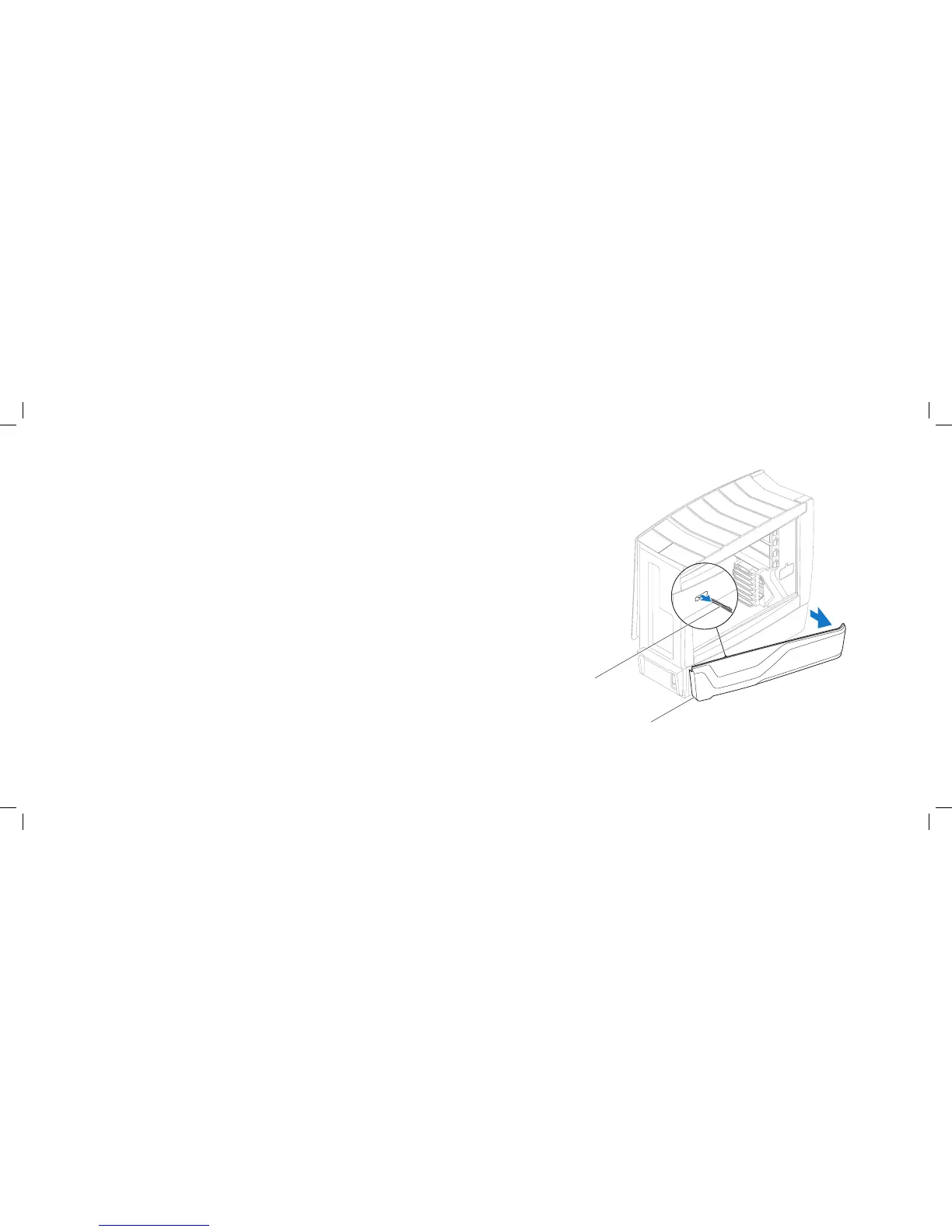

1 left bottom-panel cable 2 left bottom-panel
Removing the Left Bottom-Panel
Follow the instructions in “Before You Begin” on page 1. 6.
Remove the left side-panel (see “Removing the Left Side-Panel” on page 2. 15).
Disconnect the left bottom-panel cable from the SIDE_LEFT connector on 3.
the master I/O board.
Press out to release the left bottom-panel clamps that secure the left 4.
bottom-panel to the chassis.
Remove the left bottom-panel.5.
Replacing the Left Bottom-Panel
Follow the instructions in “Before You Begin” on page 1. 6.
Route the left bottom-panel cable through the chassis and connect it to the 2.
SIDE_LEFT connector on the master I/O board.
Align the left bottom-panel clamps with the clamp inserts on the chassis.3.
Push the left bottom-panel towards the chassis until the left bottom-panel 4.
clamps snap into place.
Replace the left side-panel (see “Replacing the Left Side-Panel” on page 5. 15).
Connect your computer and devices to electrical outlets, and then turn 6.
them on.
