CHAPTER 9: FANS
1
2

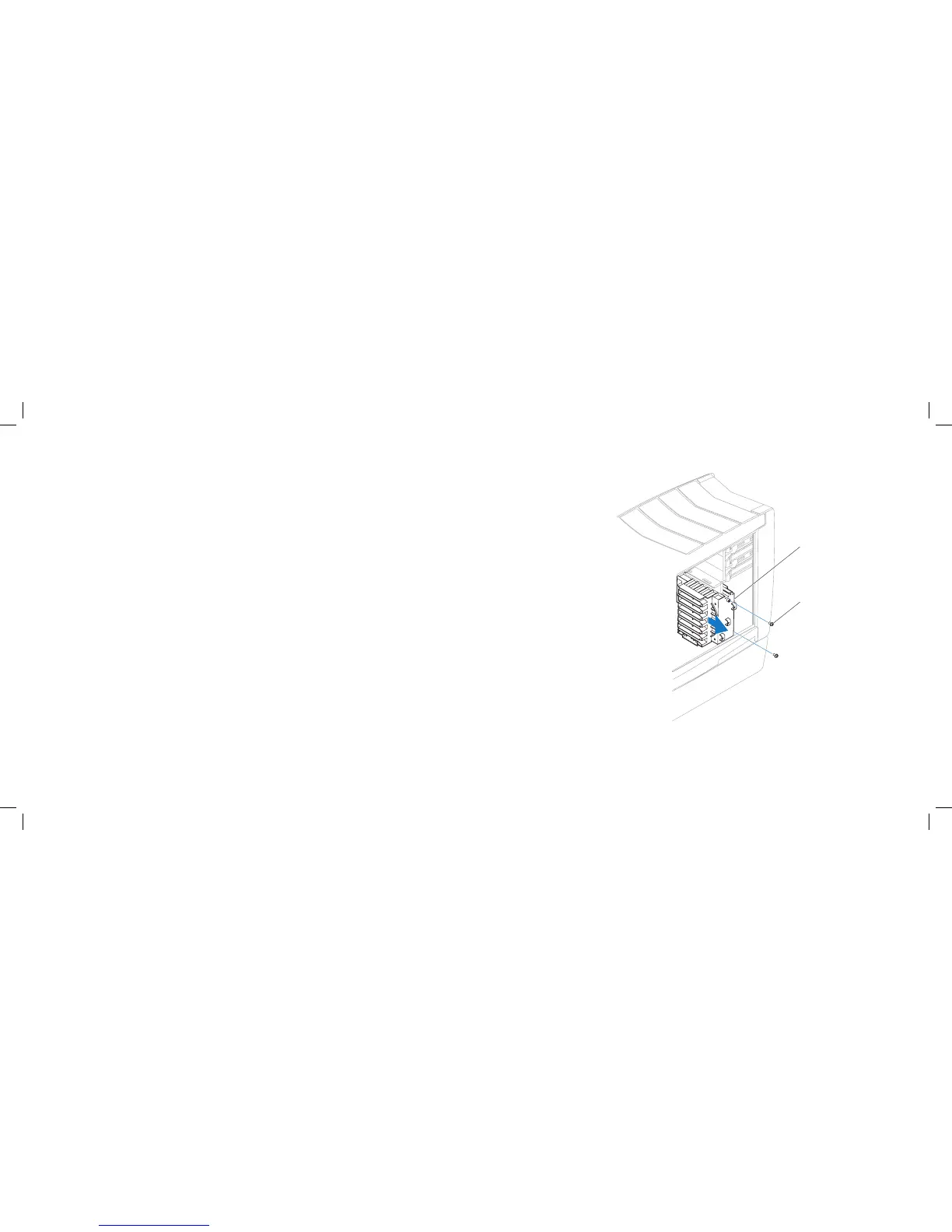

1 PCI-fan shroud 2 screws (2)
Removing the PCI Fan
Follow the instructions in “Before You Begin” on page 1. 6.
Remove the left side-panel (see “Removing the Left Side-Panel” on page 2. 15).
Remove the drive-bay shroud (see “Removing the Drive-Bay Shroud” on 3.
page 23).
Disconnect the PCI-fan cable from the PCI_FAN1 connector on the master 4.
I/O board (see “Master I/O Board Connectors” on page 12).
Remove the two screws that secure the PCI-fan shroud to the chassis.5.
Slide the PCI-fan shroud out of the chassis.6.
